Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Valve Body
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

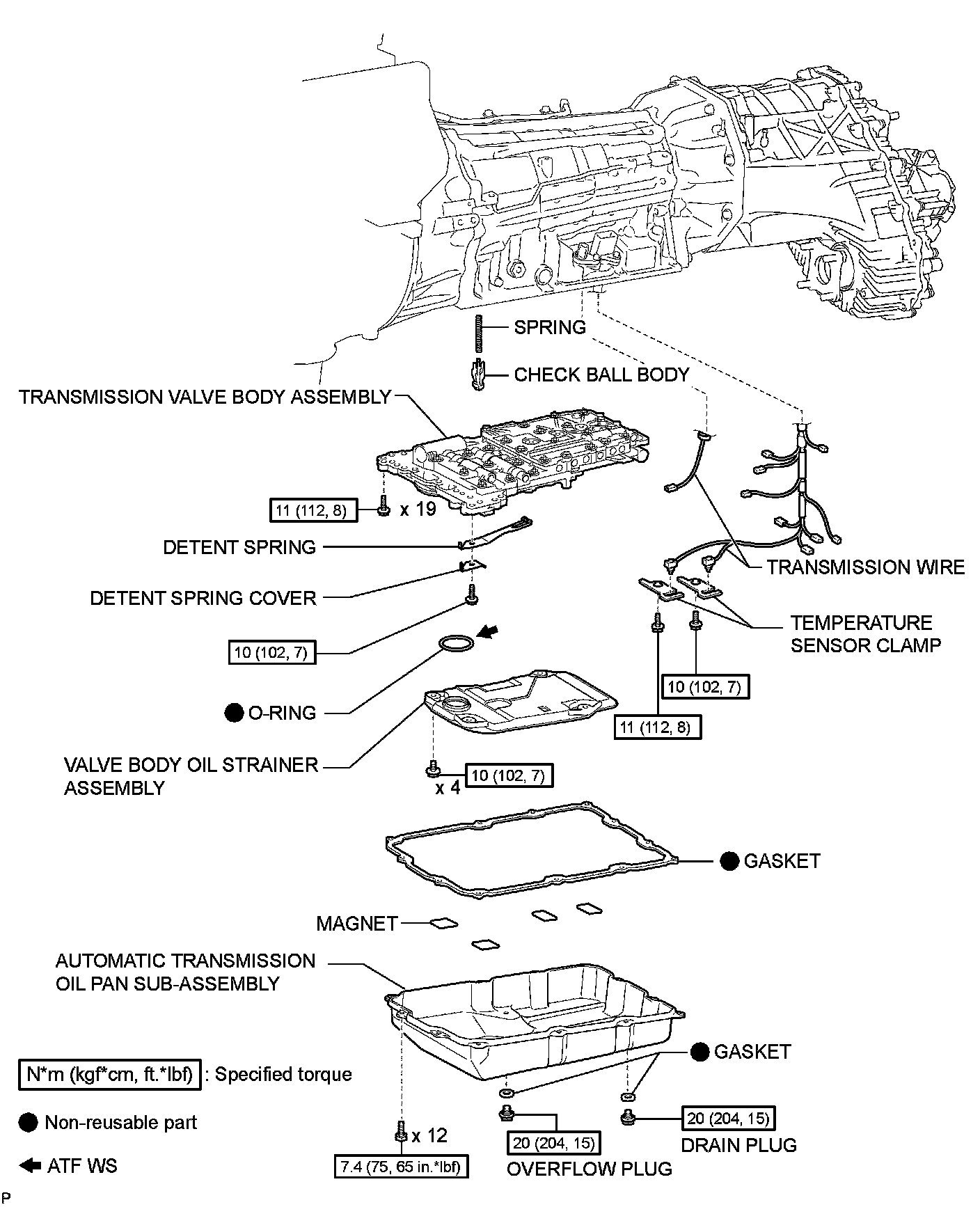

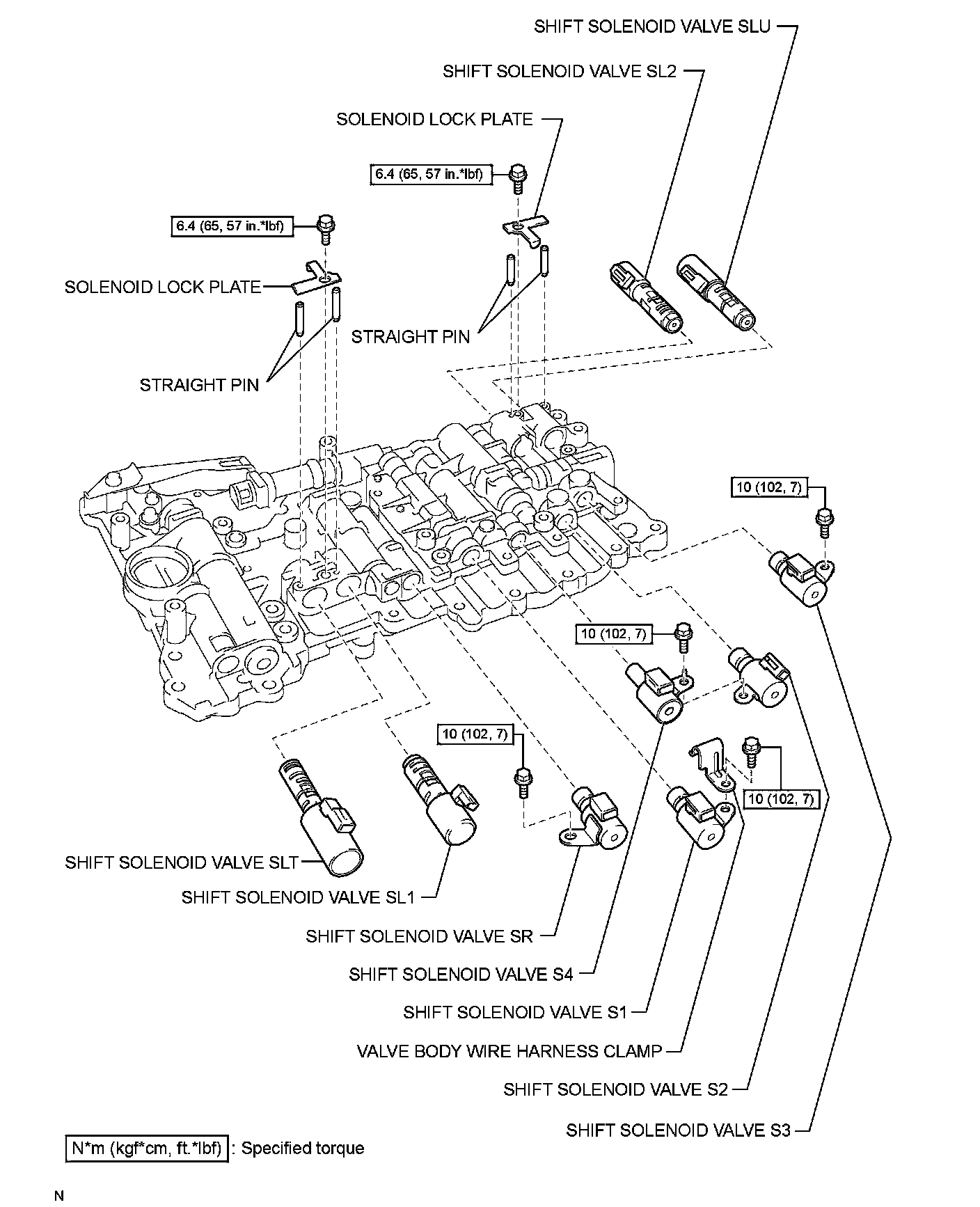

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: COMPONENTS
