Reassembly

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

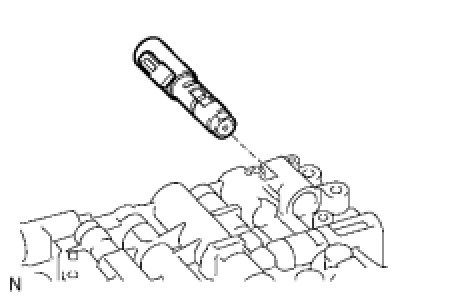

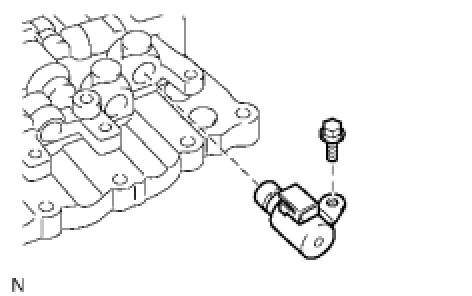

1. INSTALL SHIFT SOLENOID VALVE S3






(a) Install the shift solenoid valve with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

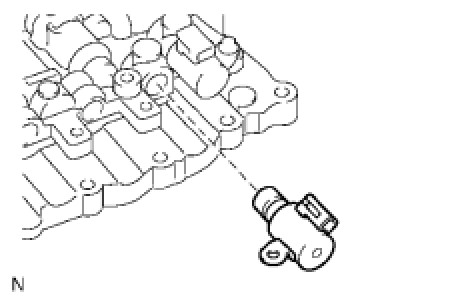

2. INSTALL SHIFT SOLENOID VALVE S2






3. INSTALL SHIFT SOLENOID VALVE S4
(a) Install the shift solenoid valve with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

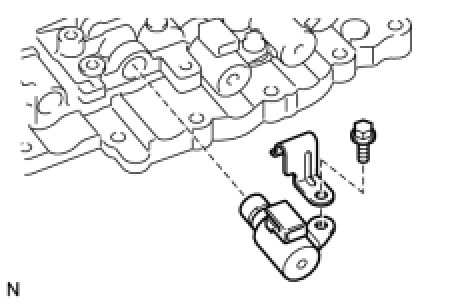

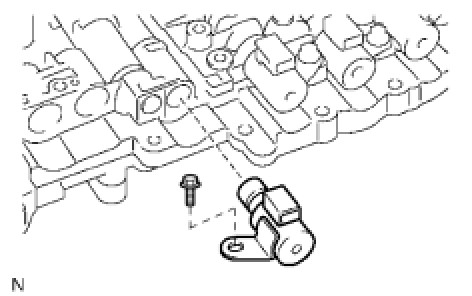

4. INSTALL SHIFT SOLENOID VALVE S1
(a) Install the shift solenoid valve and valve body wire harness clamp with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

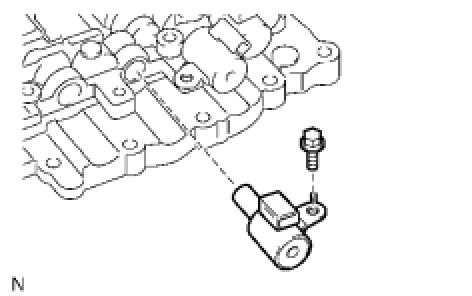

5. INSTALL SHIFT SOLENOID VALVE SR






(a) Install the shift solenoid valve with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

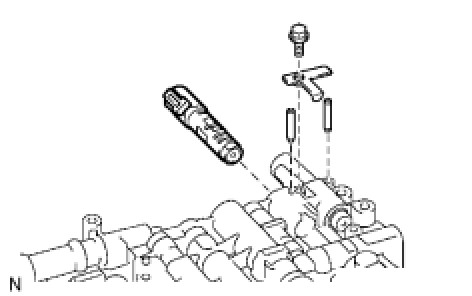

6. INSTALL SHIFT SOLENOID VALVE SL1
7. INSTALL SHIFT SOLENOID VALVE SLT






(a) Install the shift solenoid valve.
(b) Install the 2 straight pins and lock plate with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)

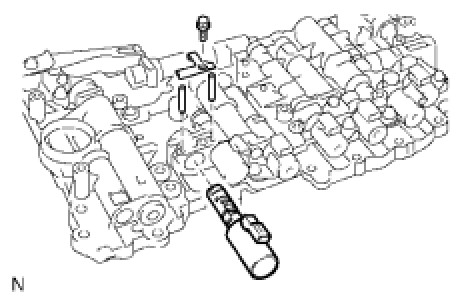

8. INSTALL SHIFT SOLENOID VALVE SLU

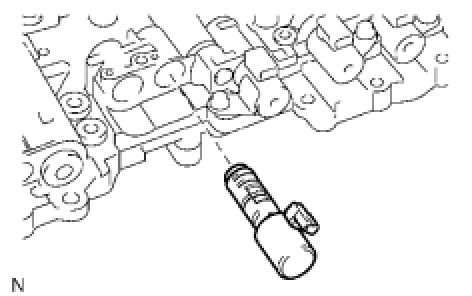

9. INSTALL SHIFT SOLENOID VALVE SL2






(a) Install the shift solenoid valve.
(b) Install the 2 straight pins and lock plate with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
