Transmission Mode Switch: Testing and Inspection

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PATTERN SELECT SWITCH: INSPECTION

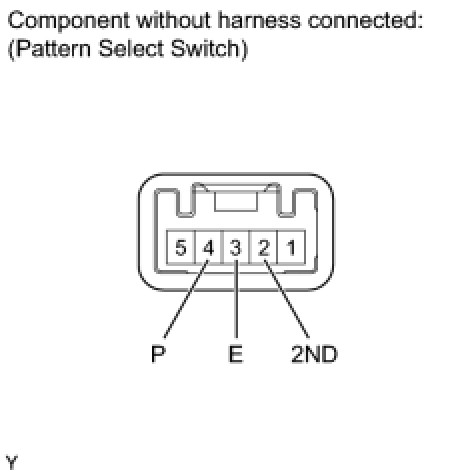

1. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY

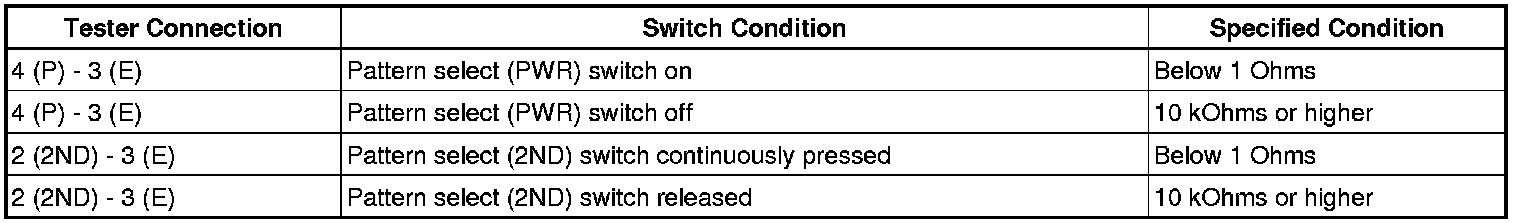

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the No. 1 pattern select switch assembly.
