Removal

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PATTERN SELECT SWITCH: REMOVAL

1. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Removal

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

3. REMOVE PARKING BRAKE HOLE COVER Removal

4. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Removal







5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

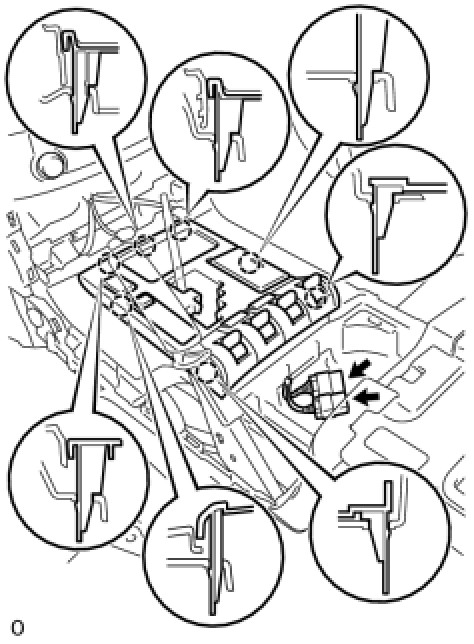

(a) Disconnect the 2 connectors.
(b) Detach the 7 claws and remove the position indicator housing.






6. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
(a) Disconnect the connector.

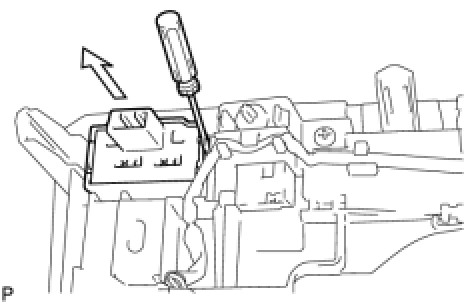

(b) Using a small screwdriver, detach the 2 claws and remove the pattern select switch from the position indicator housing.
