Installation

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PATTERN SELECT SWITCH: INSTALLATION

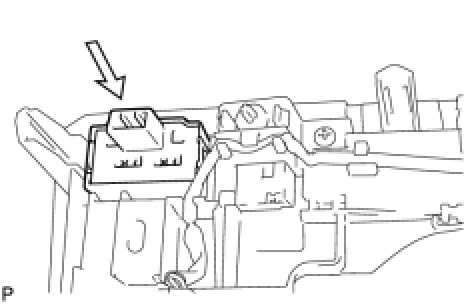

1. INSTALL NO. 1 PATTERN SELECT SWITCH ASSEMBLY
(a) Install the pattern select switch to the position indicator housing and attach the 2 claws.
(b) Connect the connector.






2. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
(a) Attach the 7 claws to install the position indicator housing.
(b) Connect the 2 connectors.
3. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation

4. INSTALL PARKING BRAKE HOLE COVER Installation

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

6. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation
