Removal

HINT

Use the same procedures for LH and RH seat. The procedures listed in this TSIB are for the LH side.

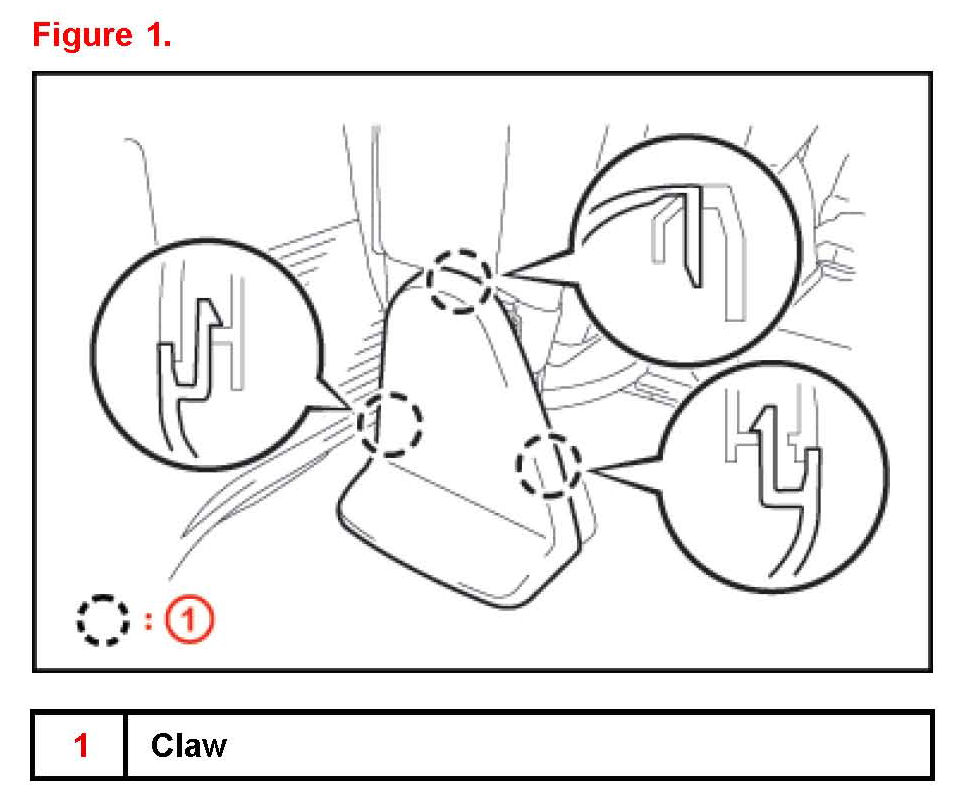

1. Using a plastic pry tool detach the 3 claws and remove the seat hinge cushion cover.

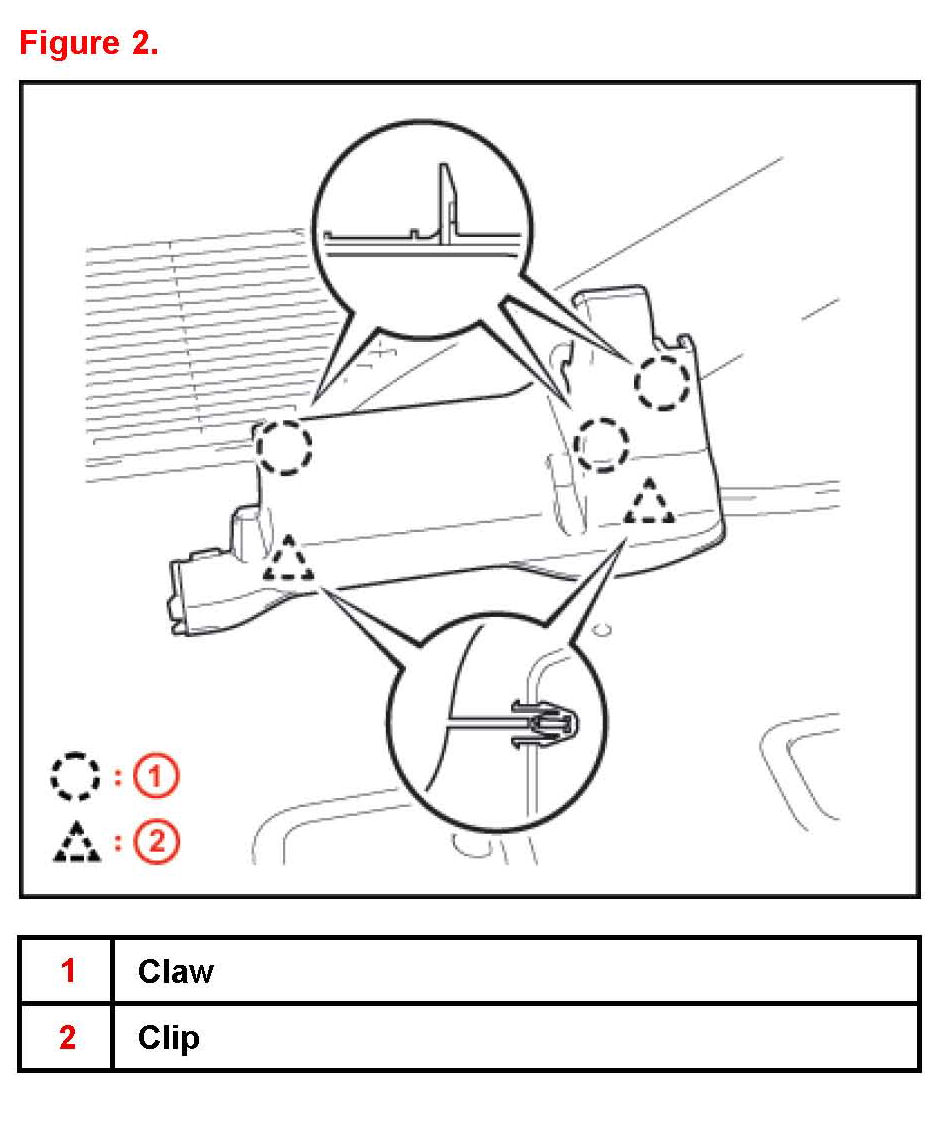

2. Using a plastic pry tool detach the 3 claws and 2 clips to remove the seat hinge cover.

3. Disconnect cable from negative battery terminal.

NOTICE

W/ Navigation System: After the engine is turned off, the HDD navigation system requires 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

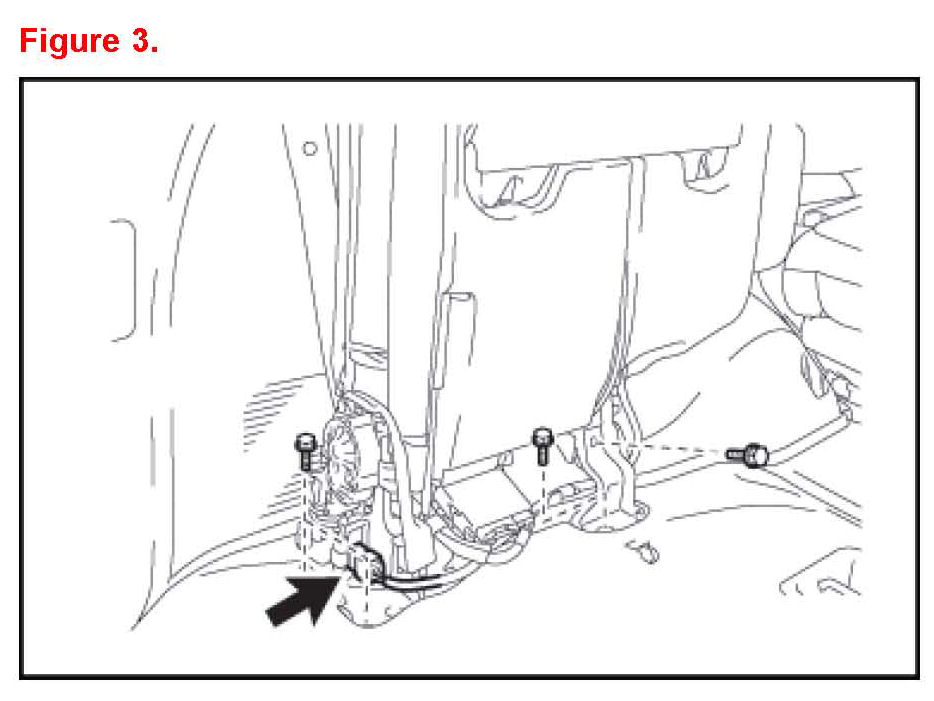

4. Disconnect connector remove 4 bolts and seat assembly to remove rear seat assembly.

NOTICE

Be careful not to damage the vehicle body or interior components.
