Interior - Power 3rd Row Seat Stow Function Is Inop.: Overview
L-SB-0006-11February 15, 2011
Power 3rd Row Seat Stow Function Inoperative (No Buzzer Sound)
Service Category
Vehicle Interior
Section
Seat
Market
USA

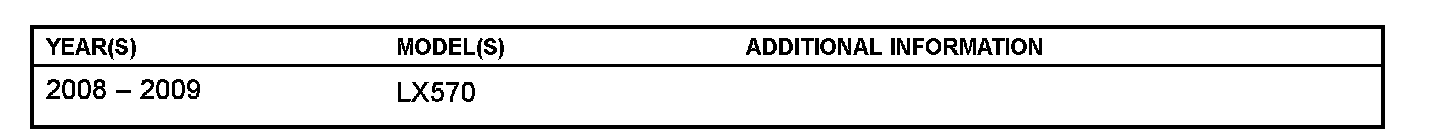

Applicability
TSIB SUPERSESSION NOTICE
The information contained in this TSIB supersedes TSIB No. L-SB-0122-08.
^ Applicability has been updated to include 2009 model year.
^ The entire Repair Procedure has been updated. PLEASE READ ENTIRE TSIB.
TSIB No. L-SB-0122-08 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this service bulletin before proceeding.
Introduction
Some LX570 vehicles may exhibit a condition where the power 3rd row seats will not fold up to the vertical stowed position. This condition is usually intermittent and operation can usually be restored by manually unfolding and refolding the seatback.
NOTE
If the seat buzzer sounds or the floor latches release when pushing the stow button, follow TSIB "Third Row Power Seat Function Inoperative".

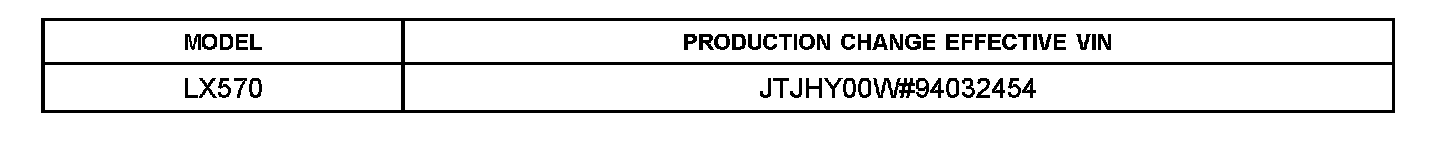

Production Change Information
This TSIB applies to vehicles produced BEFORE the Production Change Effective VINs shown.

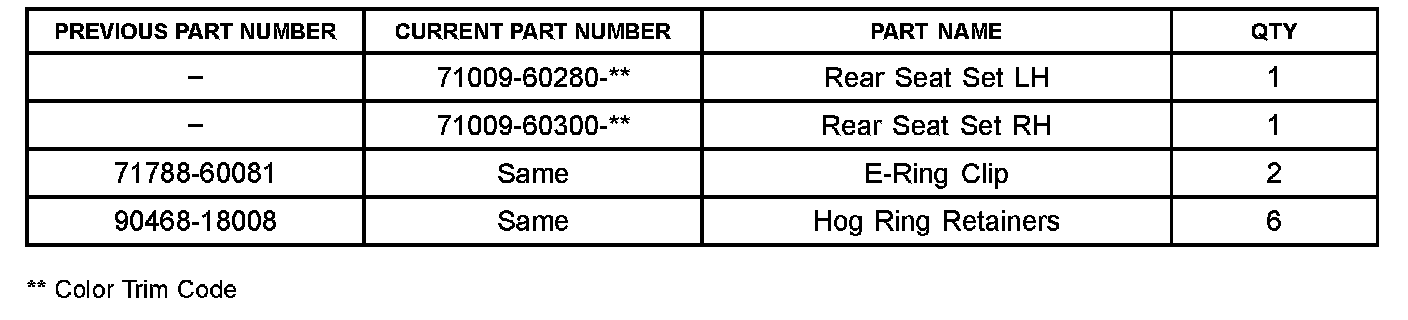

Parts Information

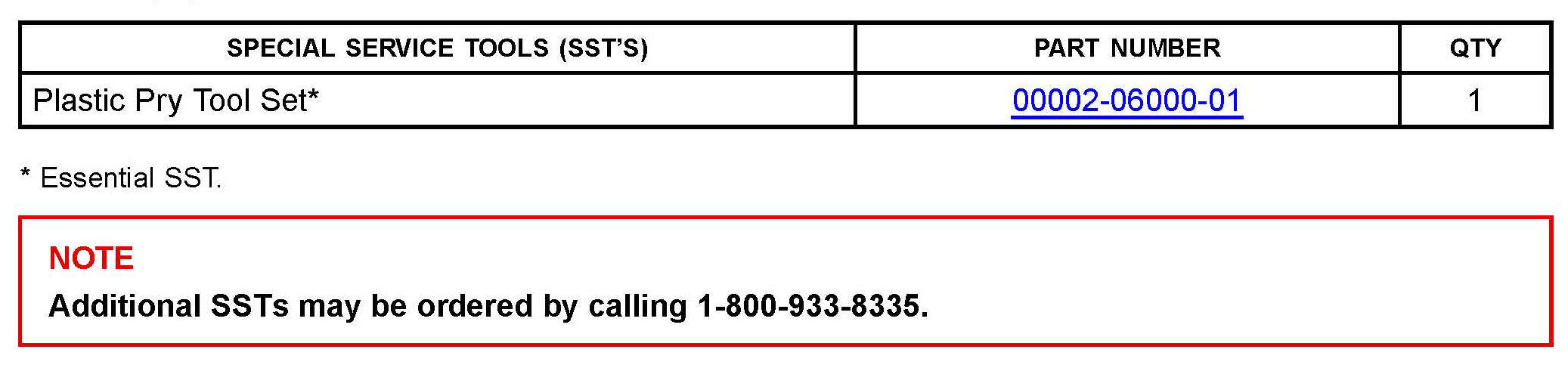

Required Tools & Equipment

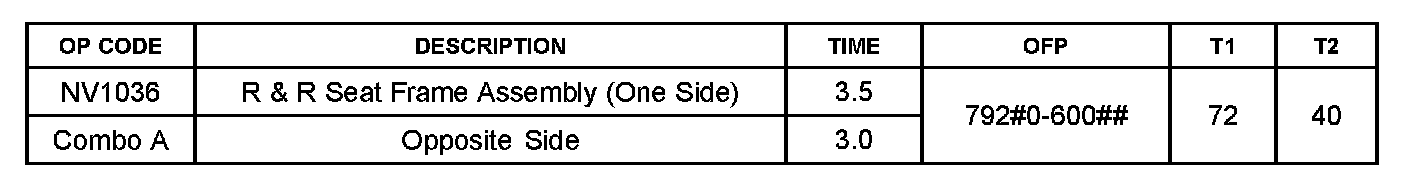

Warranty Information
^ This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
^ Warranty application is limited to occurrence of the specified condition described in this bulletin.
