Impact Sensor: Locations

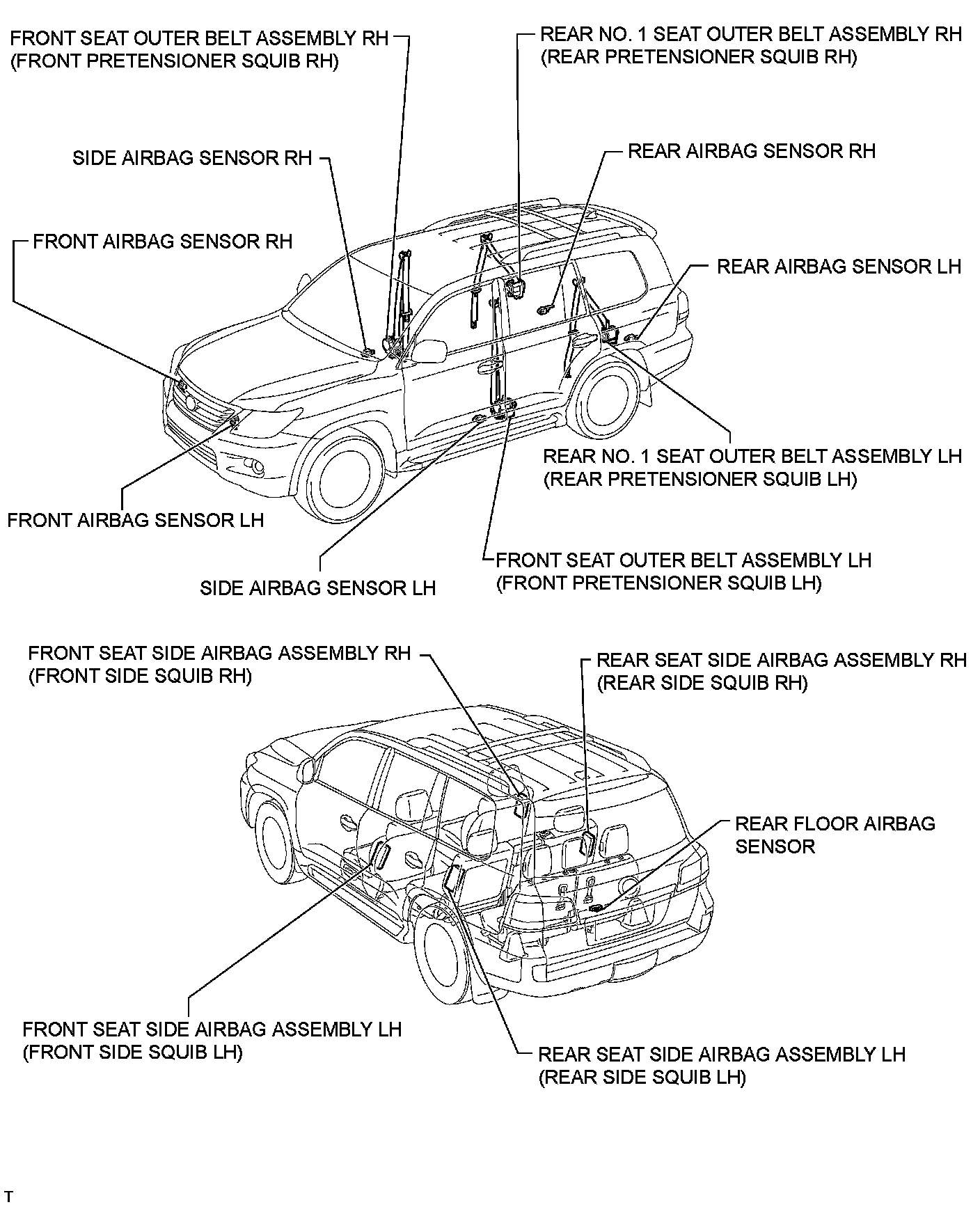

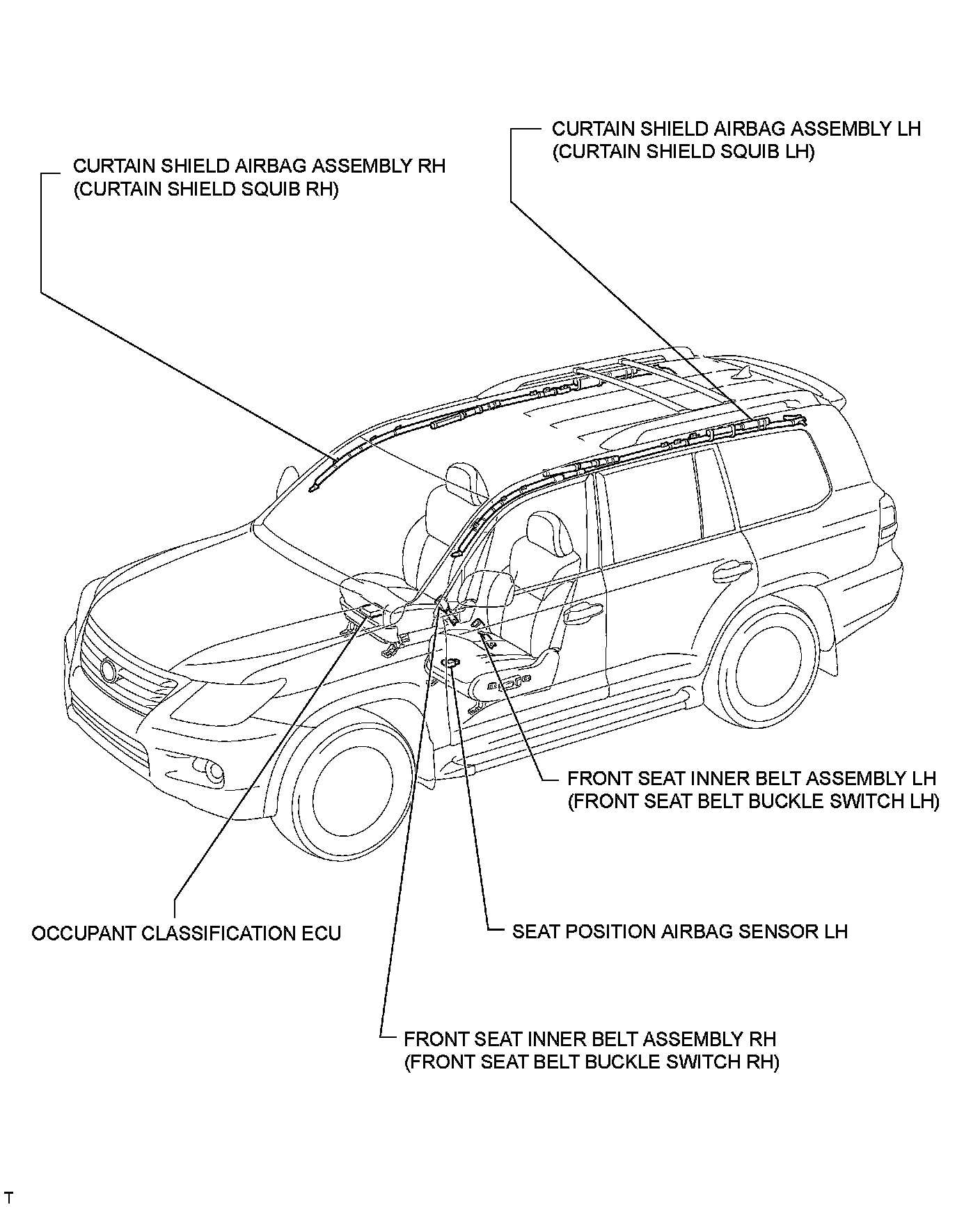

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: PARTS LOCATION

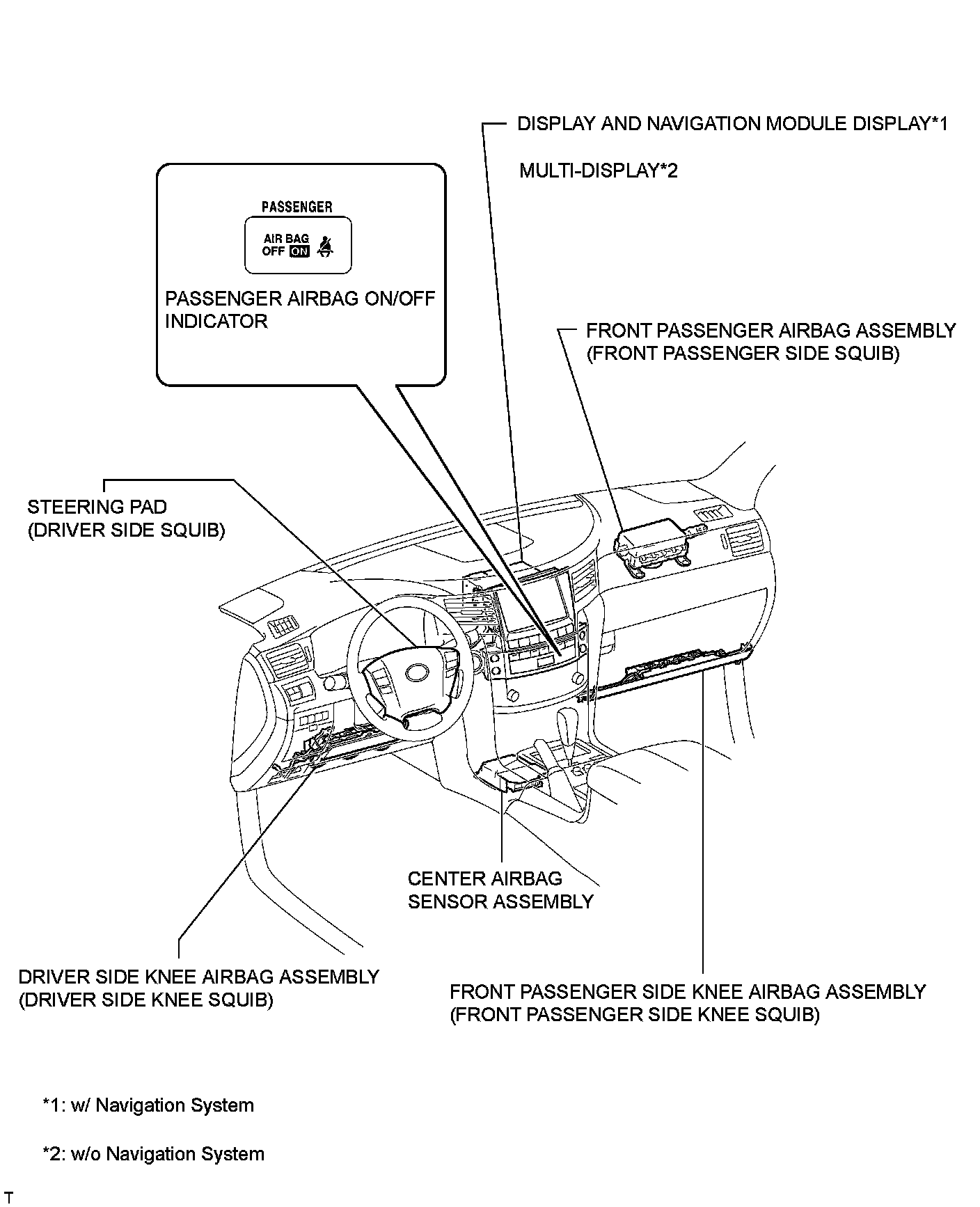

Instrument Panel:
