Removal

SUSPENSION CONTROL: SUSPENSION CONTROL ECU: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR NO. 2 SEAT ASSEMBLY LH
(a) w/ Manual Folding-up Function:
Remove the rear No. 2 seat assembly LH Removal.
(b) w/ Automatic Folding-up Function:
Remove the rear No. 2 seat assembly LH Removal.
3. REMOVE REAR NO. 2 SEAT ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.

4. REMOVE REAR STEP COVER Removal

5. REMOVE REAR DOOR SCUFF PLATE LH Removal

6. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE Removal

7. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal

8. REMOVE REAR SEAT COVER CAP (for Semi Power Seat) Removal

9. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH Removal

10. REMOVE REAR SIDE NO. 2 AIR DUCT Disassembly

11. REMOVE SUSPENSION CONTROL ECU

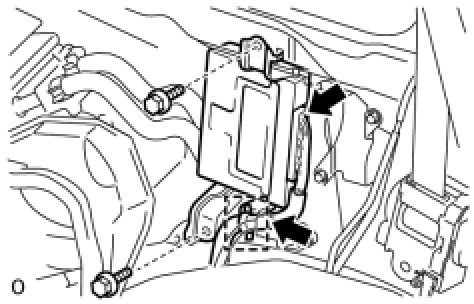

(a) Remove the 2 bolts and ECU.
(b) Detach the wire harness clamp and disconnect the connector.
