Installation

SUSPENSION CONTROL: SUSPENSION CONTROL ECU: INSTALLATION

1. INSTALL SUSPENSION CONTROL ECU






(a) Attach the wire harness clamp and connect the connector.

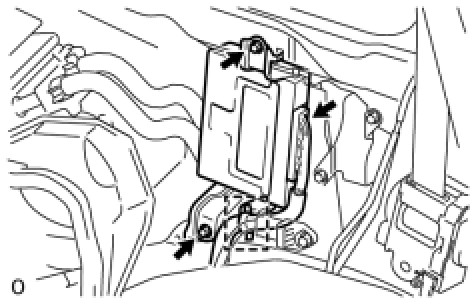

(b) Install the ECU with the 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
2. INSTALL REAR SIDE NO. 2 AIR DUCT Reassembly

3. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation

4. INSTALL REAR SEAT COVER CAP (for Semi Power Seat) Installation

5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation

6. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Installation

7. INSTALL REAR DOOR SCUFF PLATE LH Installation

8. INSTALL REAR STEP COVER Installation

9. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) w/ Manual Folding-up Function:
Install the rear No. 2 seat assembly LH Installation.
(b) w/ Automatic Folding-up Function:
Install the rear No. 2 seat assembly LH Installation.
10. INSTALL REAR NO. 2 SEAT ASSEMBLY RH
HINT:
Use the same procedures described for the LH side.

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. PERFORM VEHICLE HEIGHT OFFSET CALIBRATION
(a) Perform the vehicle height offset calibration Testing and Inspection.
13. PERFORM ZERO POINT CALIBRATION OF G SENSOR
(a) Perform the zero point calibration of the G sensor Calibration.
14. ADJUST HEADLIGHT ASSEMBLY
(a) Adjust the headlight Adjustments.
