Installation

POWER OUTLETS (EXT): TOWING CONVERTER RELAY: INSTALLATION

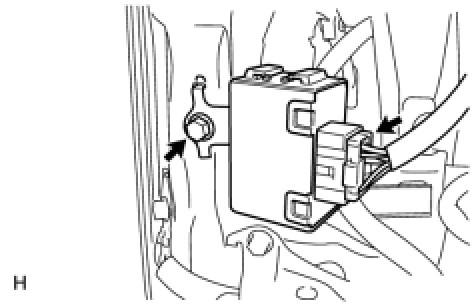

1. INSTALL TOWING CONVERTER RELAY






(a) Install the towing converter relay with the bolt.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
(b) Connect the connector.
2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation

3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation

4. INSTALL REAR SEAT COVER CAP (for Rear No. 2 Seat with Manual Folding-up Function) Installation

5. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Installation

6. INSTALL REAR DOOR SCUFF PLATE LH Installation

7. INSTALL REAR STEP COVER Installation

8. INSTALL REAR NO. 2 SEAT ASSEMBLY
(a) Install the rear No. 2 seat assembly LH Installation.
9. CHECK TOWING SOCKET OPERATION
(a) Turn the engine switch on (IG) and check the operation of the towing socket assembly.
