Installation

PARK ASSIST / MONITORING: PARKING ASSIST ECU: INSTALLATION





1. INSTALL PARKING ASSIST ECU

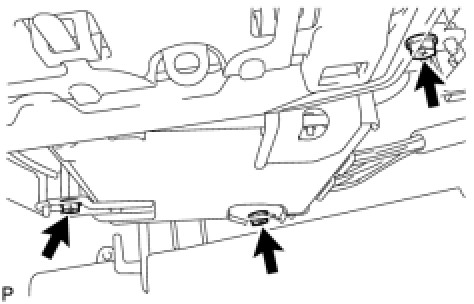

(a) Install the parking assist ECU to the blower unit with the 3 screws.
NOTICE:
- Avoid any impact to the parking assist ECU.
- Do not drop the ECU. If it is dropped, replace it with a new one.

(b) Connect the connector.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
