A/T - AB60F Solenoid Identification

L-SB-0020-09

February 27, 2009

AB60F Transmission Solenoid Identification

Service Category
Drivetrain

Section
Automatic Transmission/Transaxle

Market
USA

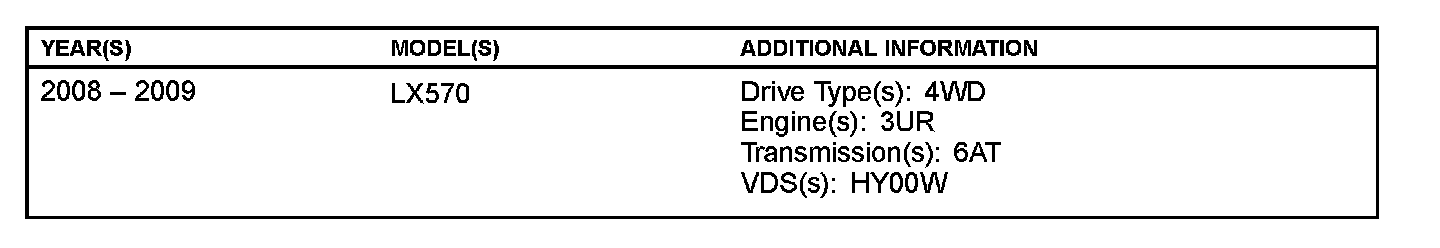

Applicability

Introduction

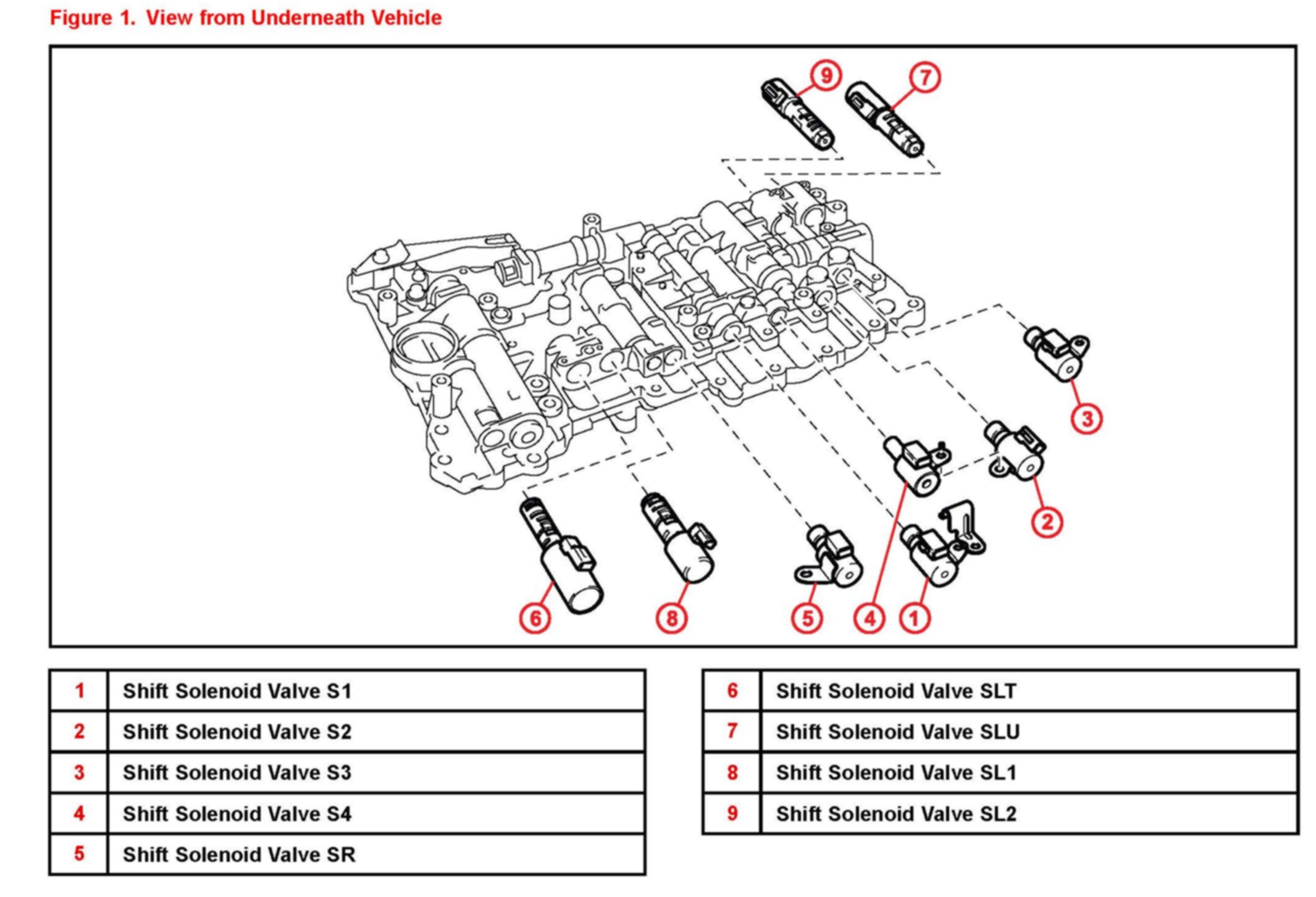

This service bulletin provides information on the proper identification of the 9 solenoids used in the AB6OF (6 speed) transmission in the Lx570.





Warranty Information





Transmission Solenoid Identification

Parts Information

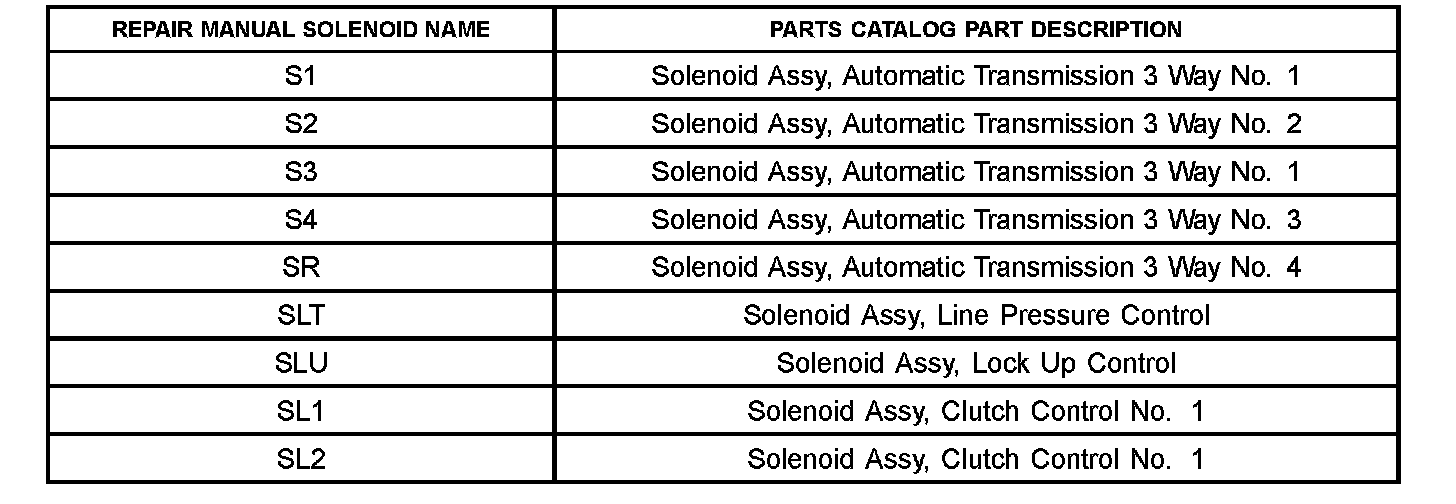

Provided is a chart listing the Repair Manual name of each solenoid used in the AB6OF transmission as well as the part name description provided in the electronic parts catalog.
