Installation

3UR-FE ENGINE CONTROL: ACCELERATOR PEDAL: INSTALLATION

1. INSTALL ACCELERATOR PEDAL ASSEMBLY
NOTICE:
- Avoid physical shocks to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.

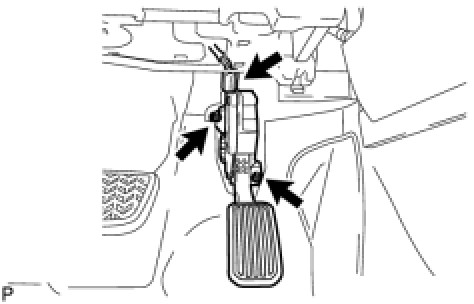

(a) Install the accelerator pedal with the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the accelerator pedal position sensor connector.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
