LIN Communication System
LIN Communication System

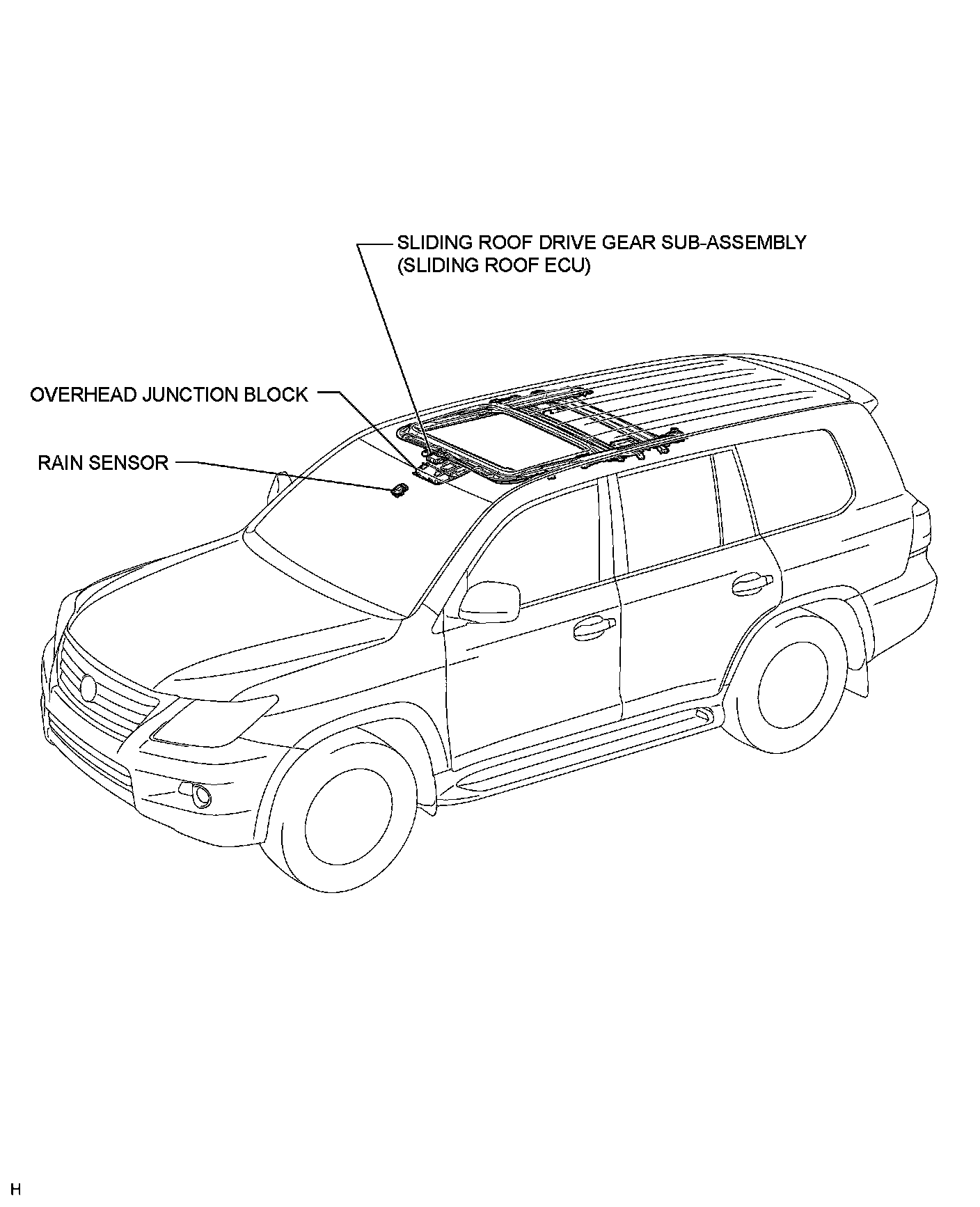

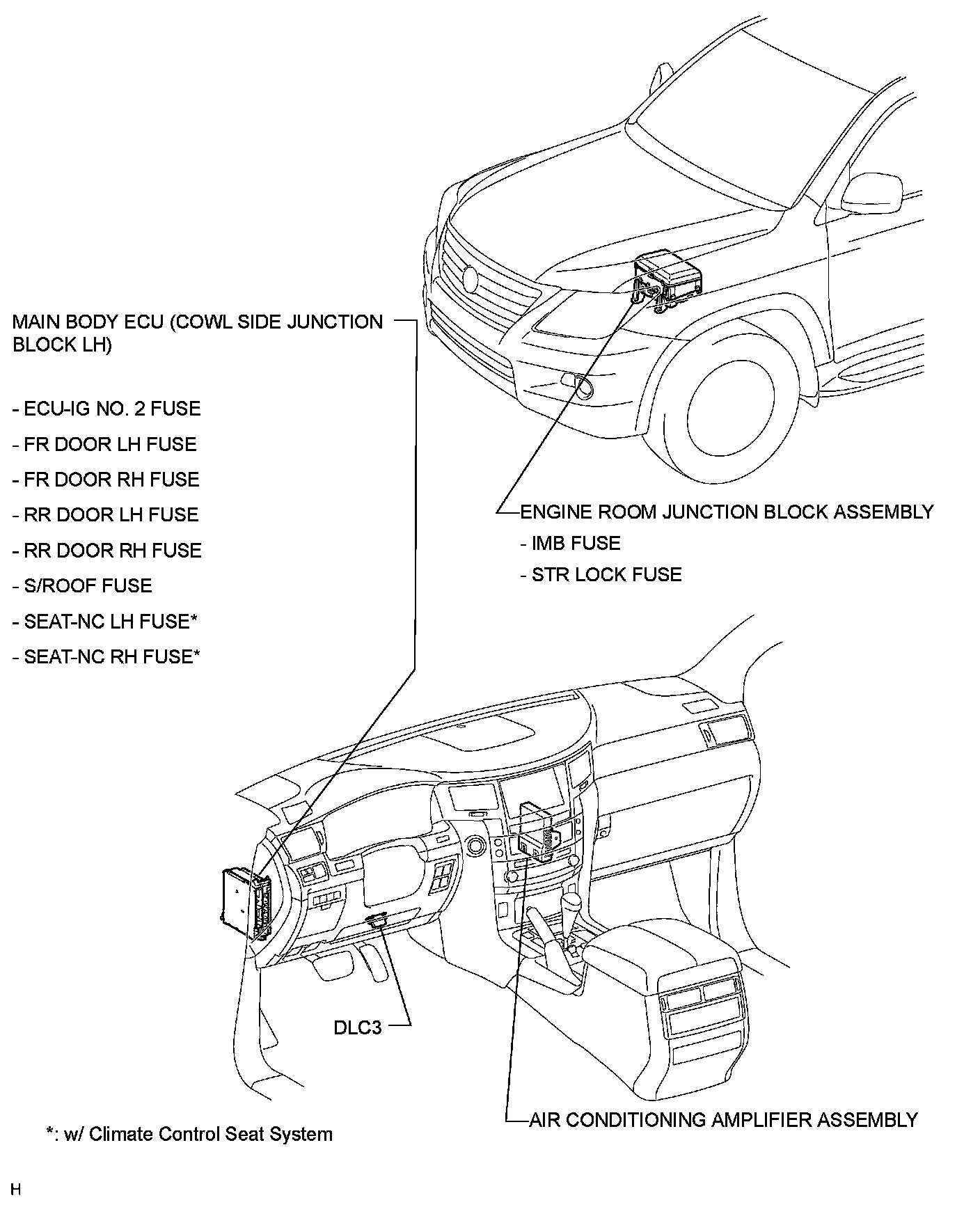

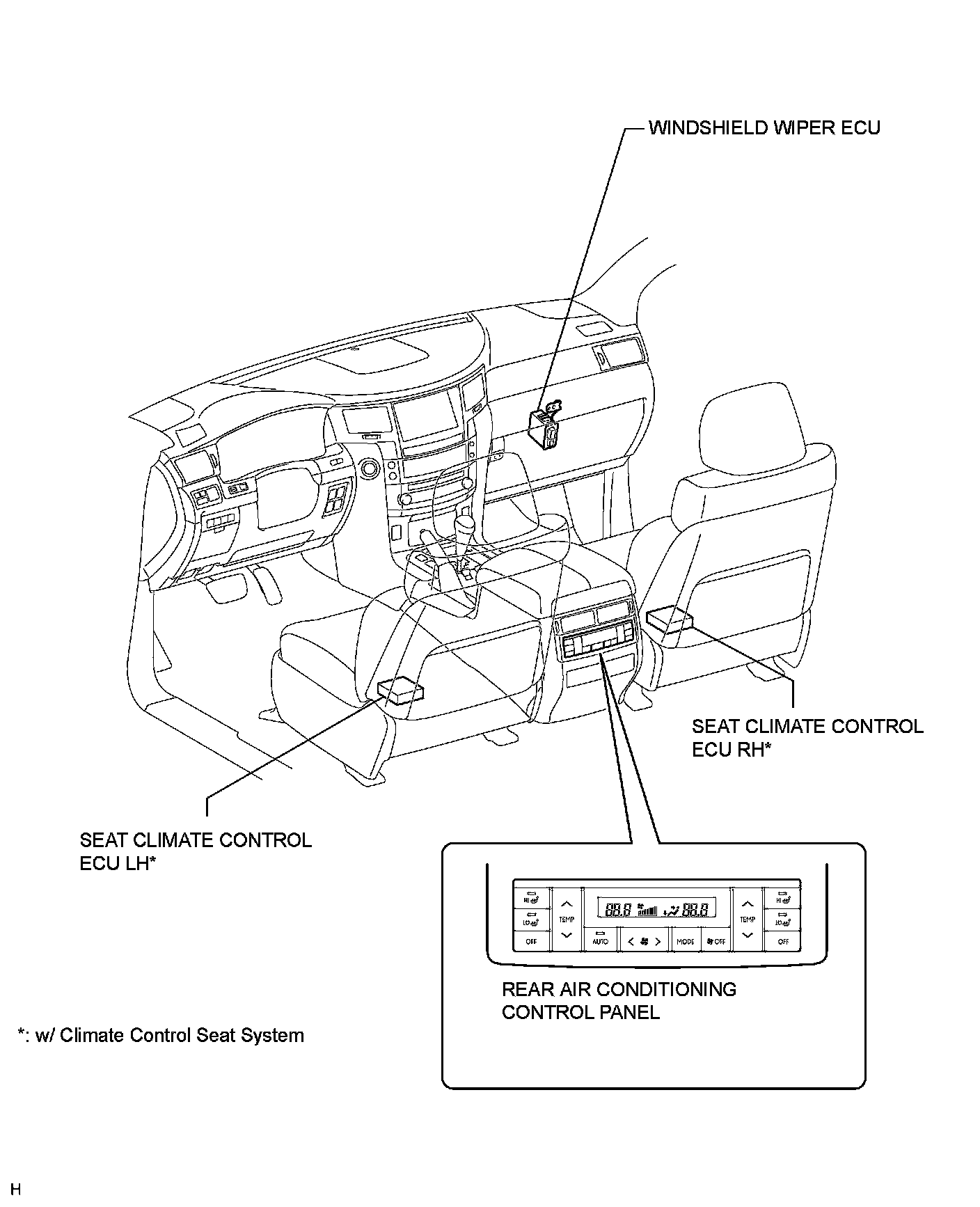

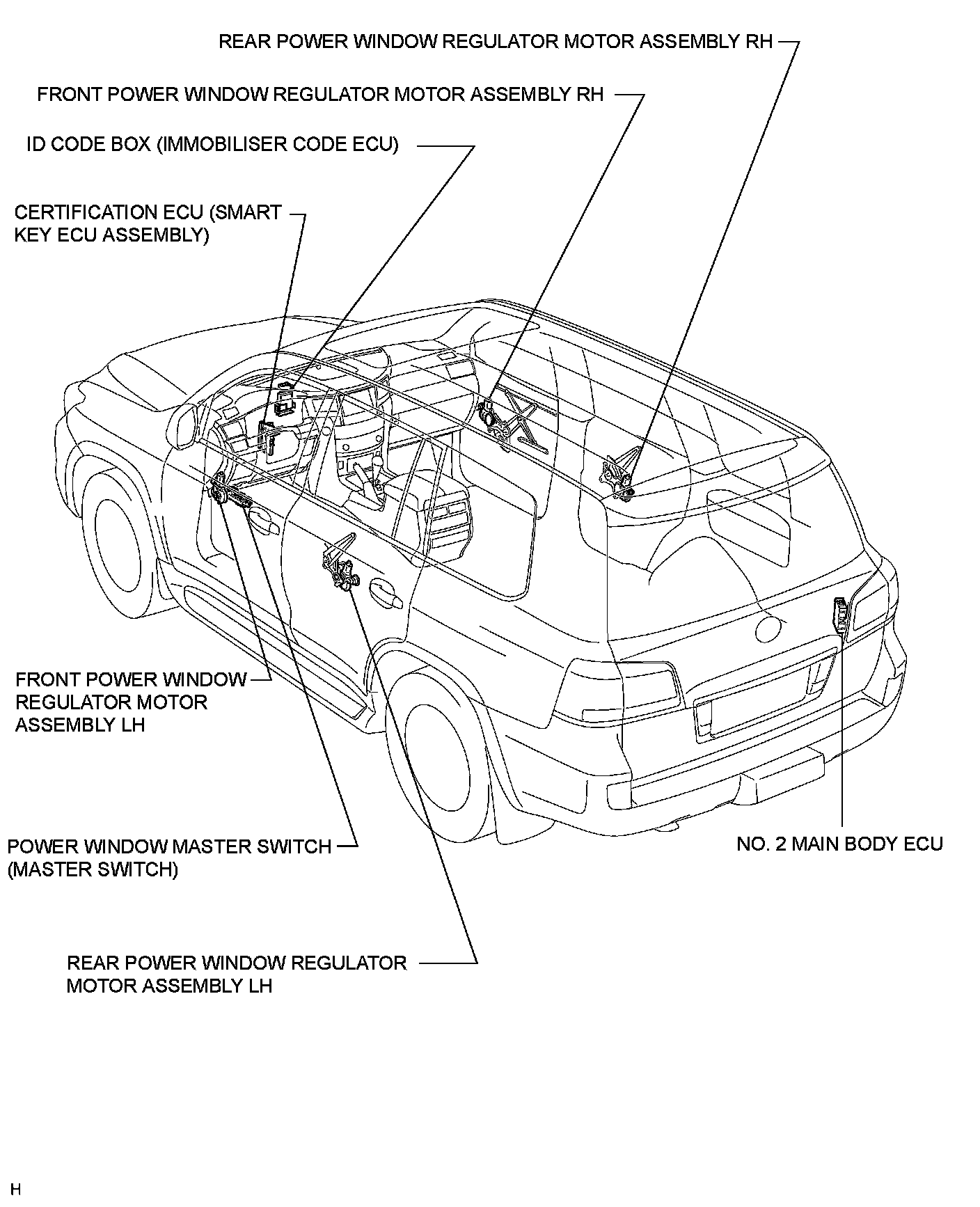

NETWORKING: LIN COMMUNICATION SYSTEM: PARTS LOCATION
