Removal

POWER OUTLETS (INT): POWER OUTLET SOCKET: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

2. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Removal

3. REMOVE POSITION INDICATOR HOUSING ASSEMBLY






(a) Detach the 7 claws.
(b) Disconnect the connectors and remove the position indicator housing.
4. REMOVE POWER OUTLET SOCKET ASSEMBLY






(a) Disconnect the connector.

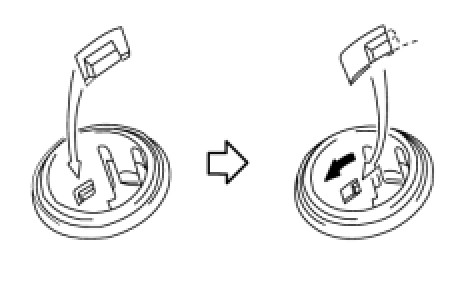

(b) Rotate the socket to disengage the protrusion.

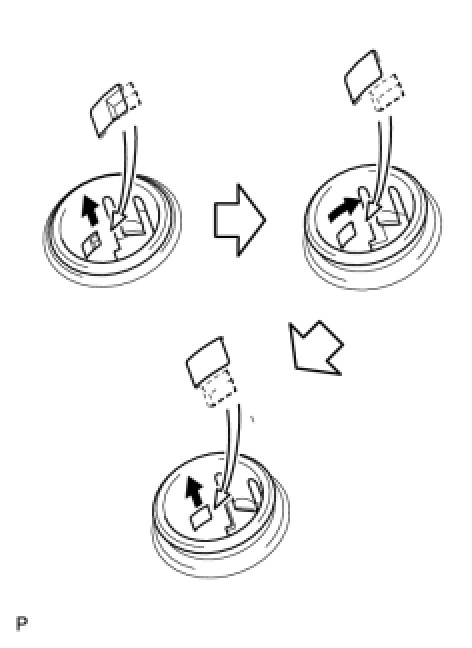

(c) Pull out the socket halfway and rotate the socket until the protrusion is aligned with the hole of the socket. Then remove the power outlet socket.
5. REMOVE POWER OUTLET SOCKET COVER






(a) Detach the 2 claws and remove the cover.
