Installation

POWER OUTLETS (INT): POWER OUTLET SOCKET: INSTALLATION

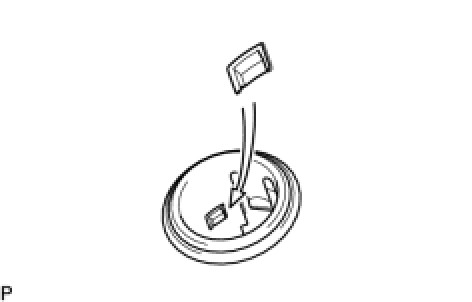

1. INSTALL POWER OUTLET SOCKET COVER






(a) Attach the 2 claws to install the socket cover.

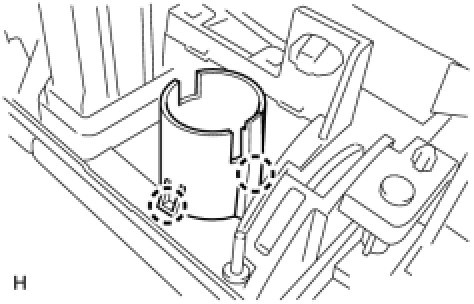

2. INSTALL POWER OUTLET SOCKET ASSEMBLY






(a) Align the protrusion on the inside of the cover with the hole of the socket. Then push the socket into the cover.

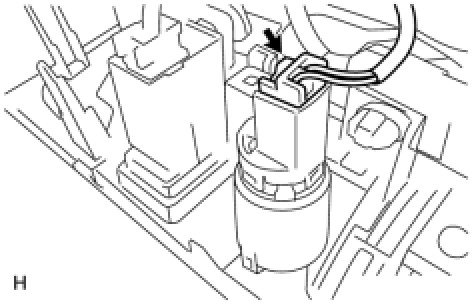

(b) Connect the connector.

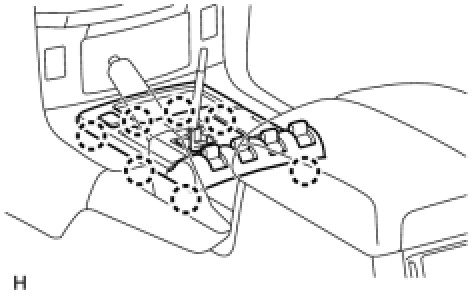

3. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
(a) Connect the connectors.






(b) Attach the 7 claws to install the position indicator housing.
4. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY Installation

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
