Removal

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING RECEIVER (w/ Antenna): REMOVAL

1. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining Removal.
2. REMOVE TIRE PRESSURE WARNING ANTENNA AND RECEIVER






(a) Disconnect the receiver connector.

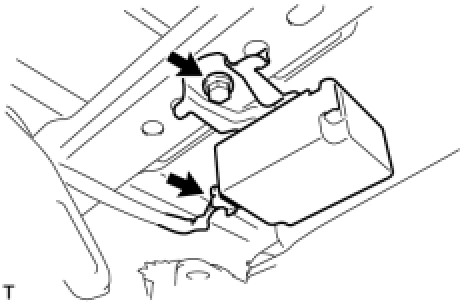

(b) Remove the bolt and receiver.
