Installation

LIGHTING (INT): LUGGAGE COMPARTMENT ROOM LIGHT: INSTALLATION


1. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
(a) Install the bulb.






(b) Attach the 4 claws to install the cover.






(c) Attach the claw to install the light.
2. INSTALL QUARTER TRIM COVER RH

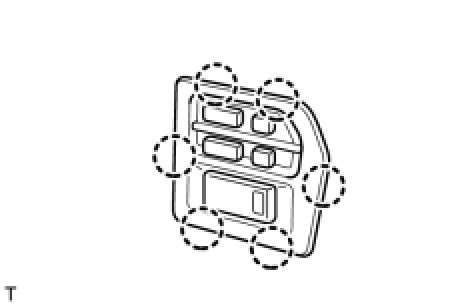

(a) Attach the 6 claws to install the cover.
