Reassembly

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: REASSEMBLY

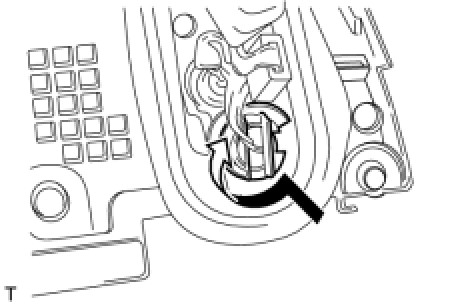

1. INSTALL REAR TURN SIGNAL LIGHT BULB






(a) Install the bulb to the socket.
(b) Insert the bulb/socket unit into the combination light.
(c) Turn the bulb/socket unit in the direction indicated by the arrow to install it.
