Installation

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION


1. INSTALL REAR COMBINATION LIGHT ASSEMBLY LH






(a) Connect the connector.

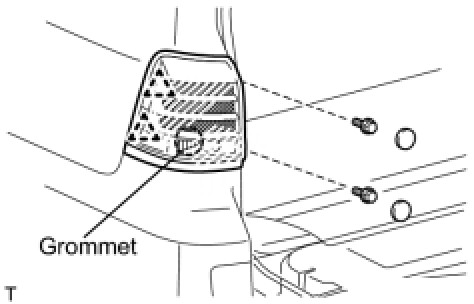

(b) Attach the 2 clips and grommet to install the rear combination light.
(c) Install the 2 bolts.
(d) Install the 2 covers.
