Installation

LIGHTING (EXT): LICENSE PLATE LIGHT ASSEMBLY: INSTALLATION

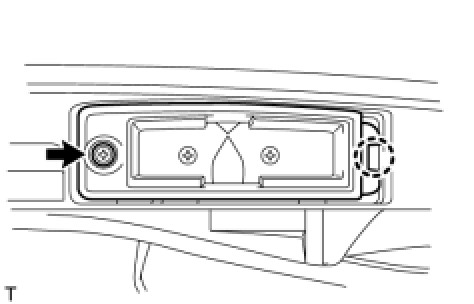

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY






(a) Attach the 2 claws to install the 2 lights.
(b) Install the 2 screws.
(c) Install the 7 screws to install the retainer.

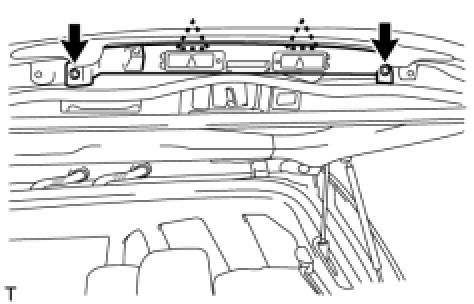

2. INSTALL BACK DOOR GARNISH RETAINER SUB-ASSEMBLY






(a) Connect the connector.
(b) Using a T30 "TORX" socket wrench, attach the 2 clips and install the garnish with the 2 screws.
