Installation

LIGHTING (INT): FRONT DOOR COURTESY SWITCH: INSTALLATION

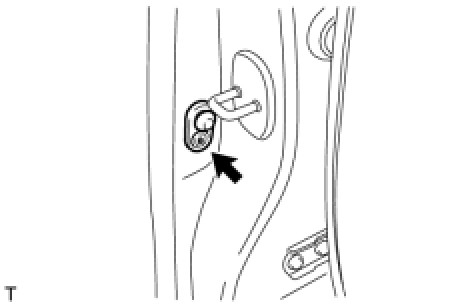

1. INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY






(a) Connect the connector.
(b) Using a T30 "TORX" socket wrench, install the switch with the screw.
