Installation

METER / GAUGE / DISPLAY: LIGHT CONTROL RHEOSTAT: INSTALLATION


1. INSTALL LIGHT CONTROL RHEOSTAT

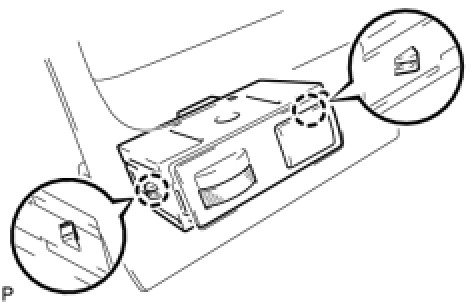

(a) Attach the 2 claws to install the rheostat.
2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

4. INSTALL NO. 1 SWITCH HOLE BASE Installation

5. INSTALL INSTRUMENT SIDE PANEL LH Installation

6. ENABLE AUTOAWAY/RETURN FUNCTION
(a) Reset the Autoaway/Return function setting to the previous condition by changing the customize parameter Repair Instruction - Customize Parameters.
