Installation

LIGHTING (EXT): STOP LIGHT SWITCH: INSTALLATION


1. INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER
(a) Install a new stop light switch mounting adjuster to the pedal support.
2. INSTALL STOP LIGHT SWITCH

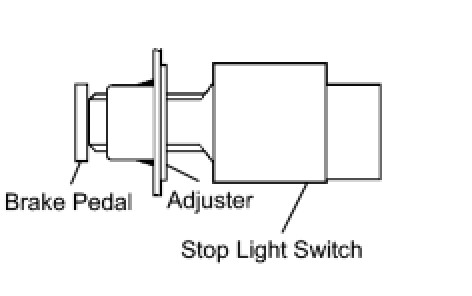

(a) Install the stop light switch to the adjuster until it slightly touches the brake pedal.
NOTICE:
Do not depress the brake pedal.





(b) Turn the stop light switch quarter in clockwise to install it.
NOTICE:
Do not depress the brake pedal.

Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)
NOTICE:

- Do not apply a force of 98 N or more to the switch body.
- Less than 1.5 N*m.


(c) Check the stop light switch clearance.
Stop light switch clearance:
1.5 to 2.5 mm (0.0590 to 0.0984 in.)
(d) Connect the wire harness clamp to the pedal support.
(e) Connect the connector to the stop light switch.
3. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
