Curiosii for ever!: Car repair manuals for everyone.
Home >> Lexus Truck >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Service and Repair >> Rear Air Conditioning Unit >> Components

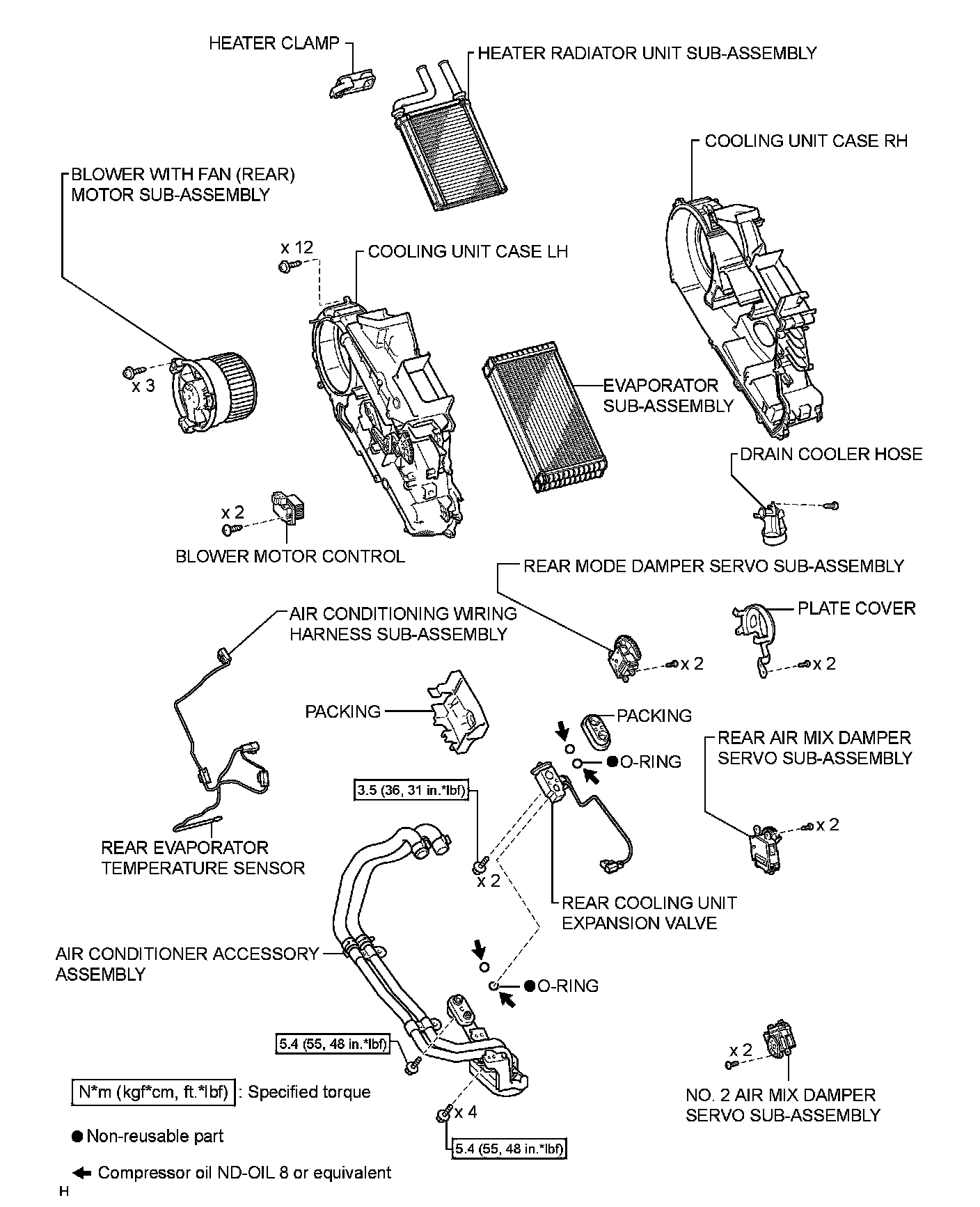

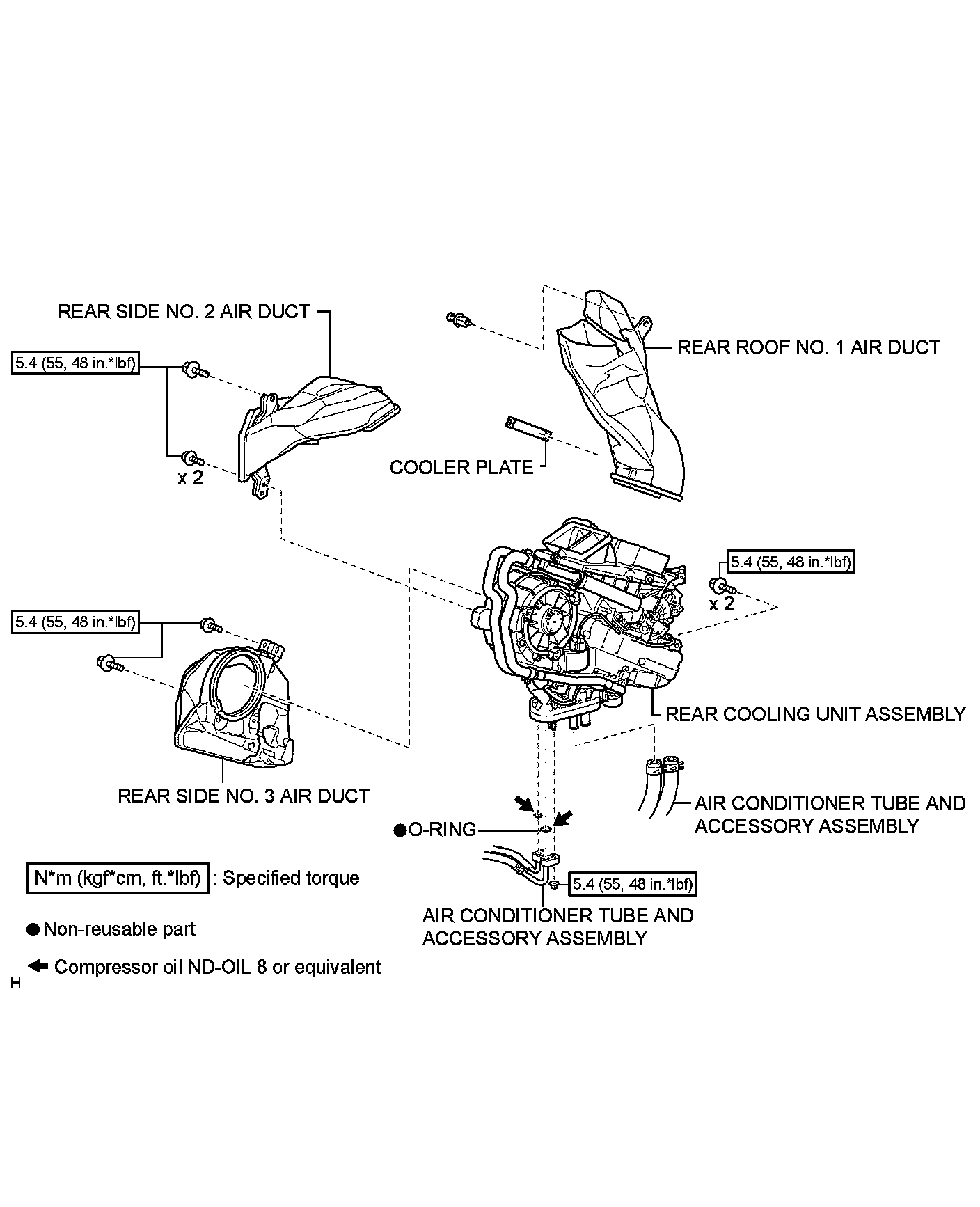

Components









HEATING / AIR CONDITIONING: REAR AIR CONDITIONING UNIT: COMPONENTS
