Room Temperature Sensor (for Front Side)

HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSPECTION





1. INSPECT ROOM TEMPERATURE SENSOR

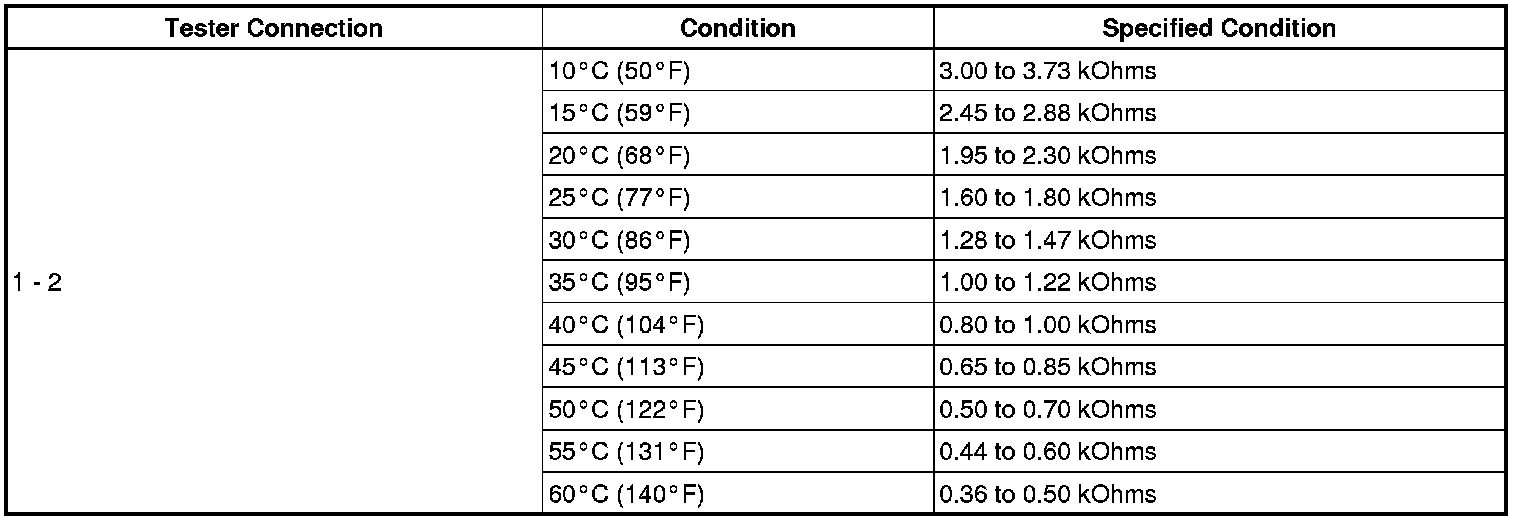

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the room temperature sensor.
NOTICE:
- Touching the sensor even slightly may change the resistance value. Hold the connector of the sensor.
- When measuring the resistance, the sensor temperature must be the same as the ambient temperature.
HINT:

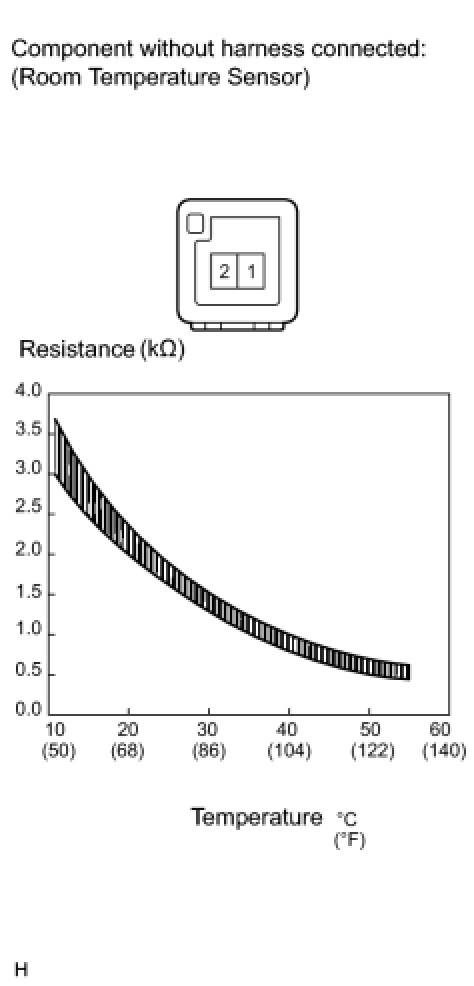

As the temperature increases, the resistance decreases (see the graph).
