Cabin Air Filter / Purifier: Service and Repair

Step 1. Turn the "ENGINE START STOP" switch "IGNITION ON" mode and switch to recirculated air mode, then turn the "ENGINE START STOP" switch OFF.

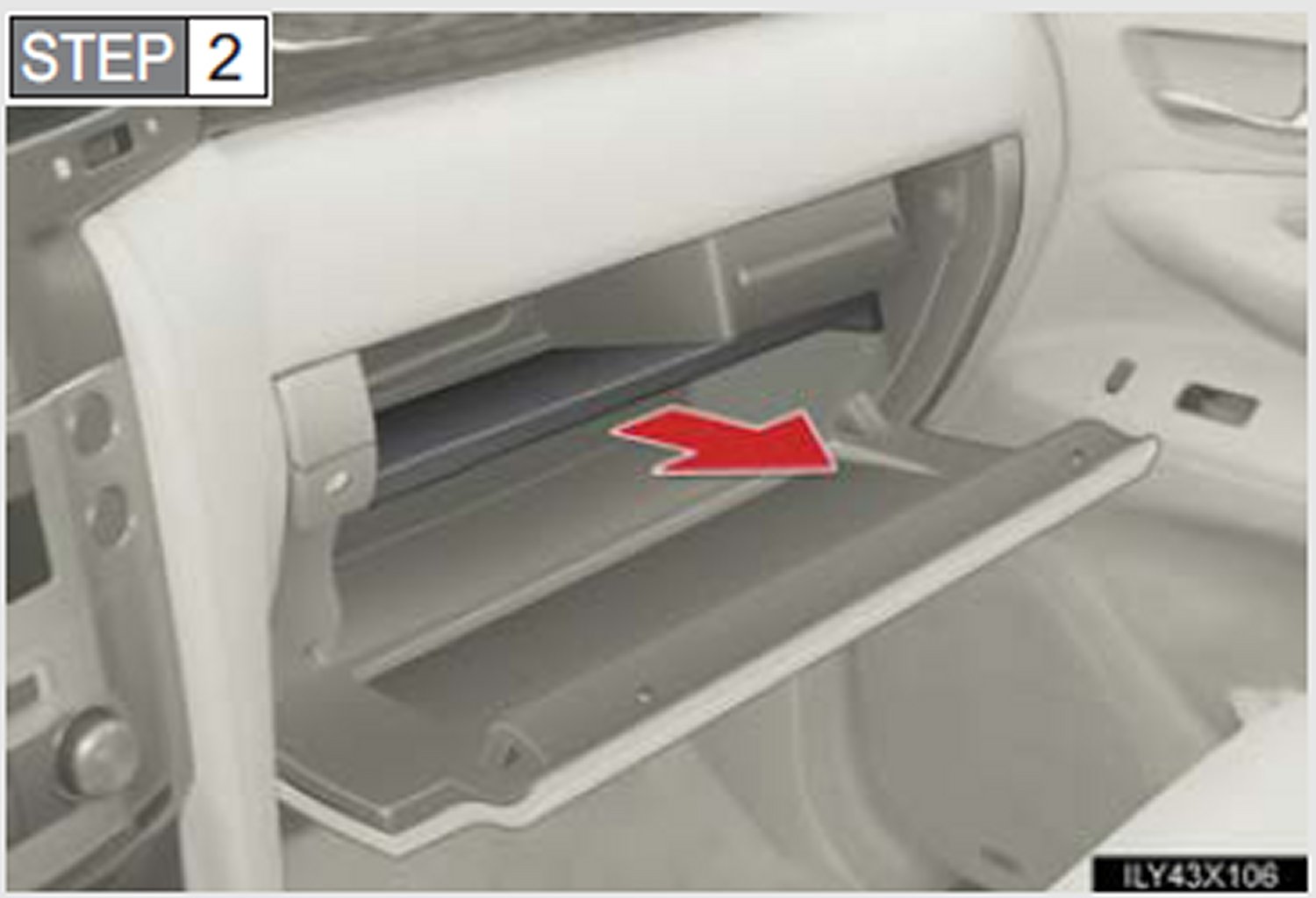

Step 2. Open the glove box and remove the partition.

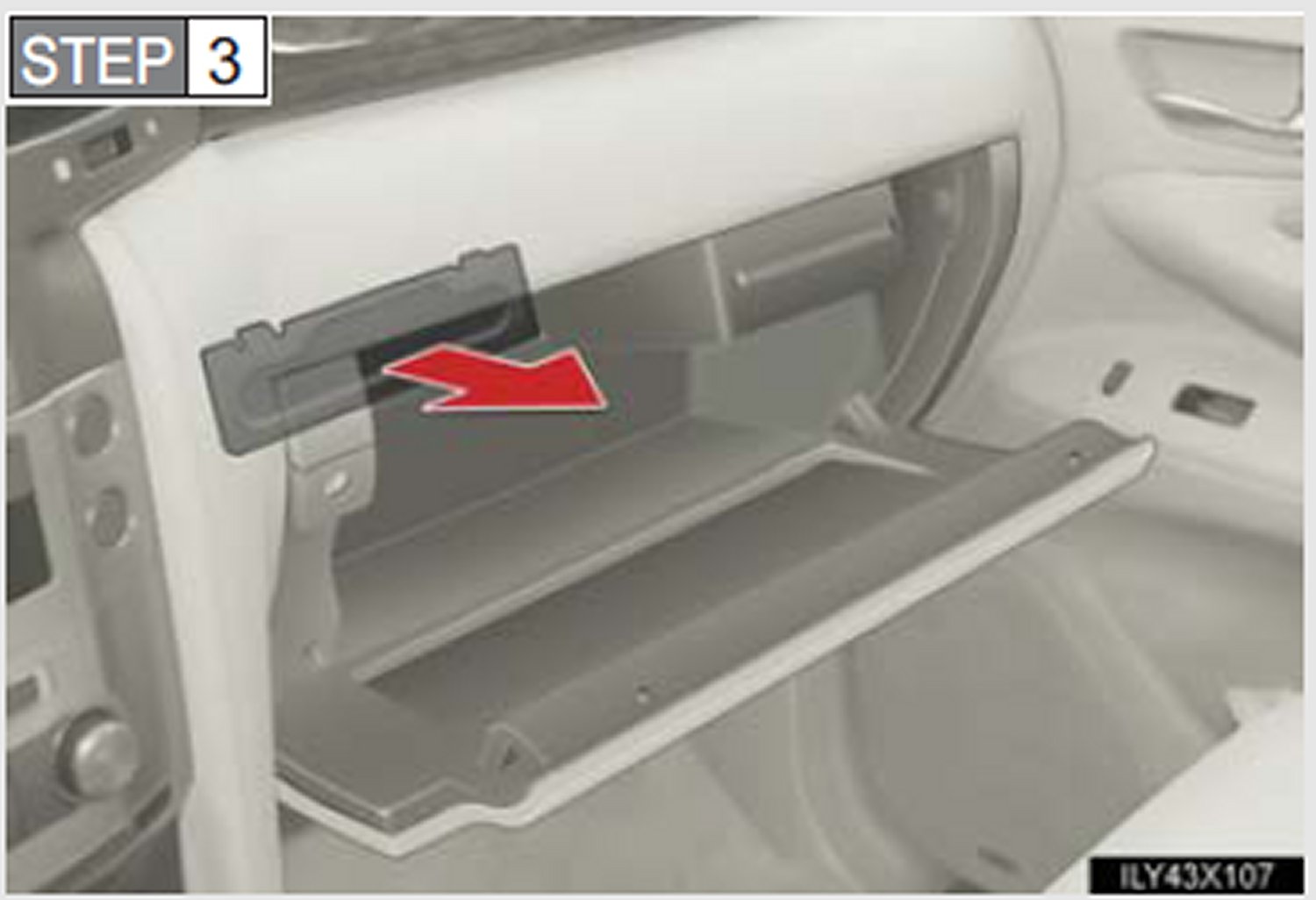

Step 3. Remove the filter cover.

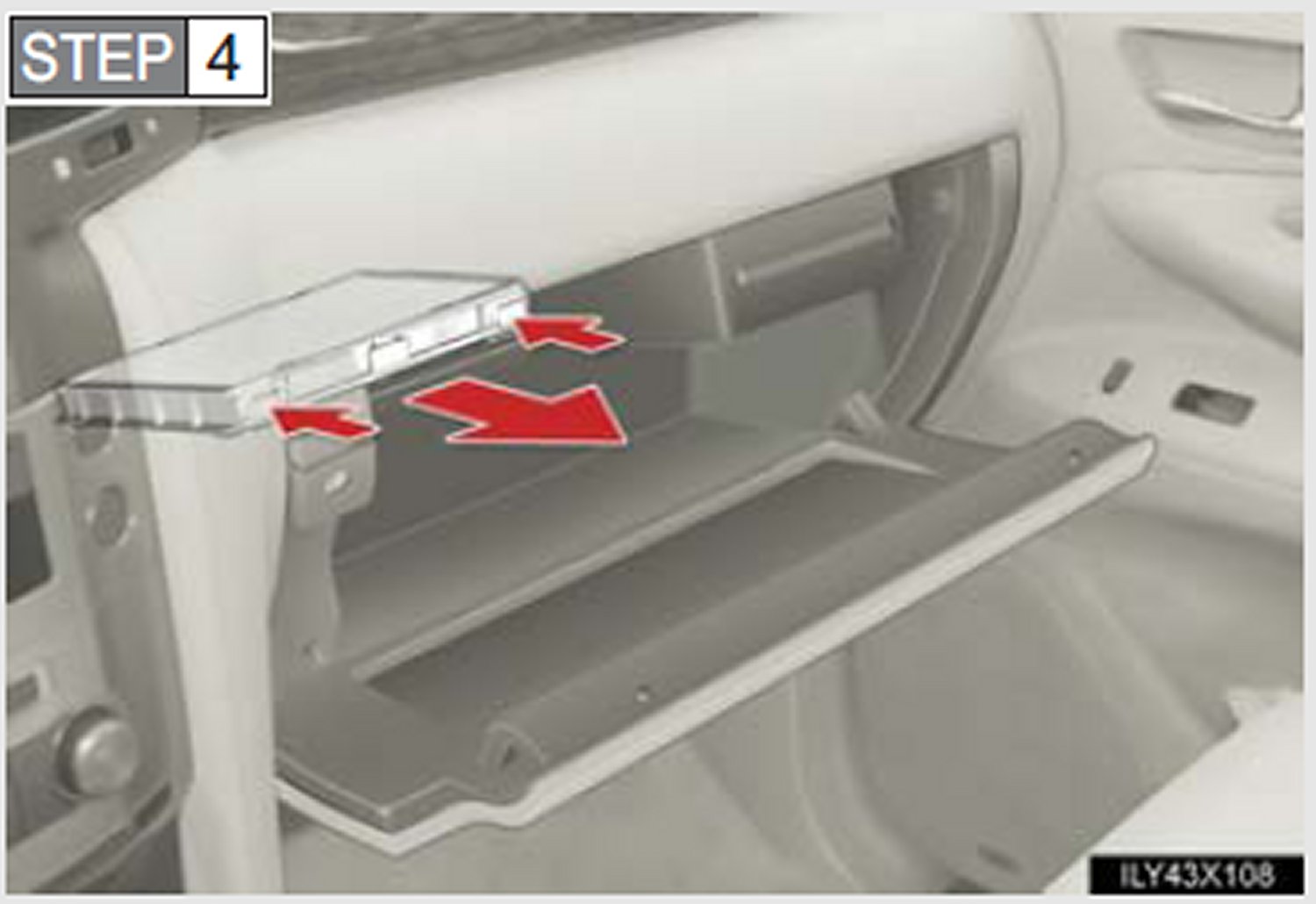

Step 4. Remove the filter case.

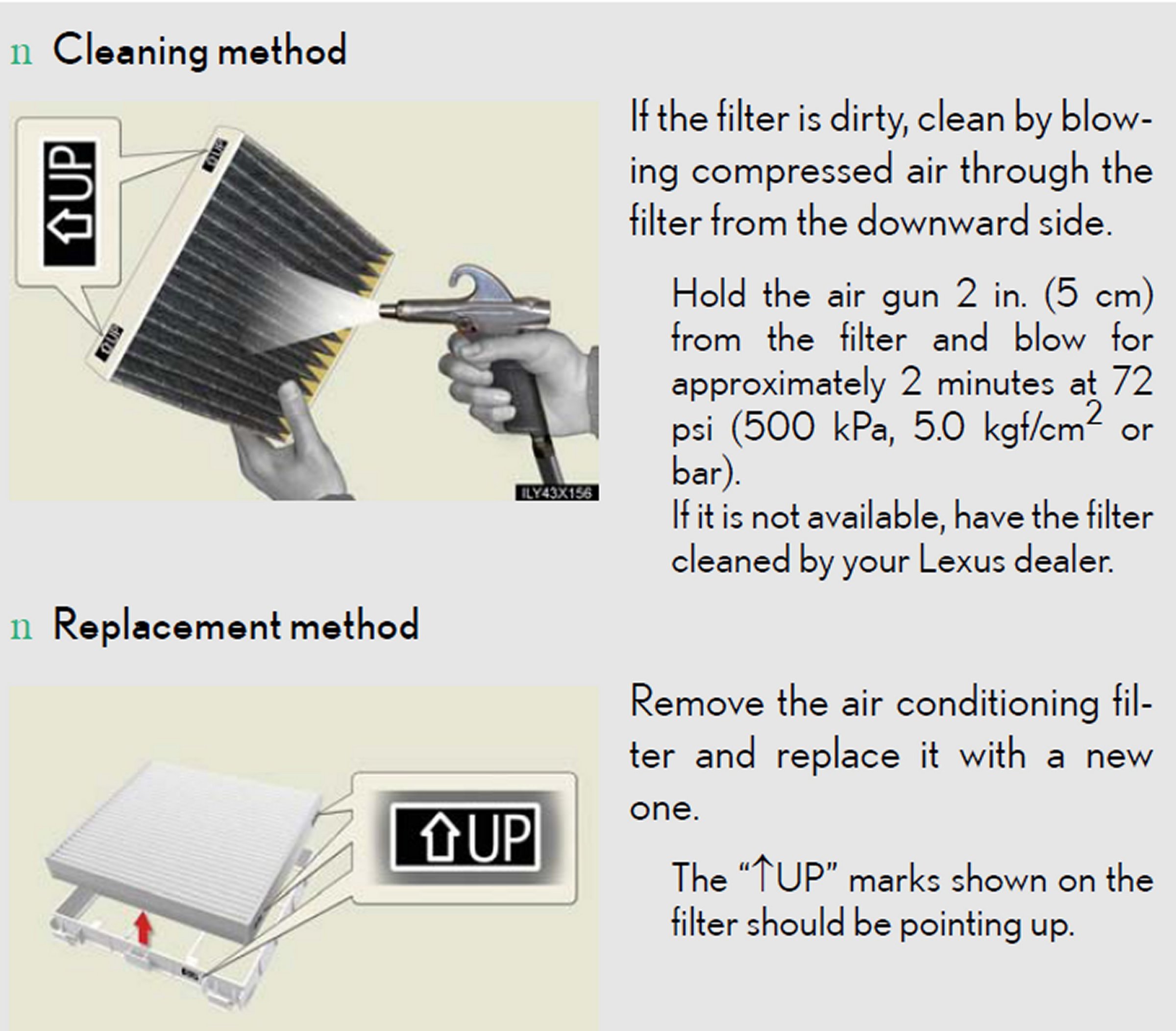

Cleaning or replacement method.


Notice:

To prevent damage to the system when using the air conditioning system, make sure that a filter is always installed. When cleaning the filter, do not clean the filter with water.
