Home >> Lexus Truck >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Variable Valve Timing >> Variable Valve Timing Actuator >> Service and Repair >> Components

Components

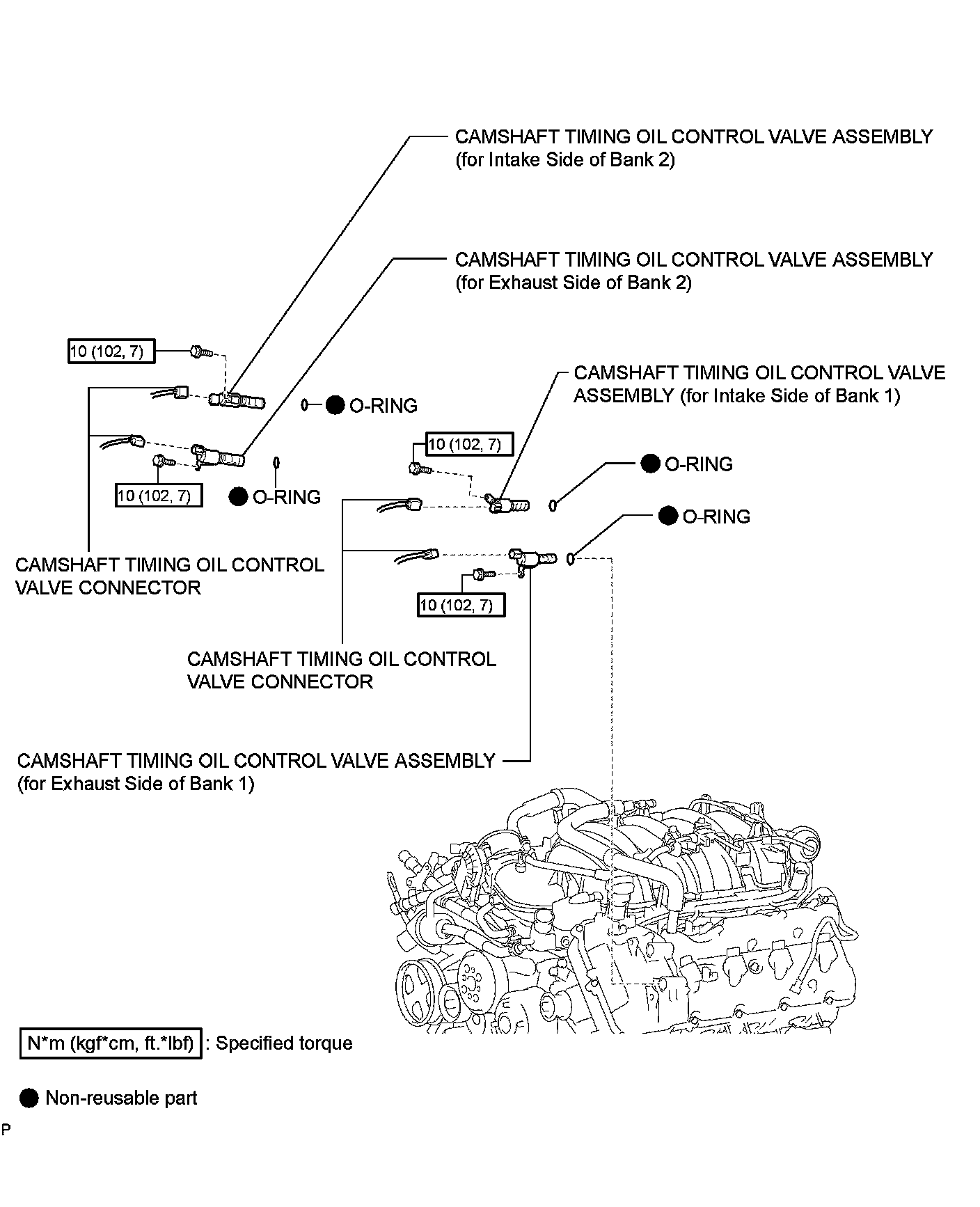

3UR-FE ENGINE CONTROL: CAMSHAFT OIL CONTROL VALVE: COMPONENTS

3UR-FE ENGINE CONTROL: CAMSHAFT OIL CONTROL VALVE: COMPONENTS
