Replacement

3UR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT

1. REPLACE STRAIGHT PIN
NOTICE:
It is not necessary to remove the straight pin unless it is being replaced.

(a) Remove the straight pins.

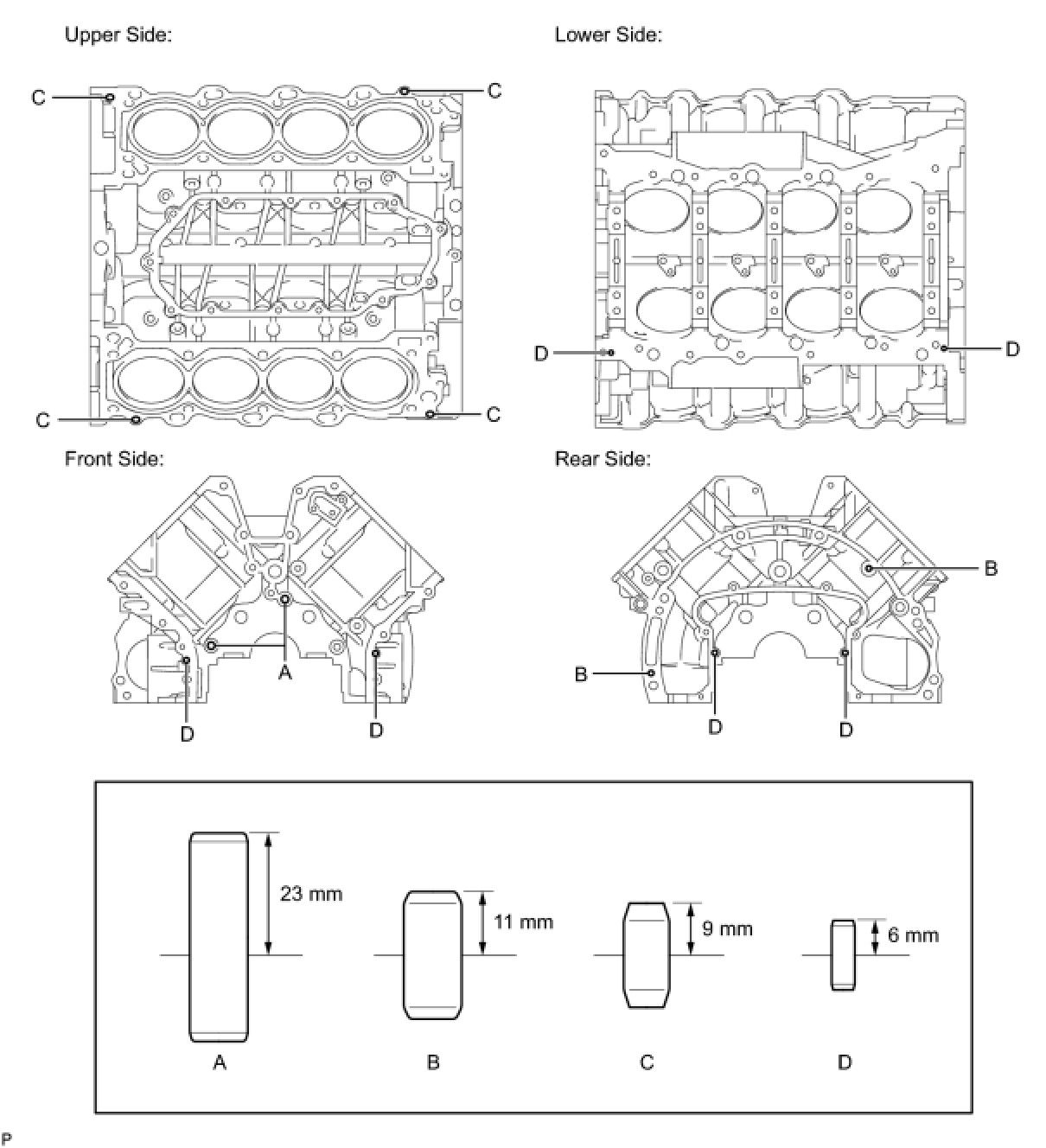

(b) Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

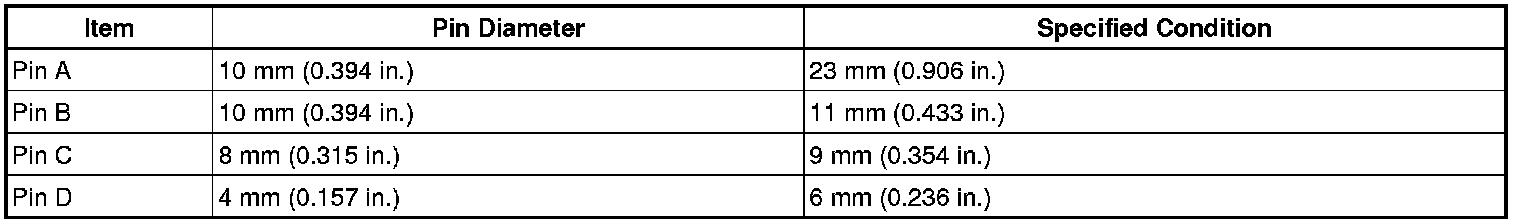

Standard Protrusion:
