Suspension Control Module
Suspension Control Module

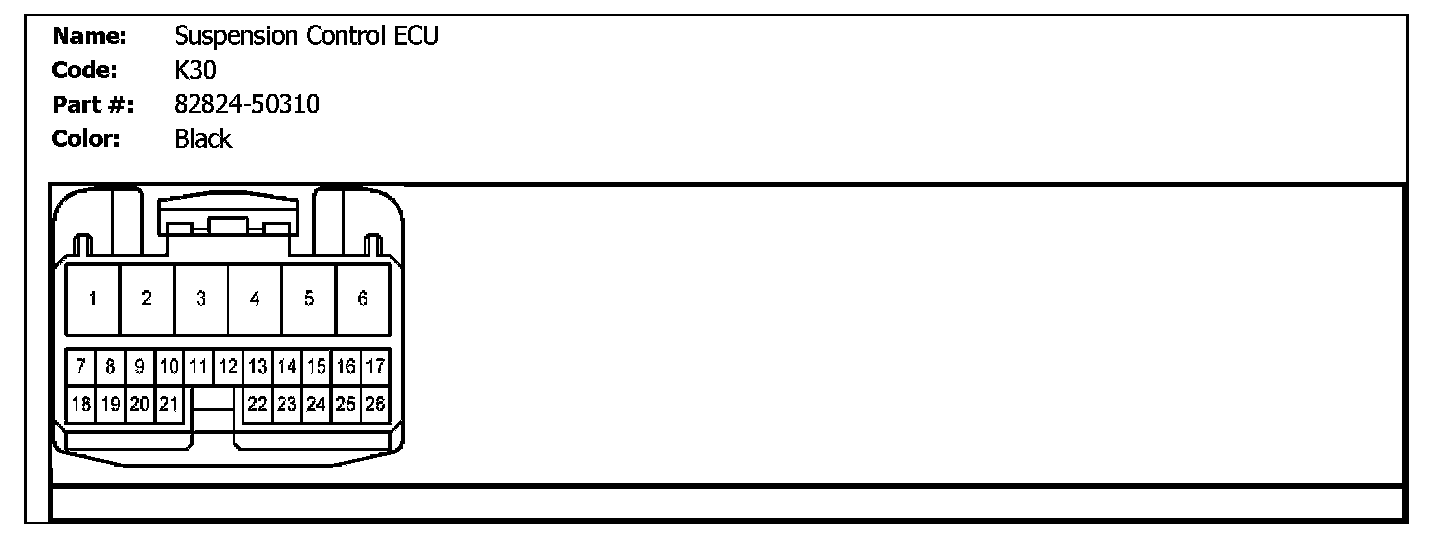

K30 (Suspension Control ECU):

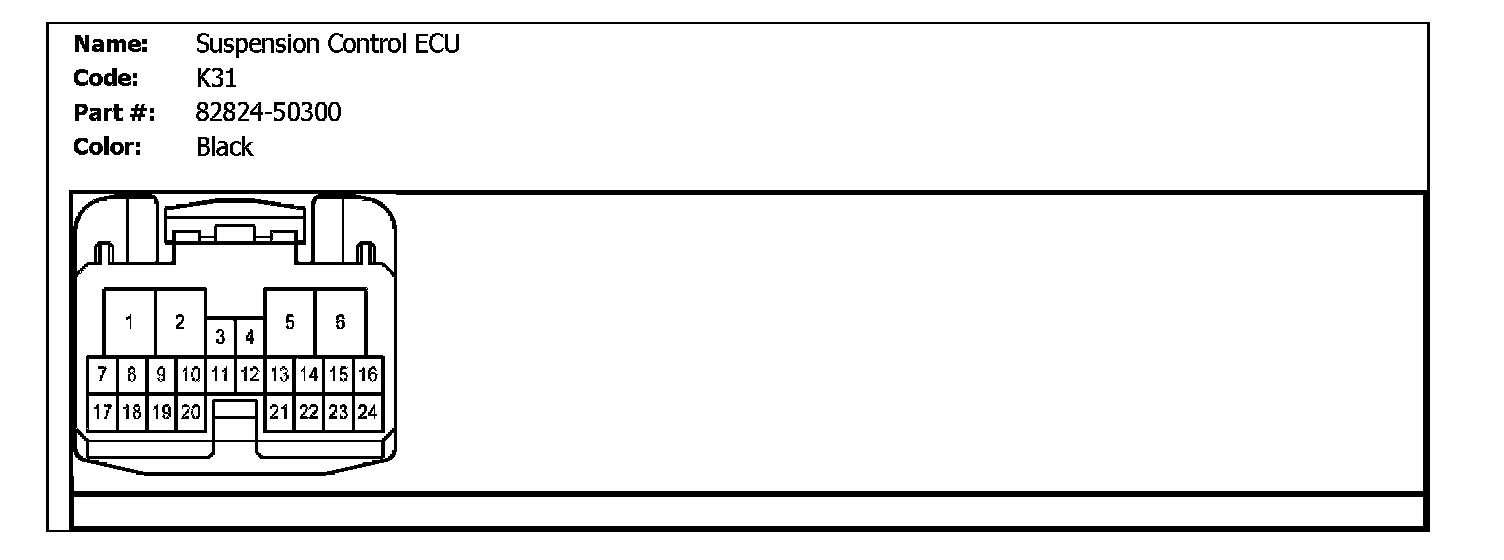

K31 (Suspension Control ECU):

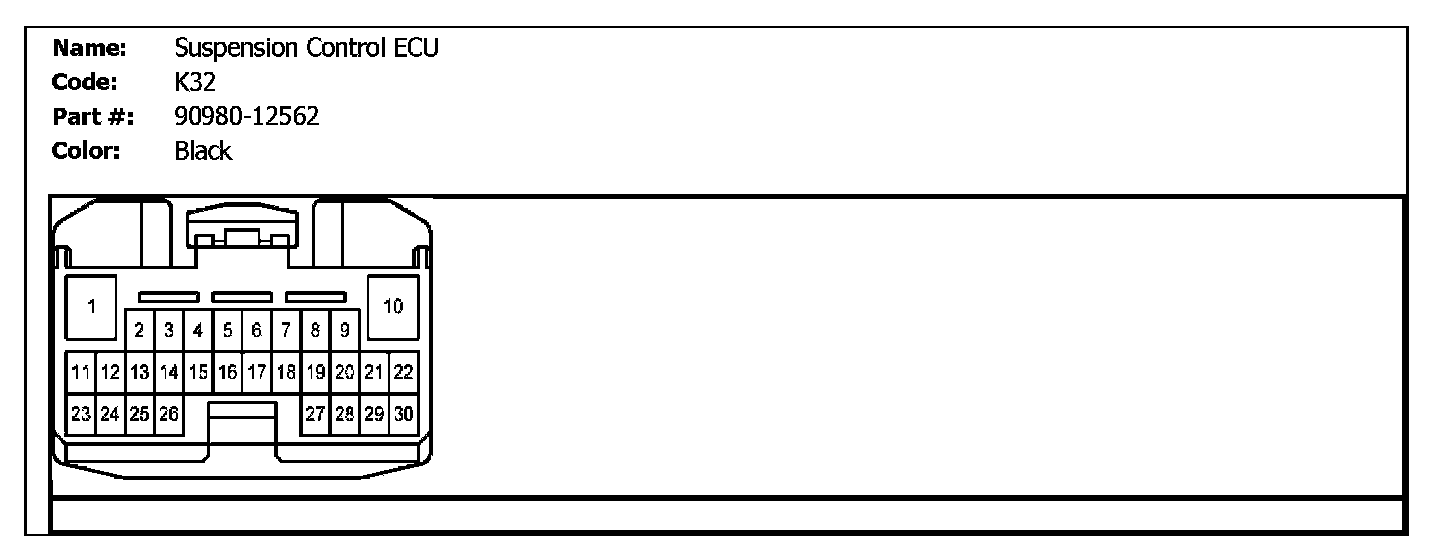

K32 (Suspension Control ECU):
