Seat Temperature Switch
Seat Temperature Switch

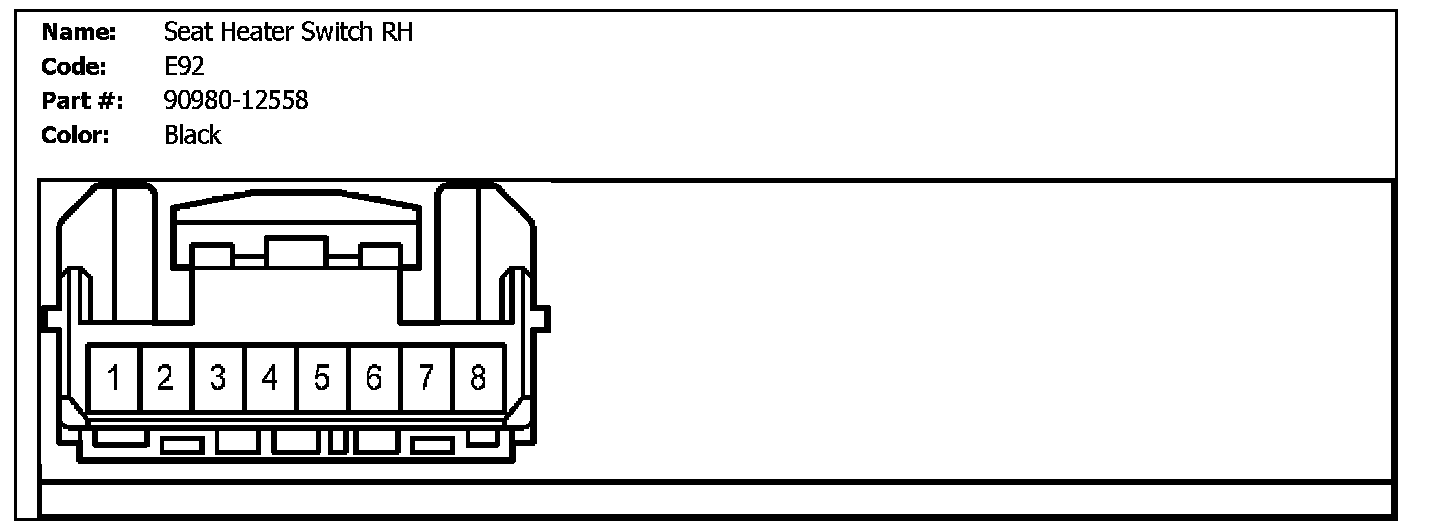

E92 (Seat Heater Switch RH):

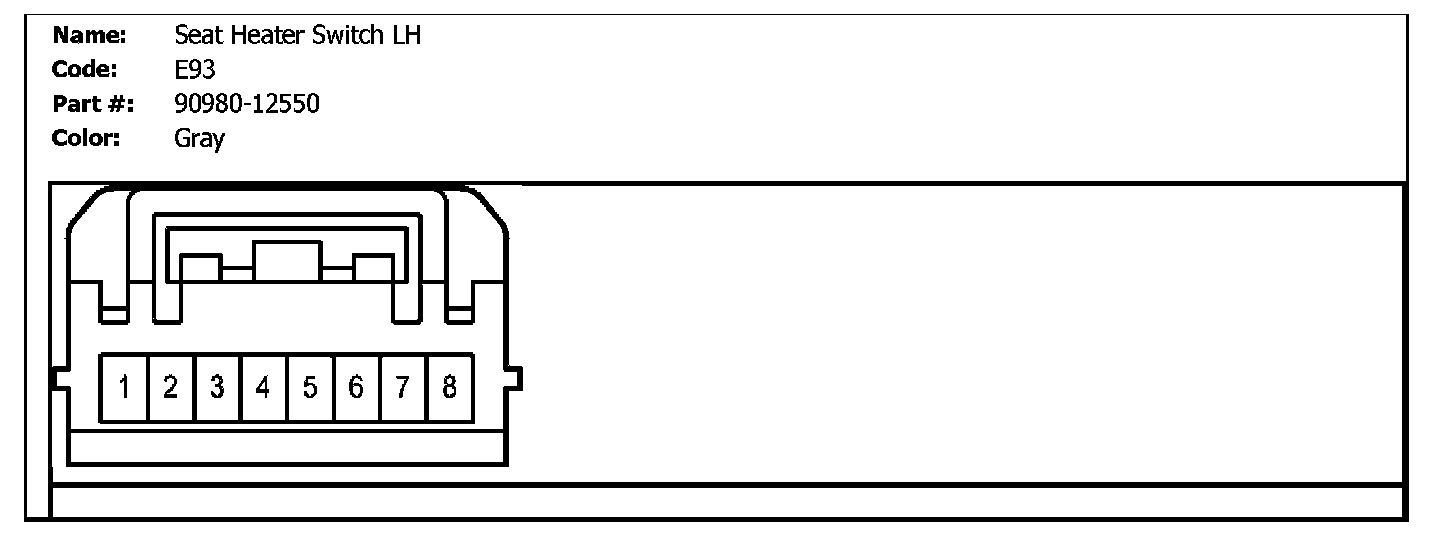

E93 (Seat Heater Switch LH):
