Seat Belt Buckle

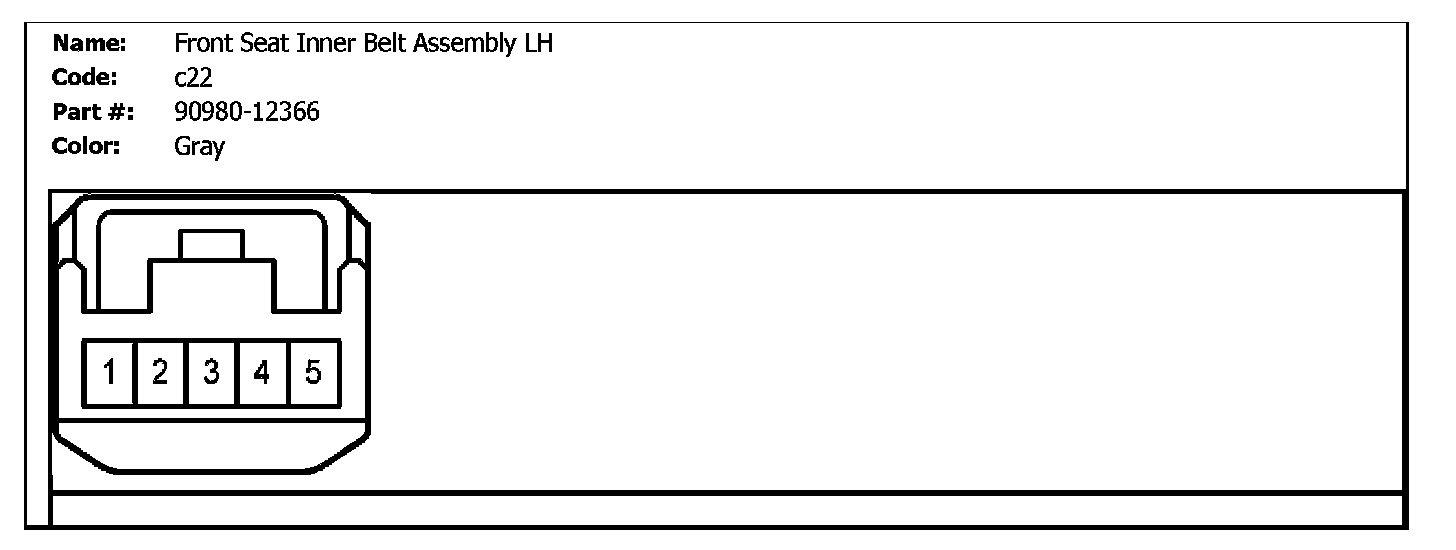

c22 (Front Seat Inner Belt Assembly LH):

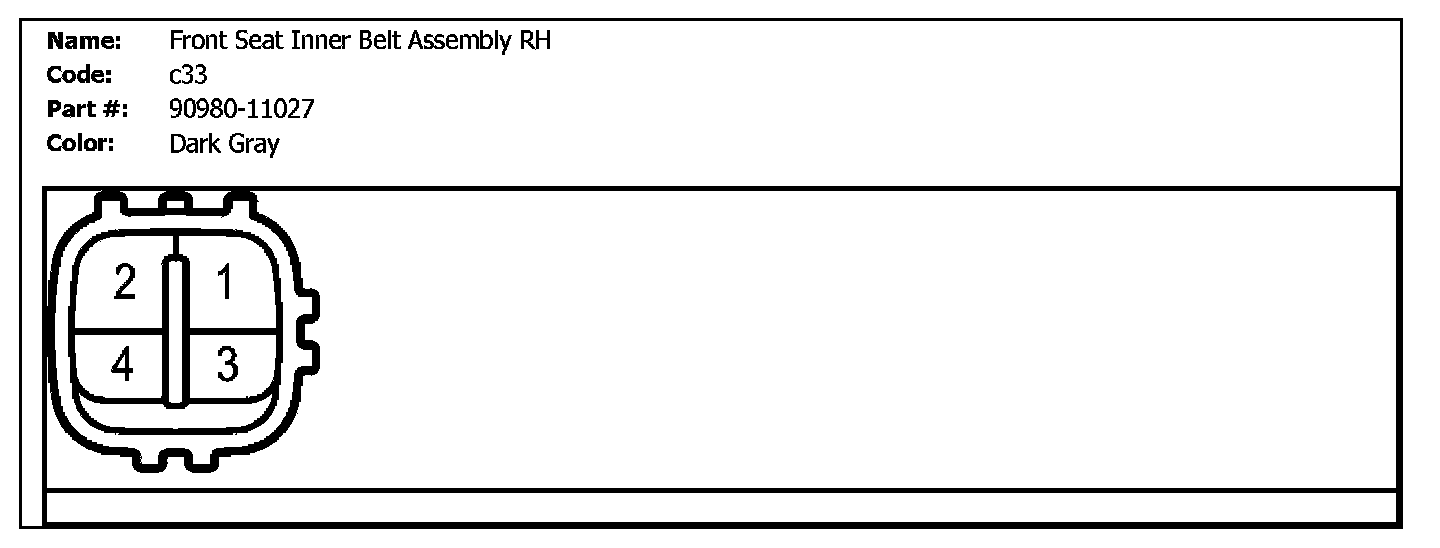

c33 (Front Seat Inner Belt Assembly RH):

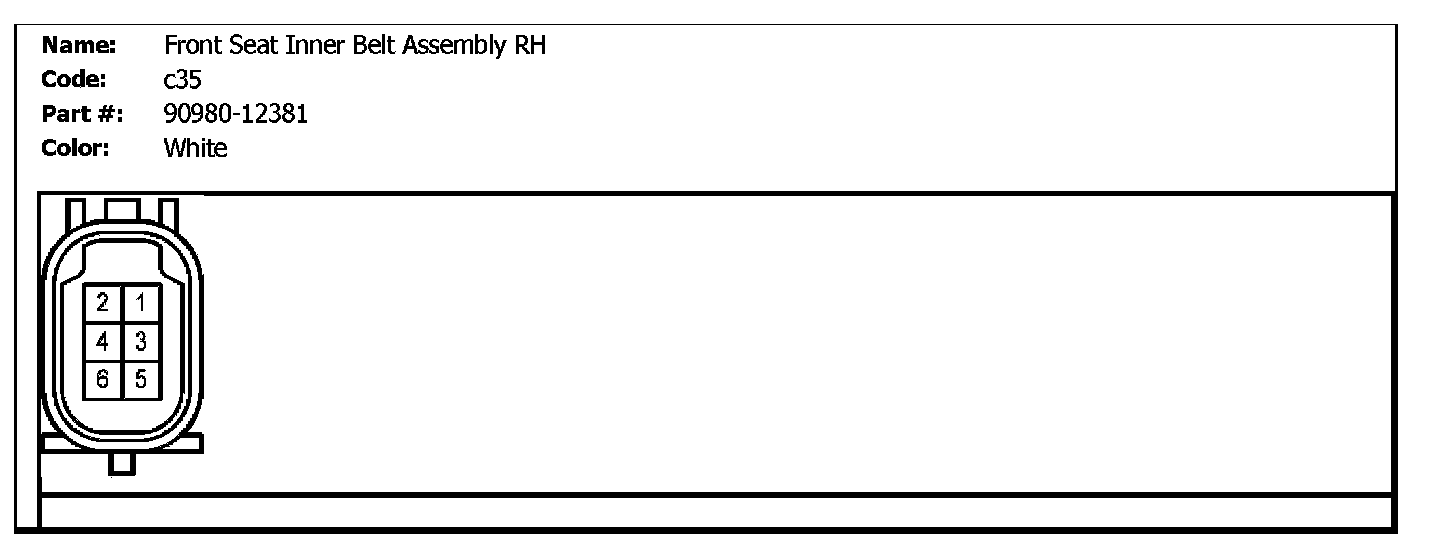

c35 (Front Seat Inner Belt Assembly RH):

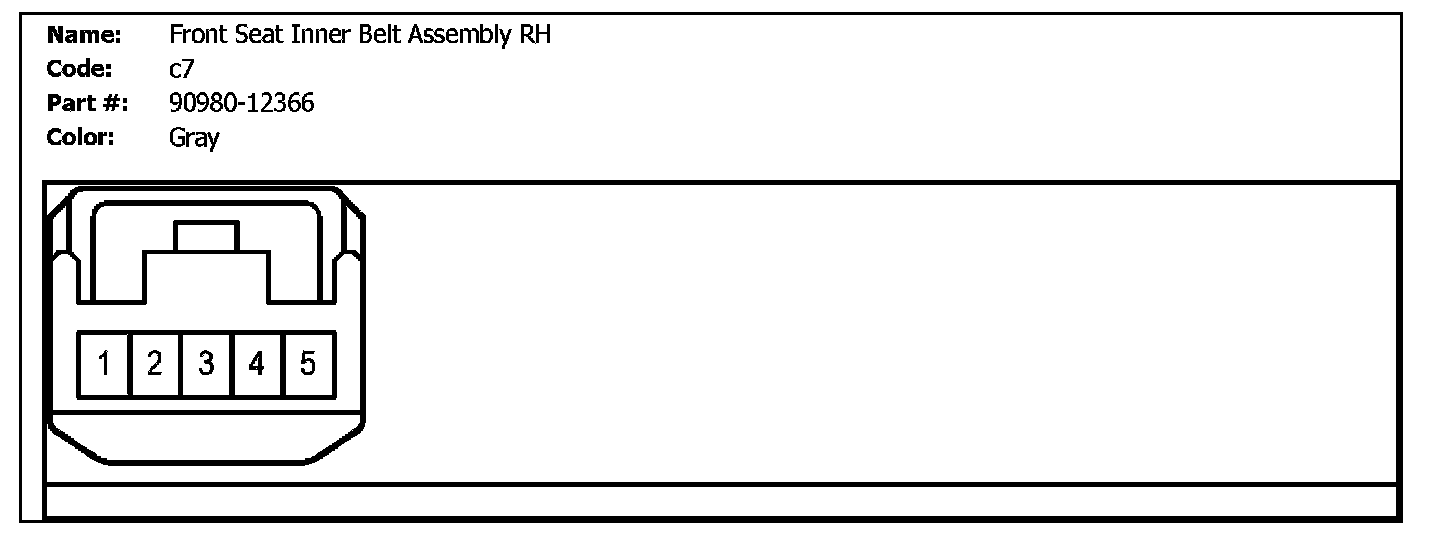

c7 (Front Seat Inner Belt Assembly RH):

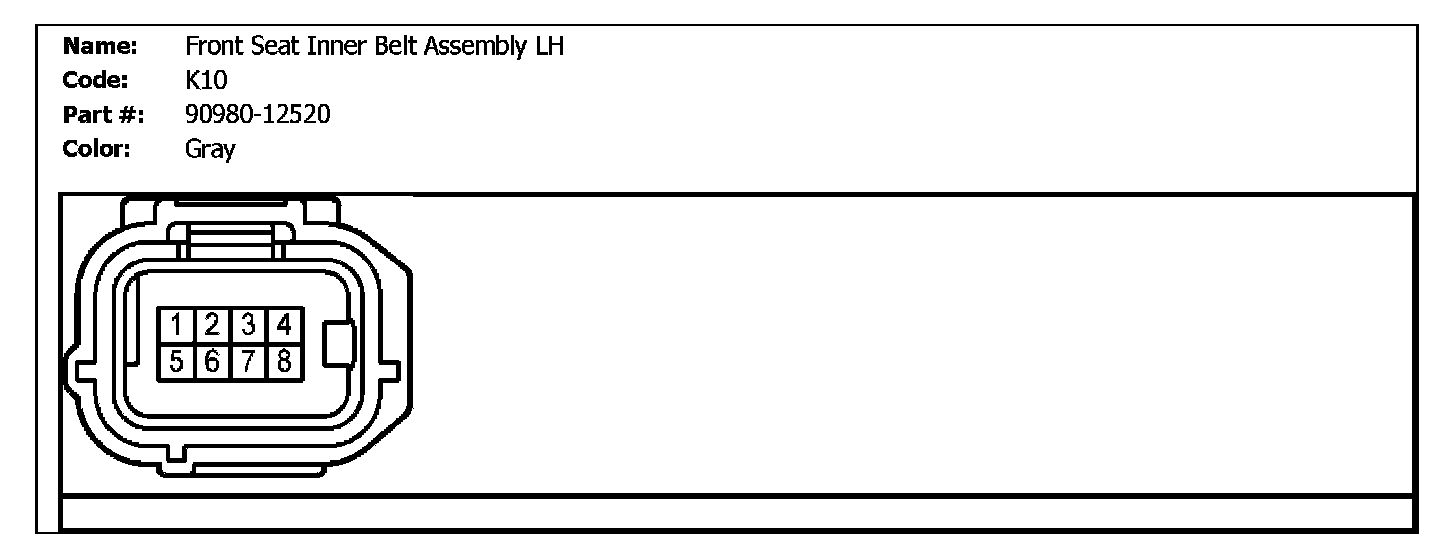

K10 (Front Seat Inner Belt Assembly LH):
