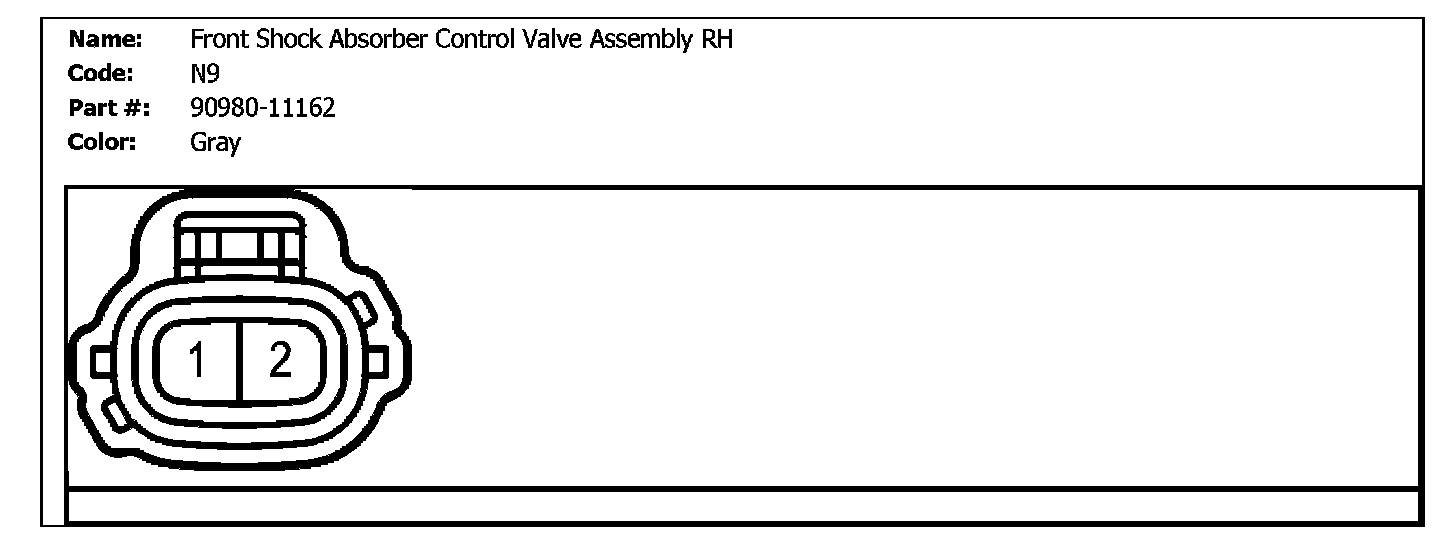

N9 (Front Shock Absorber Control Valve Assembly RH)
N9 (Front Shock Absorber Control Valve Assembly RH)
N9 (Front Shock Absorber Control Valve Assembly RH):
