Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
A-C
>>

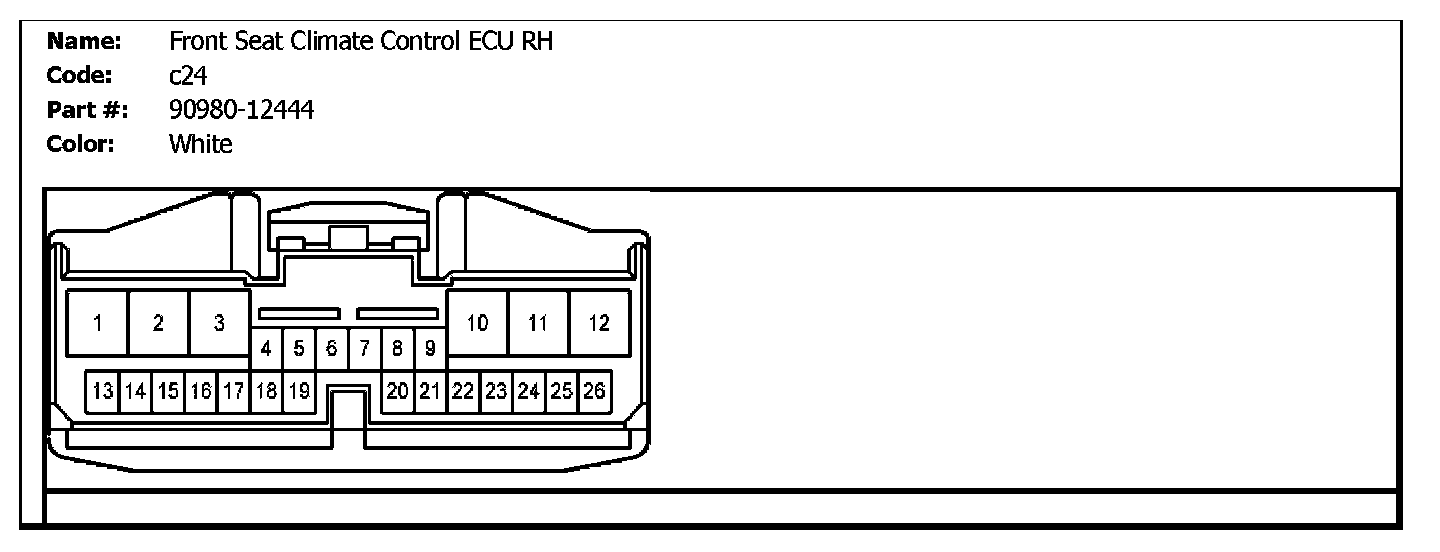

c24 (Front Seat Climate Control ECU RH)
c24 (Front Seat Climate Control ECU RH)
c24 (Front Seat Climate Control ECU RH):
