Disassembly

BRAKE (REAR): REAR BRAKE: DISASSEMBLY

1. REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
2. REMOVE REAR DISC BRAKE BLEEDER PLUG
3. REMOVE CYLINDER BOOT

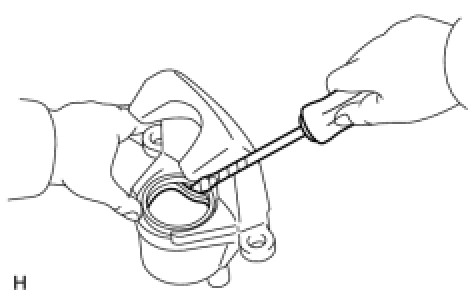

(a) Using a screwdriver, remove the cylinder boot from the cylinder.
HINT:
Tape the screwdriver tip before use.

4. REMOVE REAR DISC BRAKE PISTON

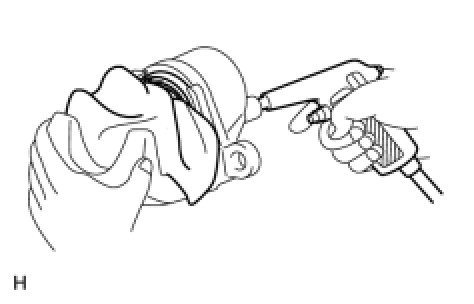

(a) Place a piece of cloth or a similar object between the piston and cylinder.
(b) Use compressed air to remove the piston from the cylinder.
CAUTION:
Do not place your fingers in front of the piston when using compressed air.

5. REMOVE PISTON SEAL

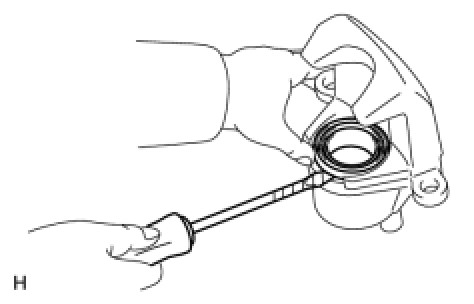

(a) Using a screwdriver, remove the piston seal from the cylinder.
HINT:
Tape the screwdriver tip before use.
NOTICE:
Do not damage the inner cylinder and cylinder groove.
