Installation

BRAKE SYSTEM (OTHER): BRAKE PEDAL: INSTALLATION

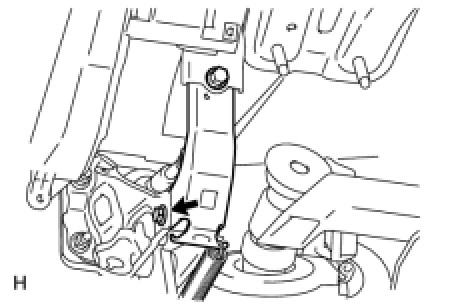

1. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

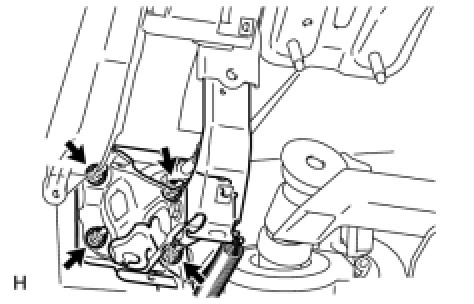

(a) Install the brake pedal support assembly with the 4 nuts.
Torque: 14 Nm (145 kgf-cm, 10 ft-lbf)

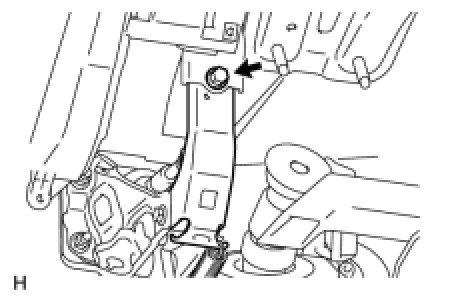

(b) Install the brake pedal support reinforcement set bolt.
Torque: 16 Nm (163 kgf-cm, 12 ft-lbf)

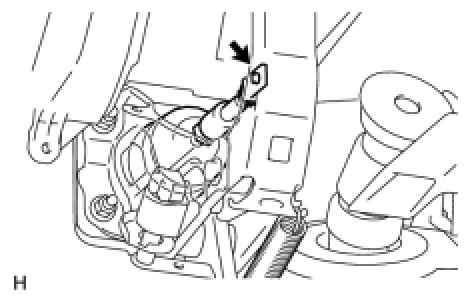

2. INSTALL PUSH ROD PIN
(a) Apply lithium soap base glycol grease to the inner surface of the hole on the brake pedal lever.
(b) Set the master cylinder push rod clevis in place, insert the push rod pin from the outside of the vehicle and then install a new clip.
3. INSTALL STOP LIGHT SWITCH ASSEMBLY
(a) Install the stop light switch Installation.
(b) Connect the stop light switch connector.
4. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

5. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

6. INSTALL COWL SIDE TRIM BOARD LH Installation

7. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

8. INSTALL FRONT DOOR SCUFF PLATE LH Installation

9. CHECK BRAKE PEDAL HEIGHT Adjustments

10. CHECK PEDAL FREE PLAY Adjustments

11. CHECK PEDAL RESERVE DISTANCE Adjustments

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
