VSC Off Switch

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSPECTION

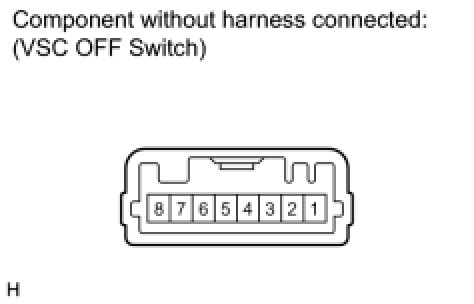

1. INSPECT VSC OFF SWITCH

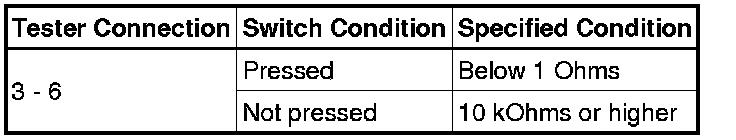

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the value is not as specified, replace the VSC OFF switch.
