Skid Control Buzzer Circuit

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: Skid Control Buzzer Circuit

Skid Control Buzzer Circuit

DESCRIPTION

The skid control buzzer sounds while the accumulator pressure is abnormally low or an abnormality causing low fluid pressure occurs, and the skid control buzzer sounds intermittently while the VSC and hill-start assist control is activated.

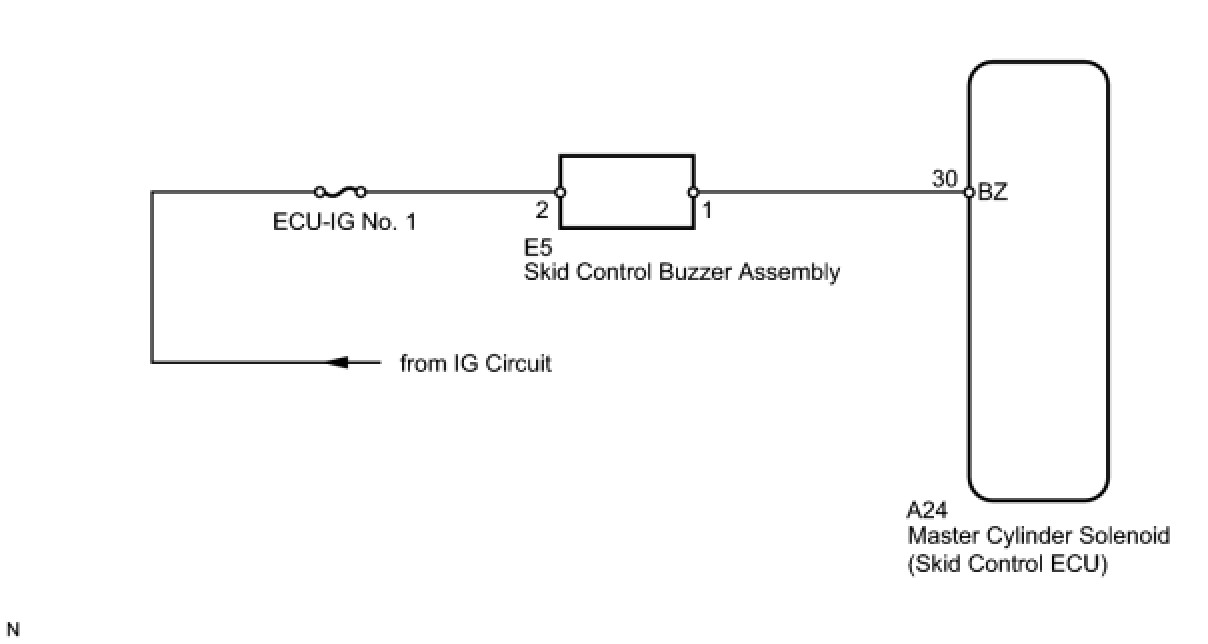

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE:
When replacing the master cylinder solenoid, perform zero point calibration Calibration.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (BUZZER)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Chassis / ABS/VSC/TRAC / Active Test.

ABS/VSC/TRAC





(d) Check that the buzzer sounds/stops when turning the skid control buzzer on/off by using the Techstream.

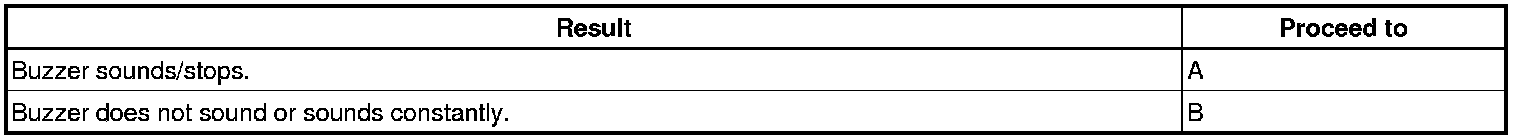

Result





A -- USE SIMULATION METHOD TO CHECK
B -- Continue to next step.
2. INSPECT SKID CONTROL BUZZER (POWER SOURCE TERMINAL)

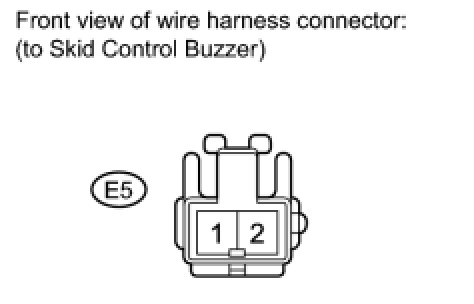

(a) Disconnect the E5 skid control buzzer connector.
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. INSPECT SKID CONTROL BUZZER

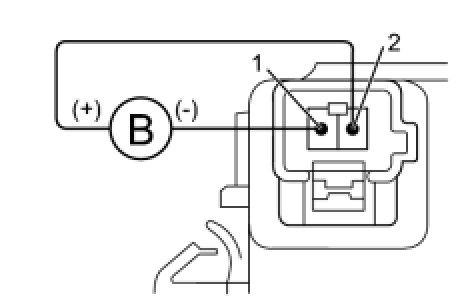

(a) Apply battery voltage to the skid control buzzer, and check that the buzzer sounds.

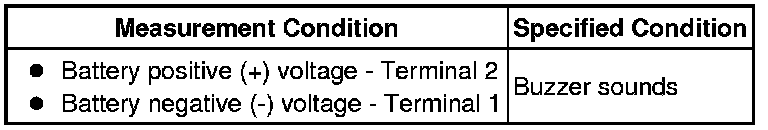

OK:






NG -- REPLACE SKID CONTROL BUZZER ASSEMBLY
OK -- Continue to next step.

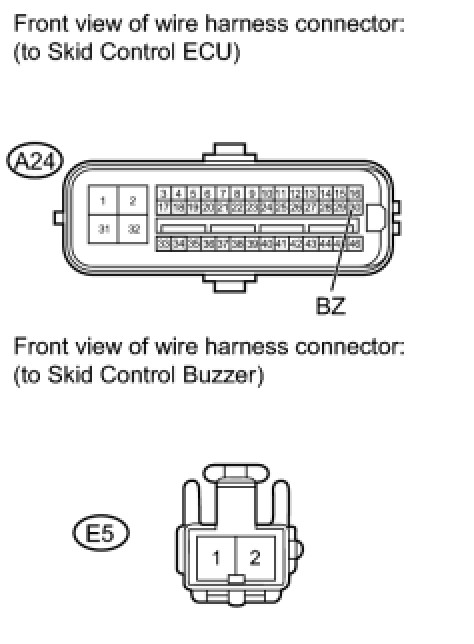

4. CHECK HARNESS AND CONNECTOR (SKID CONTROL BUZZER - SKID CONTROL ECU)





(a) Disconnect the A24 skid control ECU connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE MASTER CYLINDER SOLENOID
