Climate Control Seat System

SEAT: CLIMATE CONTROL SEAT SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
- Use these procedures to troubleshoot the climate control seat system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. INSPECT COMMUNICATION FUNCTION OF LIN COMMUNICATION SYSTEM*
(a) Using the Techstream, check if the LIN communication system is functioning normally.

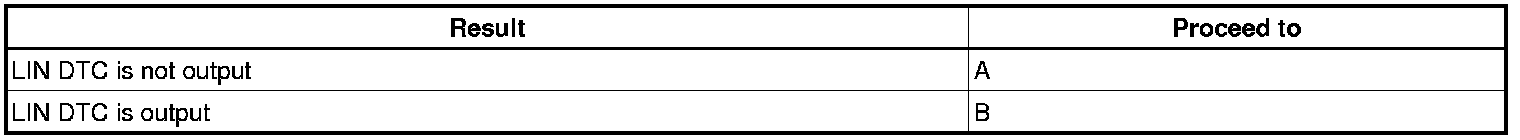

Result





B -- Go to LIN COMMUNICATION SYSTEM
A -- Continue to next step.
4. CHECK FOR DTC*
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(c) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

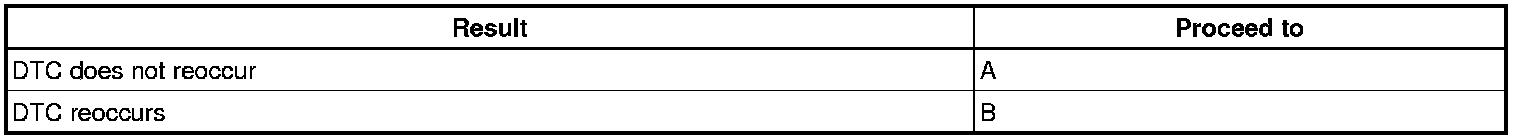

Result





B -- Go to step 7
A -- Continue to next step.
5. PROBLEM SYMPTOMS TABLE

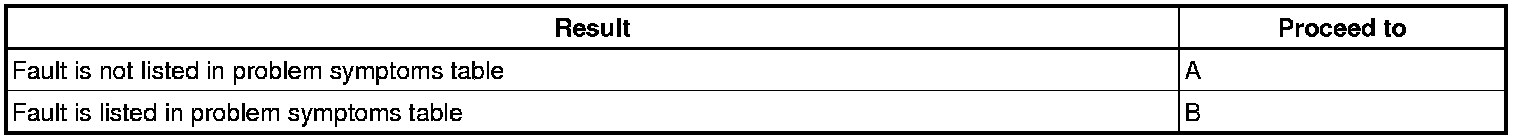

Result





B -- Go to step 7
A -- Continue to next step.
6. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Data List / Active Test Climate Control Seat System.
(b) Terminals of ECU Climate Control Seat System.
(c) Operation Check Climate Control Seat System.
NEXT -- Continue to next step.
7. REPAIR OR REPLACE
NEXT -- Continue to next step.
8. CONFIRMATION TEST
NEXT -- END
