Rear No. 2 Seat Assembly (w/ Automatic Folding-Up Function)
>>
Components
Components

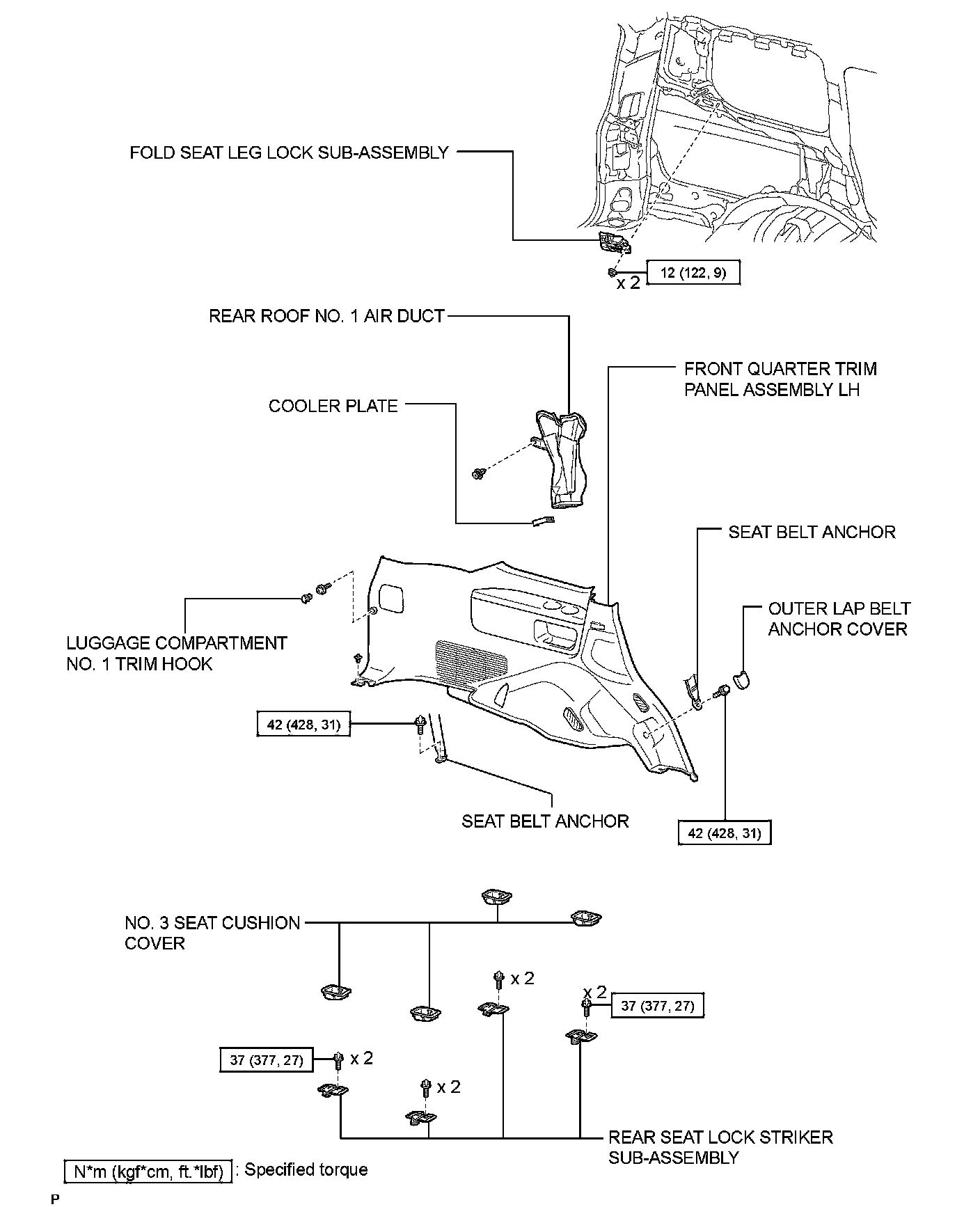

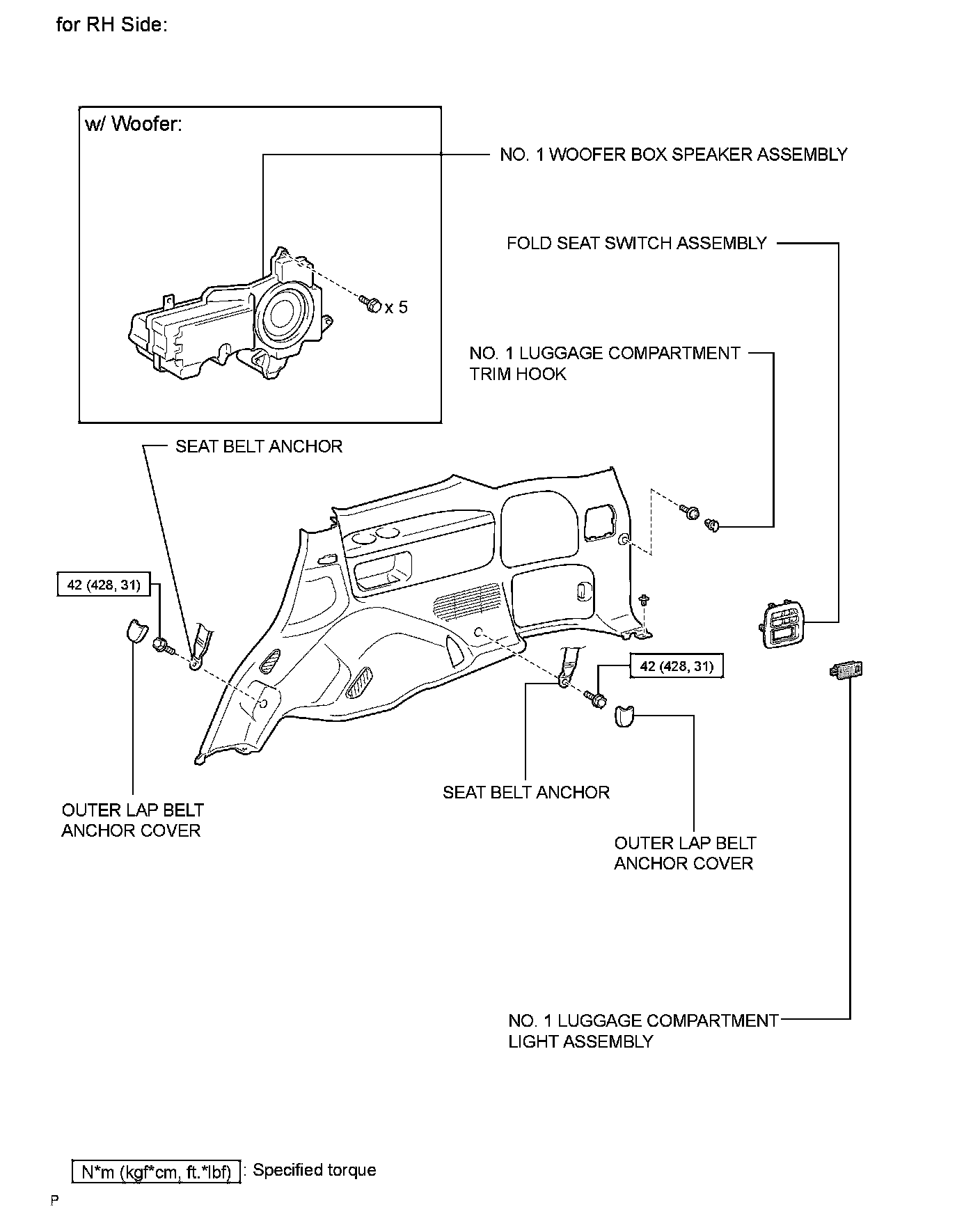

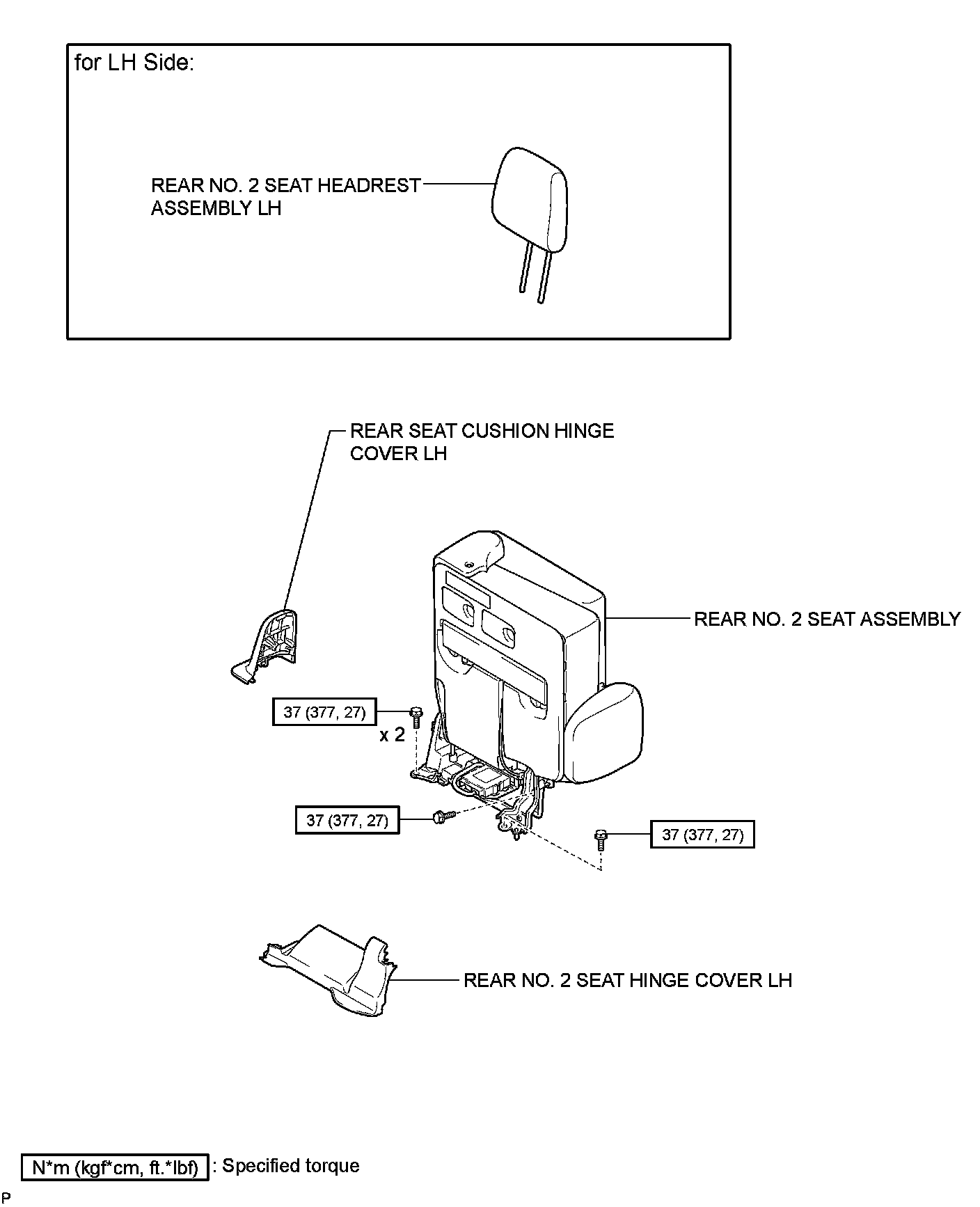

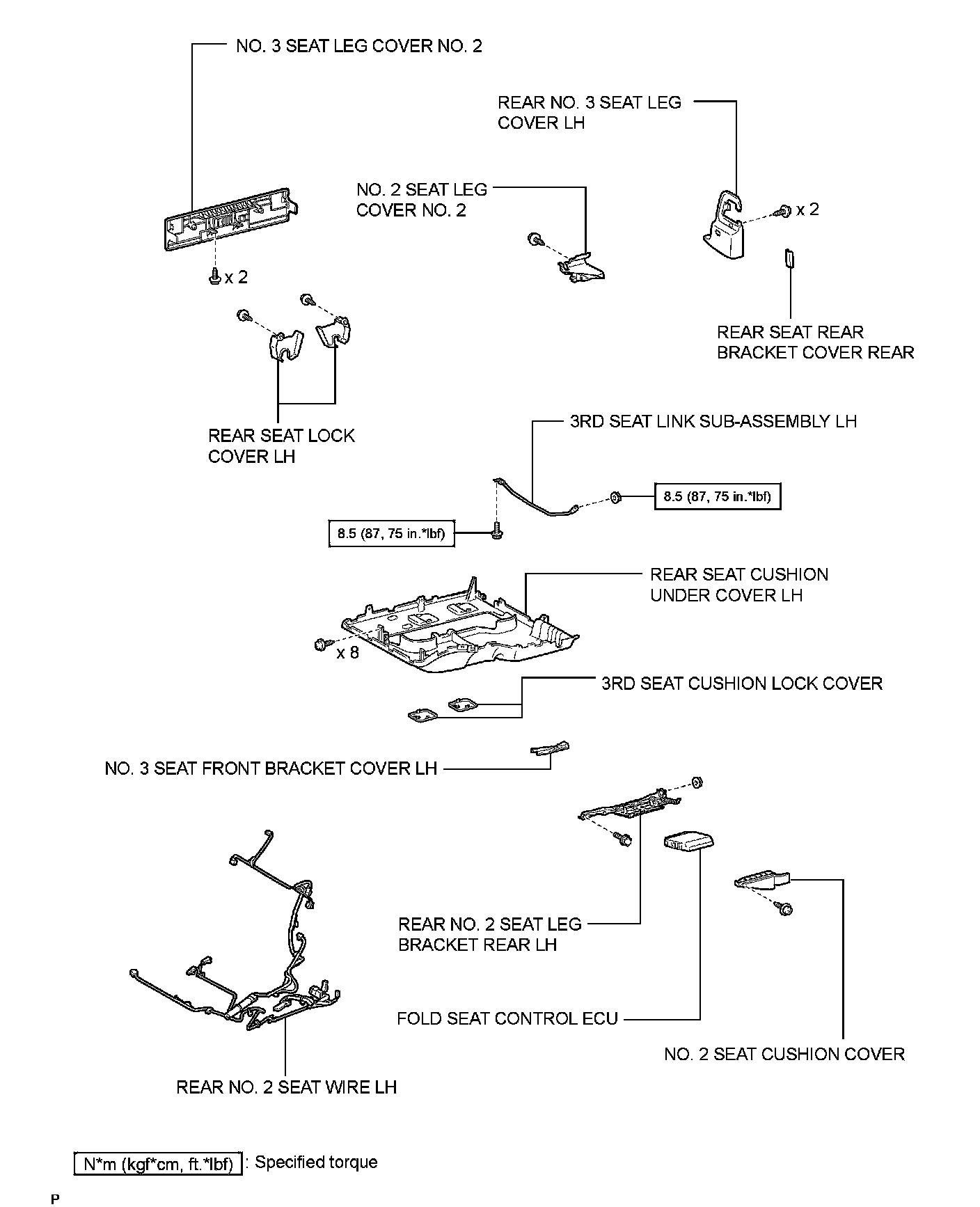

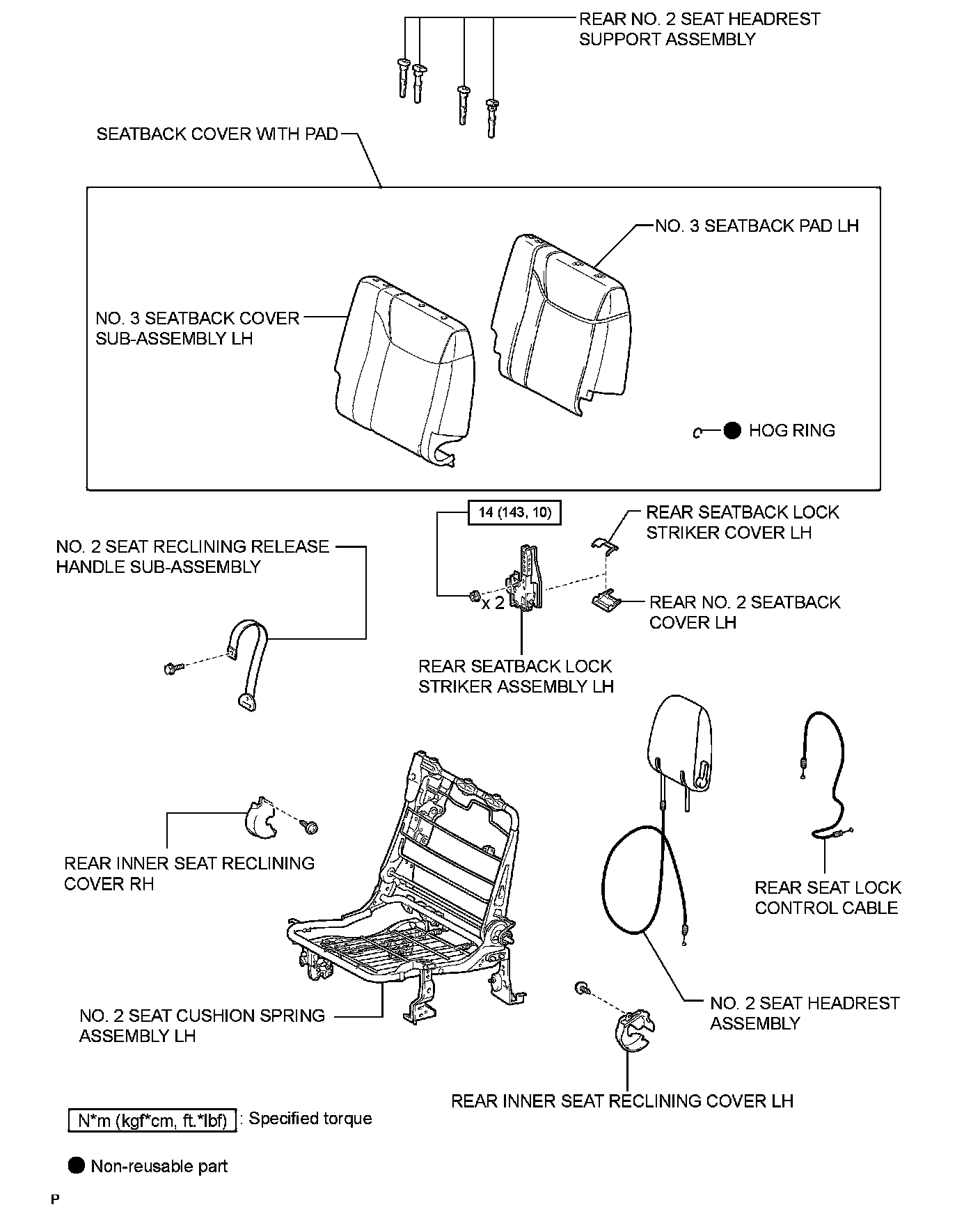

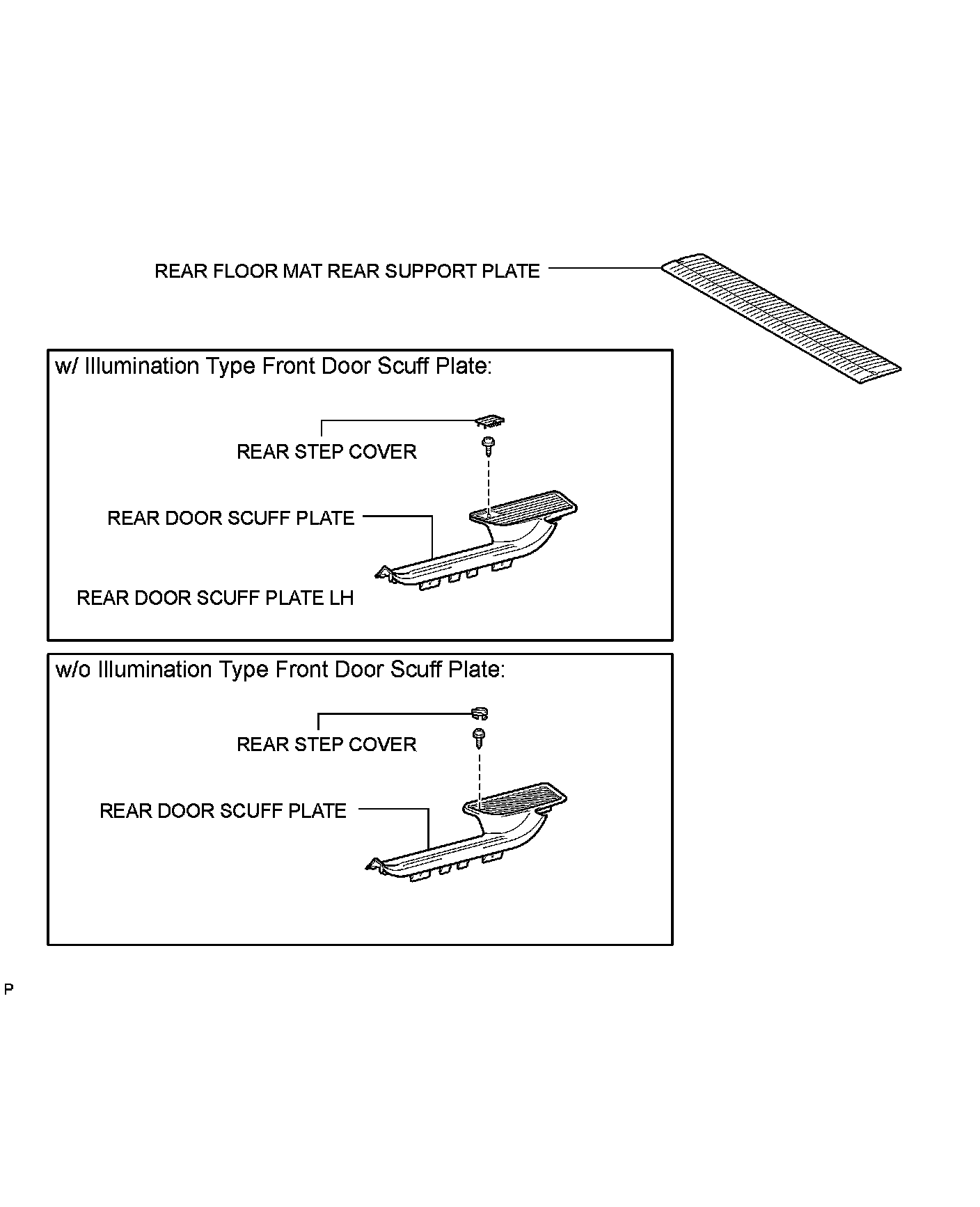

SEAT: REAR NO. 2 SEAT ASSEMBLY (w/ Automatic Folding-up Function): COMPONENTS
