Home >> Lexus Truck >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Locations

Seat Temperature Element: Locations

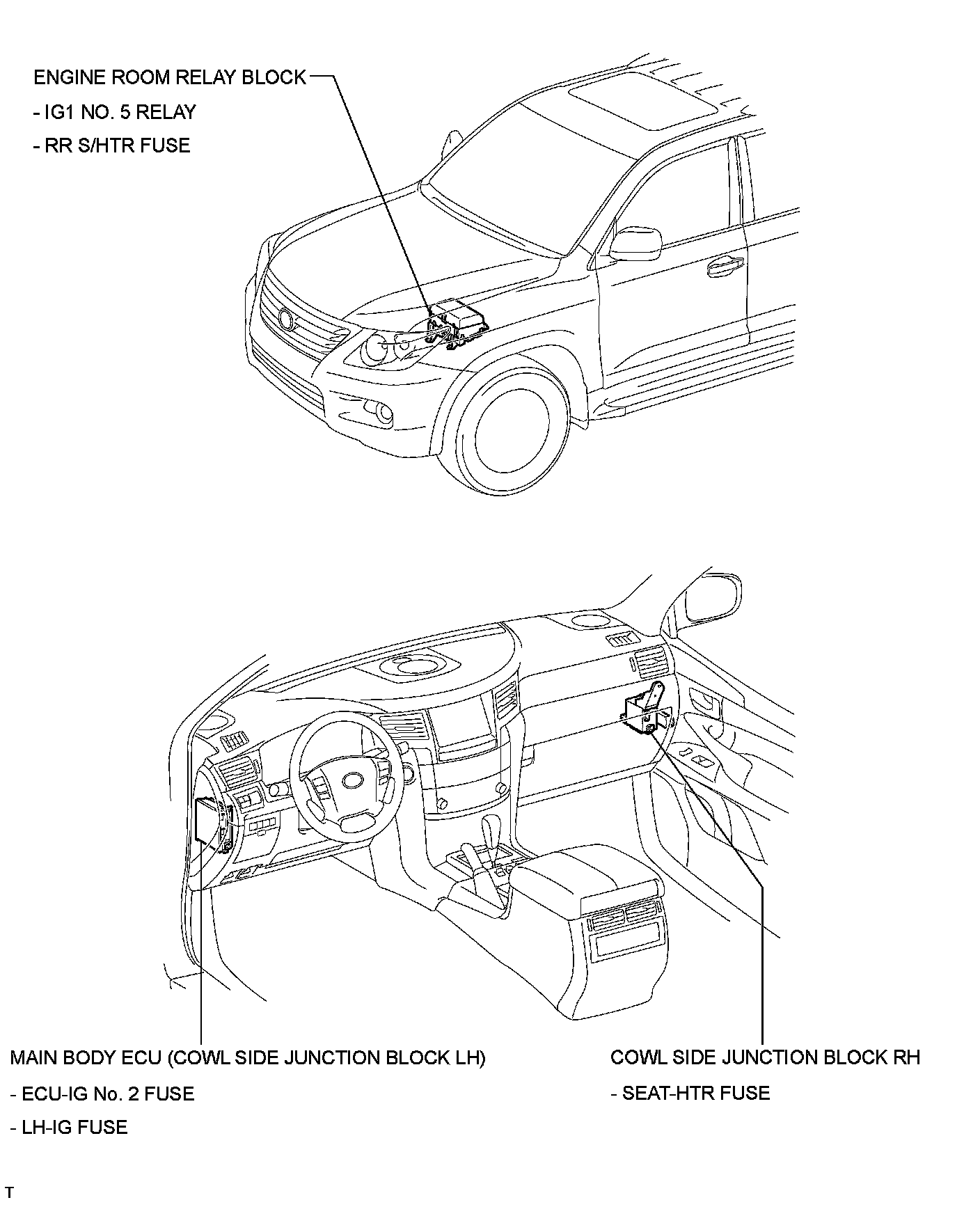

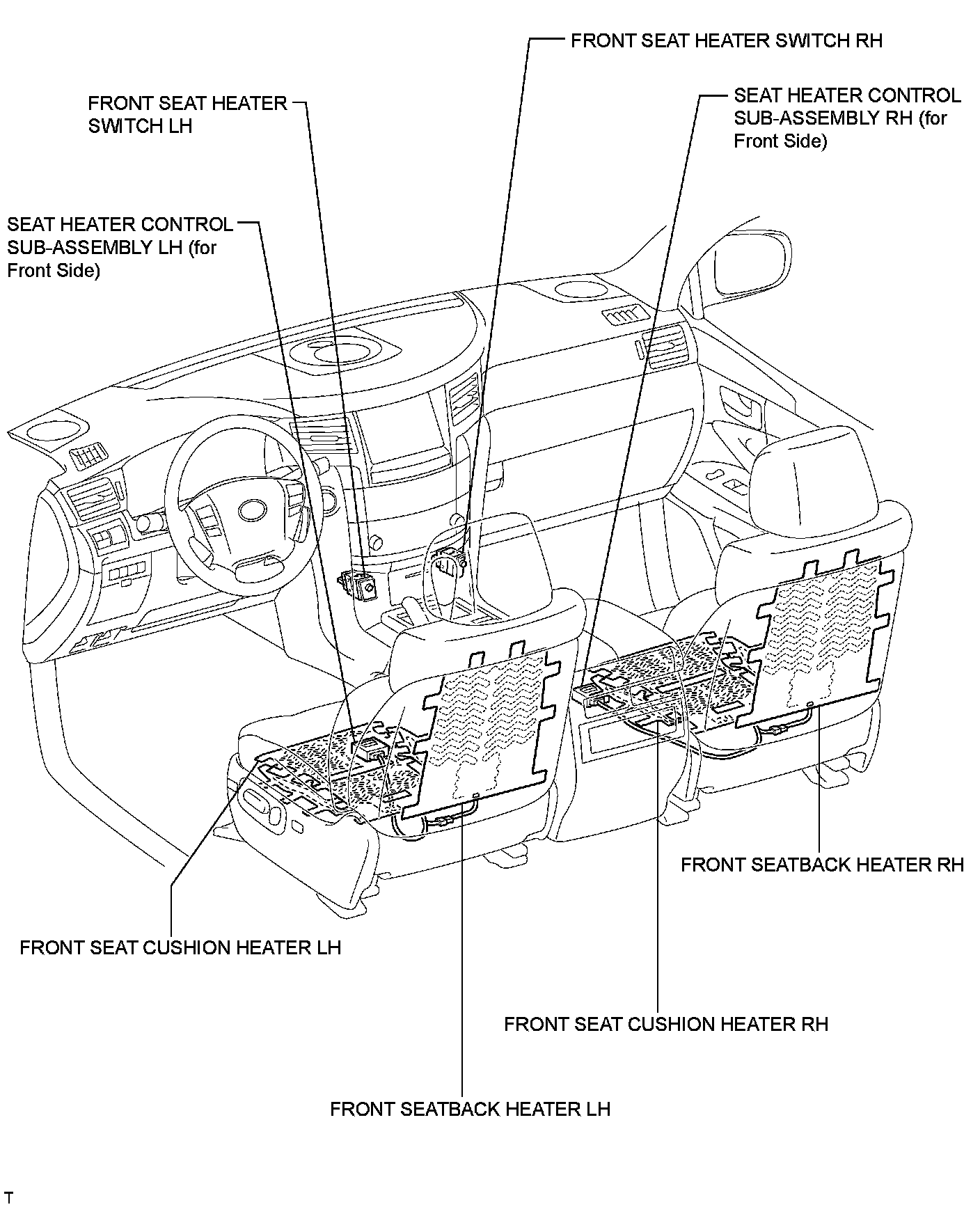

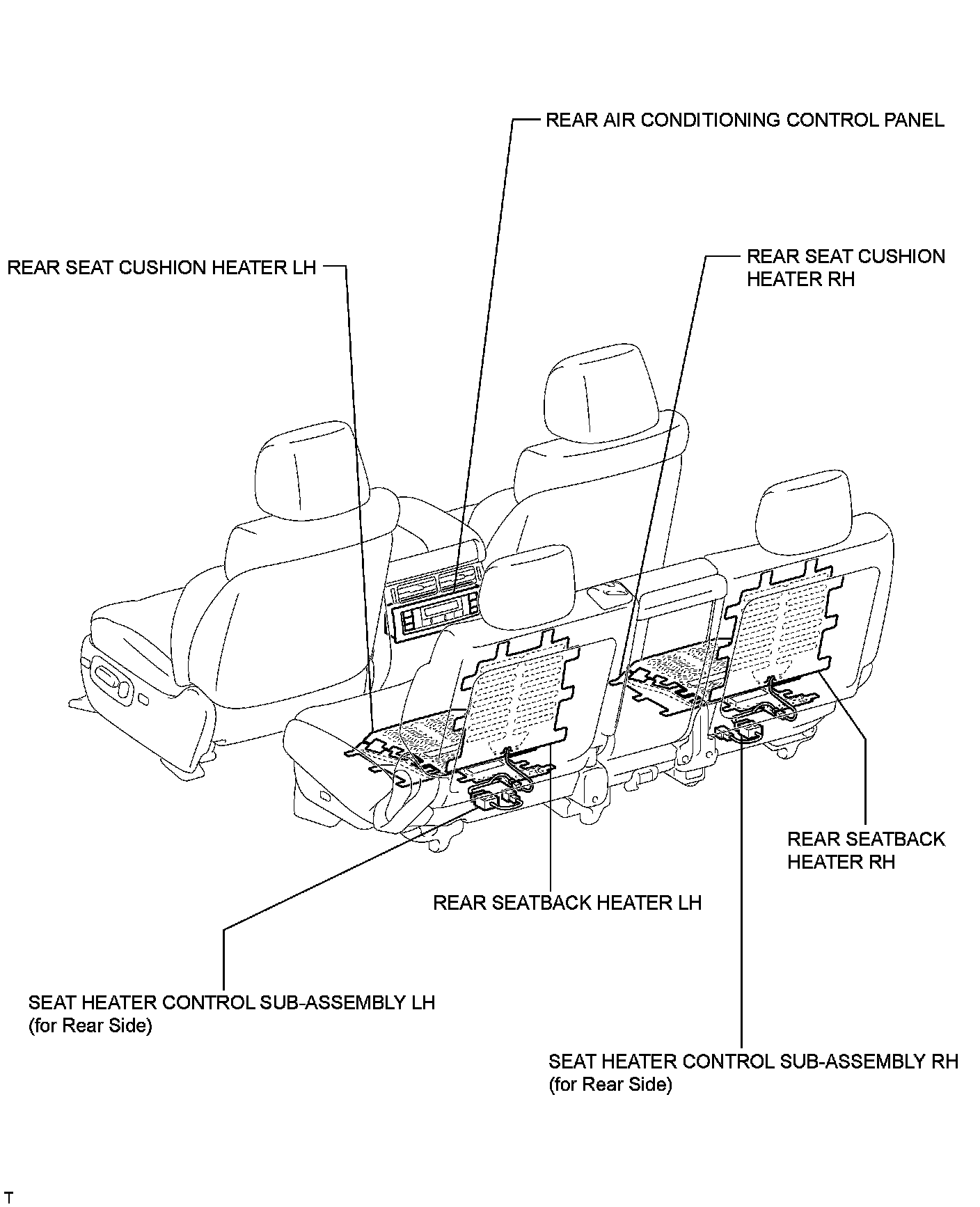

SEAT: SEAT HEATER SYSTEM: PARTS LOCATION
