Power Seat Switch (w/ Manual Folding-Up Function)

SEAT: POWER SEAT SWITCH (w/ Manual Folding-up Function): INSPECTION

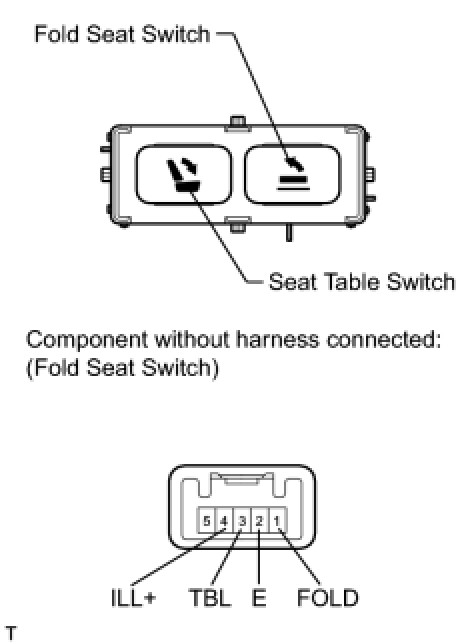

1. INSPECT FOLD SEAT SWITCH ASSEMBLY LH

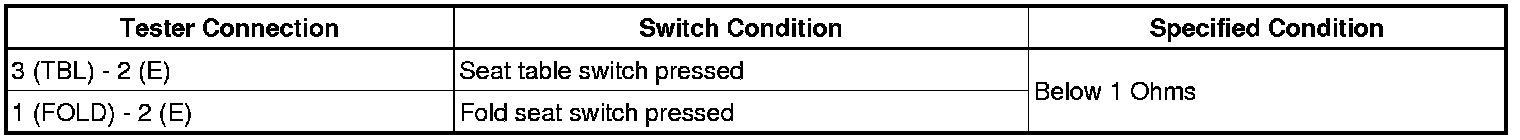

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the fold seat switch assembly.

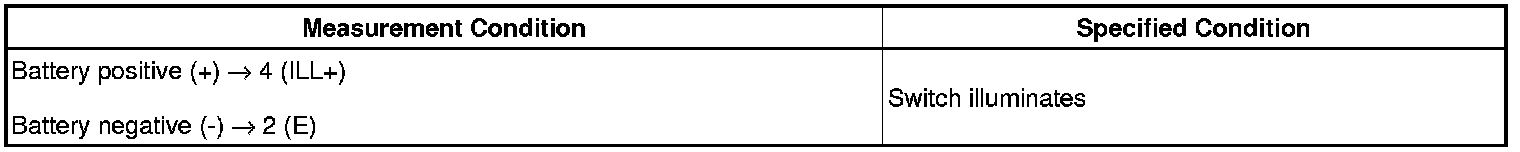

(b) Apply battery voltage to the switch connector, and check that the fold seat switch illuminates.
OK:





If the result is not as specified, replace the fold seat switch assembly.

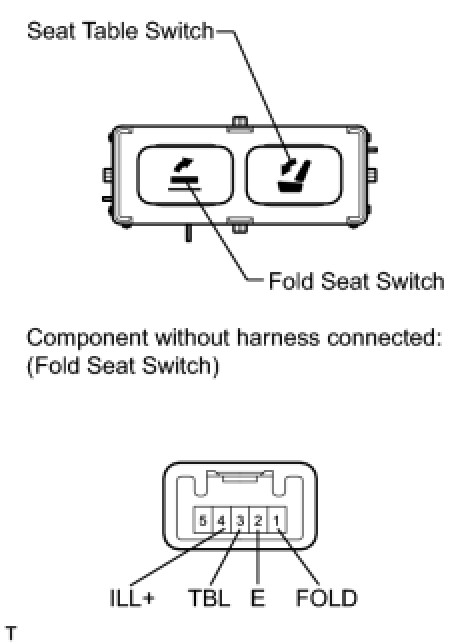

2. INSPECT FOLD SEAT SWITCH ASSEMBLY RH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the fold seat switch assembly.
(b) Apply battery voltage to the switch connector, and check that the fold seat switch illuminates.
OK:





If the result is not as specified, replace the fold seat switch assembly.
