Power Seat Switch (w/ Automatic Folding-Up Function)

SEAT: POWER SEAT SWITCH (w/ Automatic Folding-up Function): INSPECTION

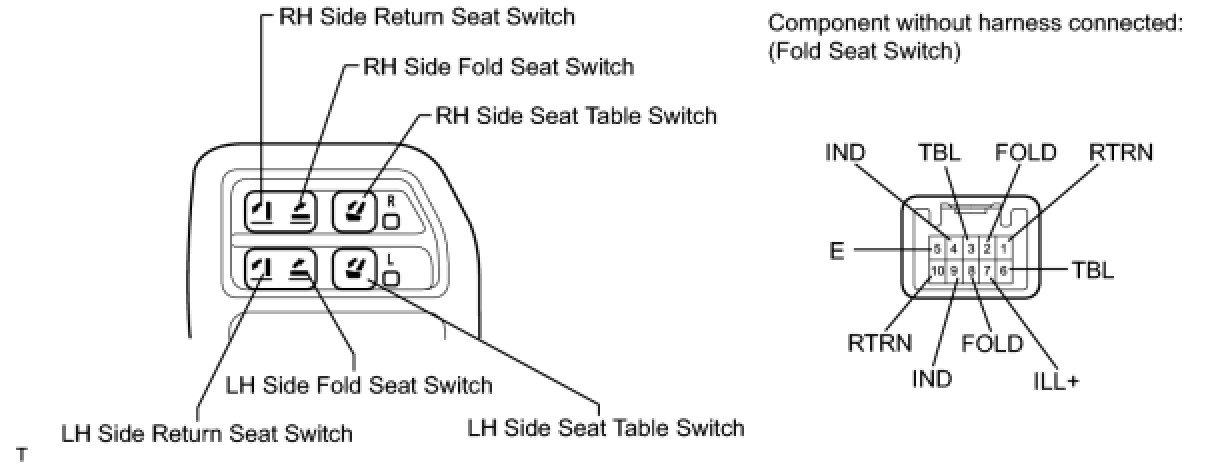

1. INSPECT FOLD SEAT SWITCH ASSEMBLY

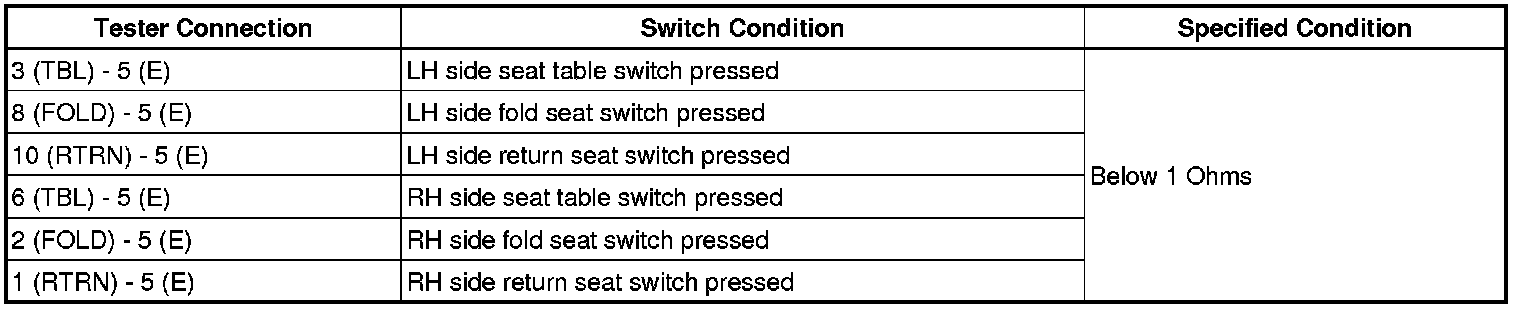

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the fold seat switch assembly.

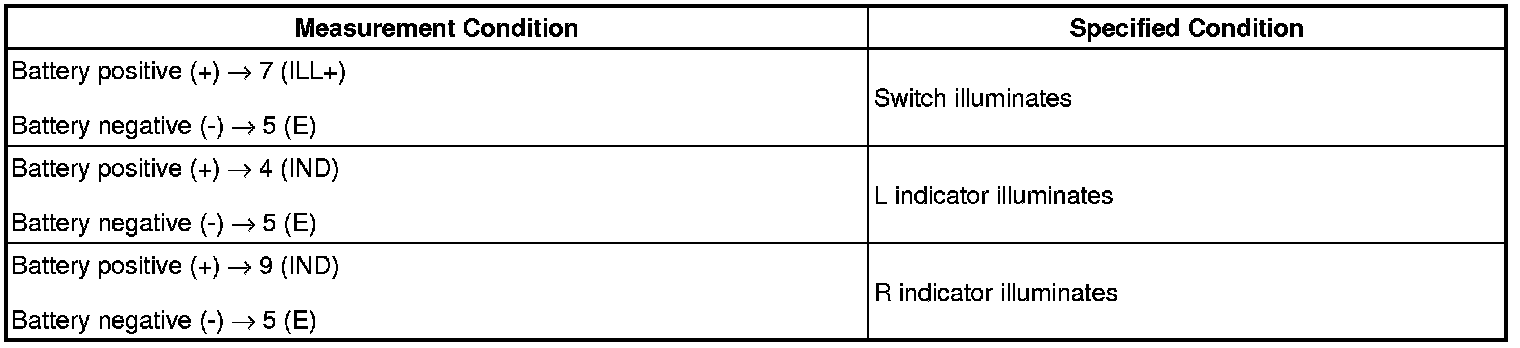

(b) Apply battery voltage to the switch connector, and check that the fold seat switch illuminates.
OK:





If the result is not as specified, replace the fold seat switch assembly.
