Climate Control Seat Switch (w/ Climate Control Seat System)

SEAT: CLIMATE CONTROL SEAT SWITCH (w/ Climate Control Seat System): INSPECTION

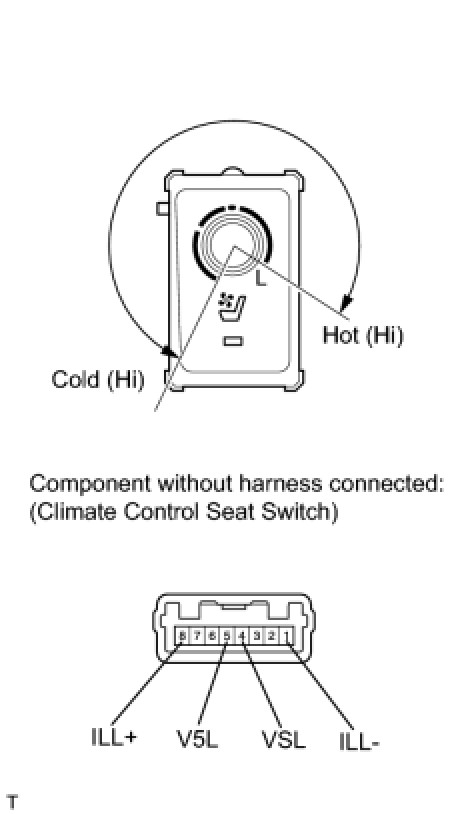

1. INSPECT CLIMATE CONTROL SEAT SWITCH LH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the climate control seat switch.

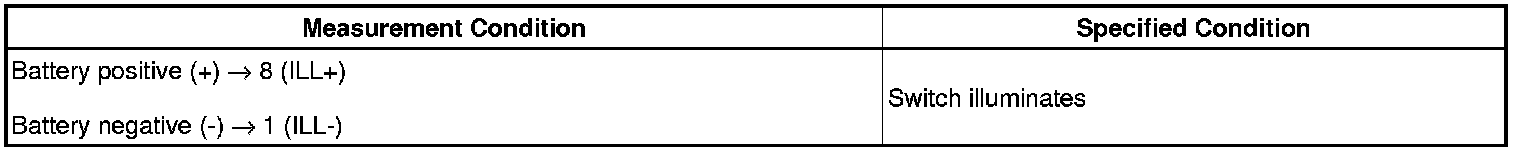

(b) Apply battery voltage to the switch connector, and check that the climate control seat switch illuminates.
OK:





If the result is not as specified, replace the climate control seat switch.

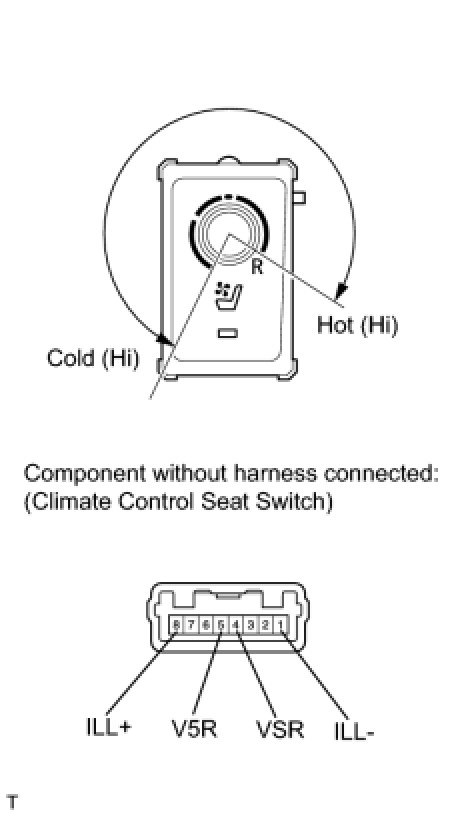

2. INSPECT CLIMATE CONTROL SEAT SWITCH RH
(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the climate control seat switch.
(b) Apply battery voltage to the switch connector, and check that the climate control seat switch illuminates.
OK:





If the result is not as specified, replace the climate control seat switch.
