SEAT: POWER SEAT SWITCH (w/ Manual Folding-up Function): INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.





1. INSTALL FOLD SEAT SWITCH ASSEMBLY

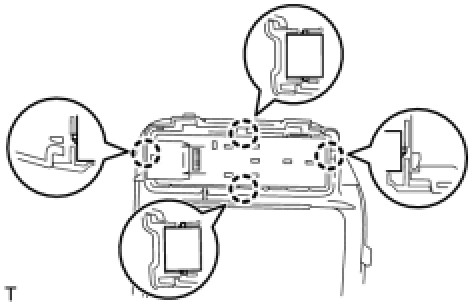

(a) Attach the 4 claws to install the switch.
2. INSTALL REAR NO. 2 SEAT COVER BEZEL Installation

3. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH Installation

4. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation

5. INSTALL REAR SEAT COVER CAP Installation

6. INSTALL LUGGAGE COMPARTMENT NO. 1 TRIM HOOK Installation

7. INSTALL REAR FLOOR MAT SUPPORT PLATE Installation

8. INSTALL REAR DOOR SCUFF PLATE LH Installation

9. INSTALL REAR STEP COVER Installation

10. INSTALL REAR NO. 2 SEAT ASSEMBLY Installation

11. INSTALL REAR NO. 2 SEAT HINGE COVER LH Installation

12. INSTALL REAR SEAT CUSHION HINGE COVER LH Installation

13. INSTALL REAR NO. 2 SEAT HEADREST ASSEMBLY LH
