Installation

SEAT: POWER SEAT SWITCH (w/ Automatic Folding-up Function): INSTALLATION

1. INSTALL FOLD SEAT SWITCH ASSEMBLY





(a) Attach the claw to install the light.

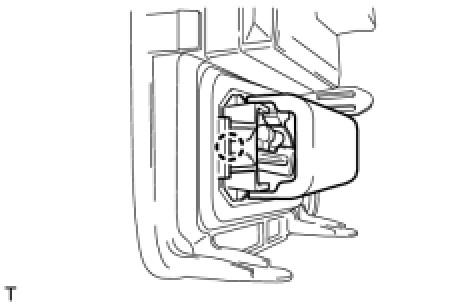

(b) Connect the connector.

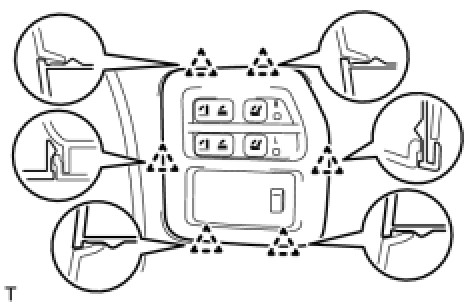

(c) Attach the 6 clips to install the fold seat switch.
