Lexus Truck
>>
2008
>>
LX 570 V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Motor
>>
Service and Repair
>>
Components
Components

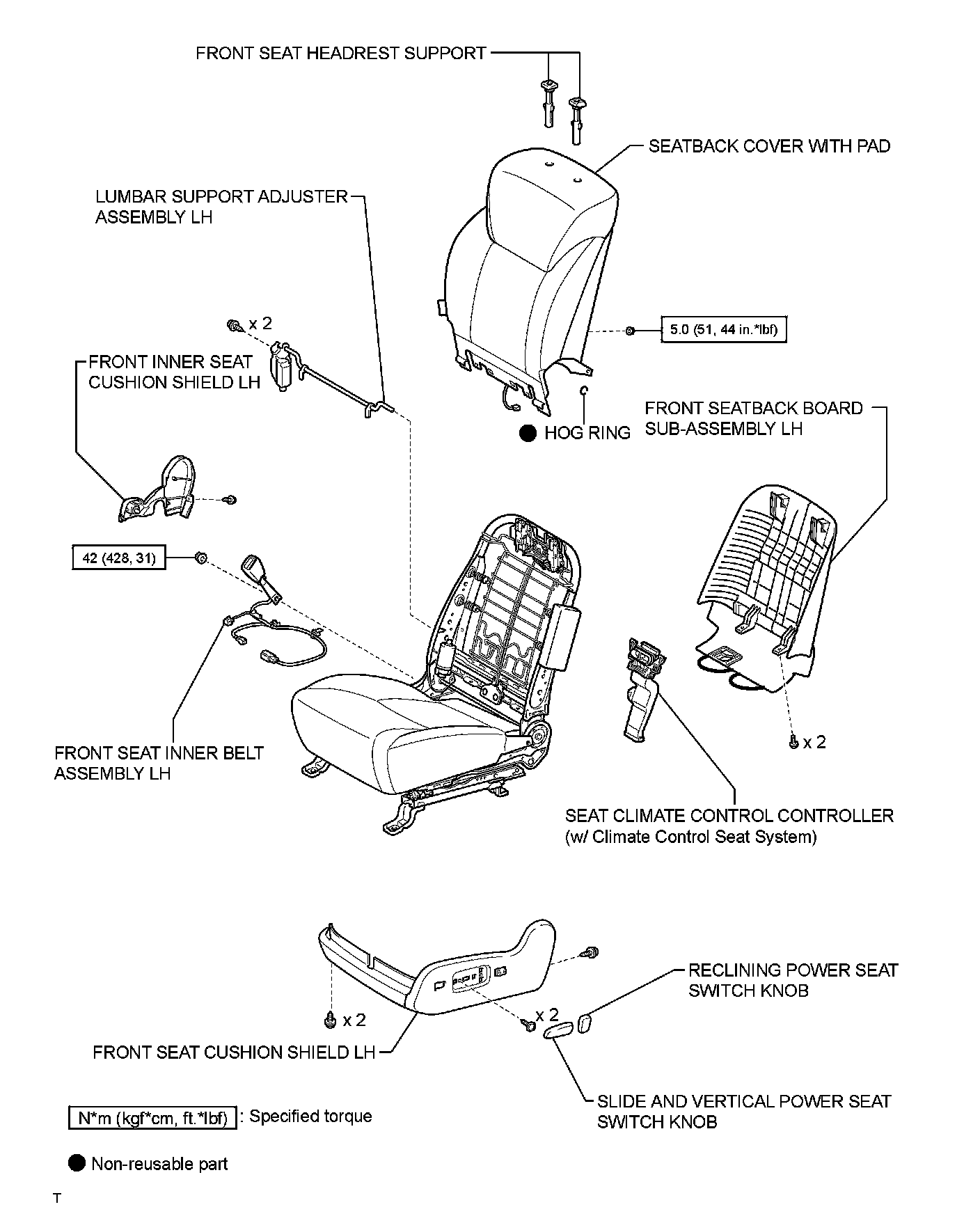

SEAT: LUMBAR SUPPORT ADJUSTER ASSEMBLY: COMPONENTS
