Installation

MIRROR (EXT): OUTER REAR VIEW MIRROR: INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

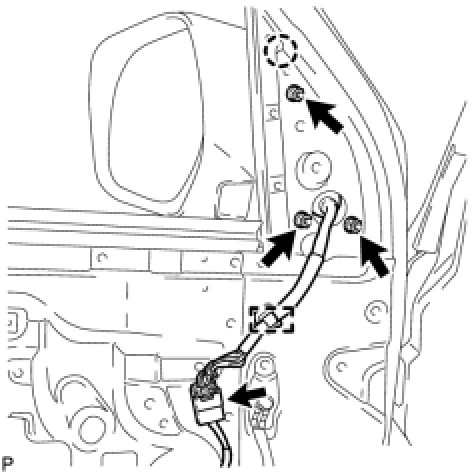

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
(a) Attach the claw to install the mirror.
(b) Install the 3 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(c) Attach the clamp.
(d) Connect the connector.
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY Reassembly

3. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH Reassembly

4. INSTALL FRONT UPPER ARMREST BASE PANEL Reassembly

5. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG Reassembly
