Installation

MIRROR (EXT): OUTER REAR VIEW MIRROR GLASS: INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR GLASS

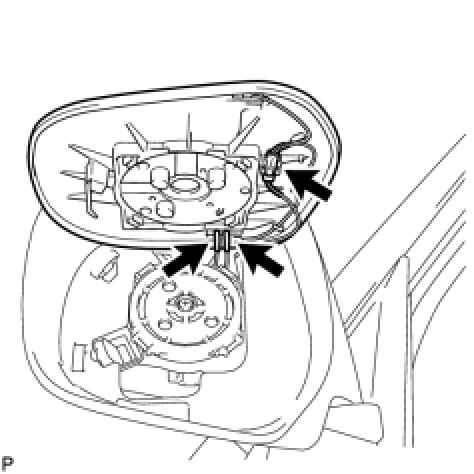

(a) Connect the 3 connectors.

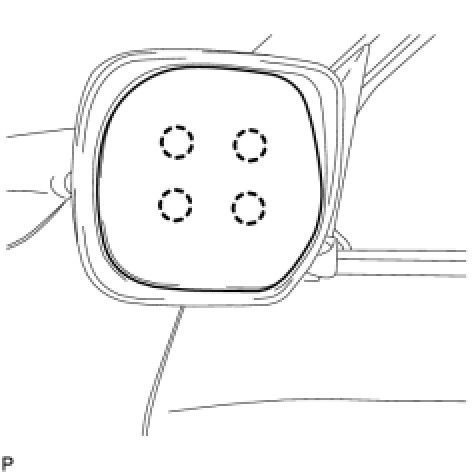

(b) Attach the 4 claws to install the mirror glass.
